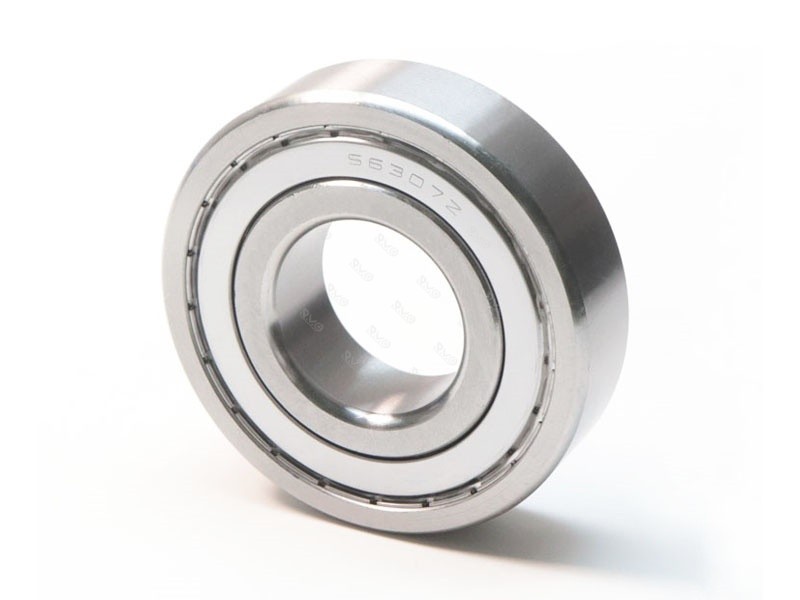

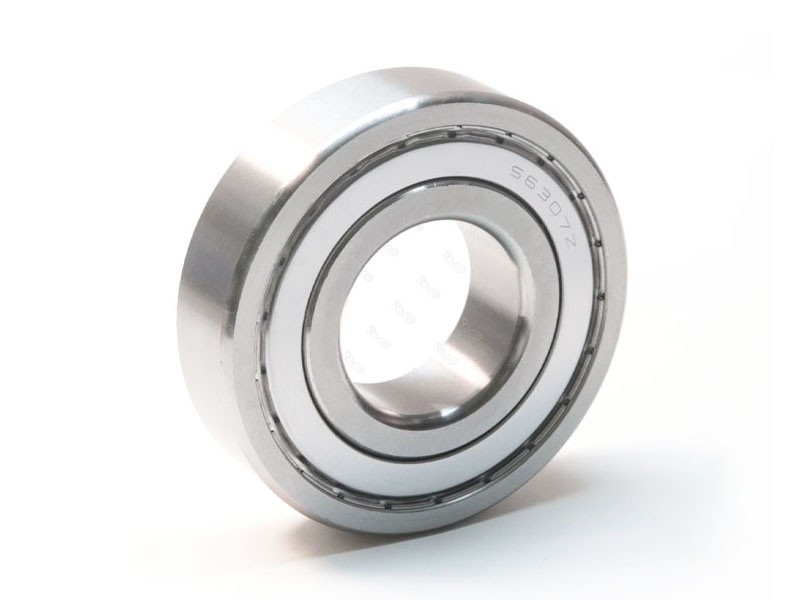

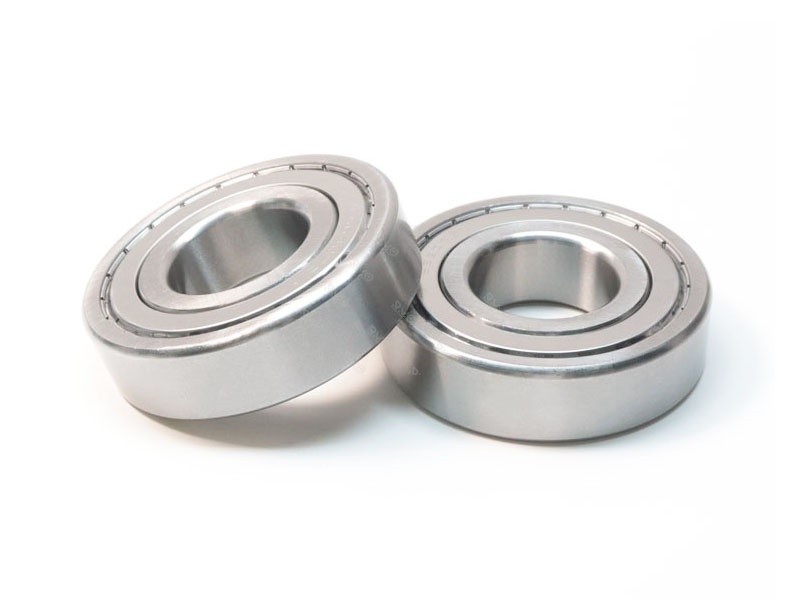

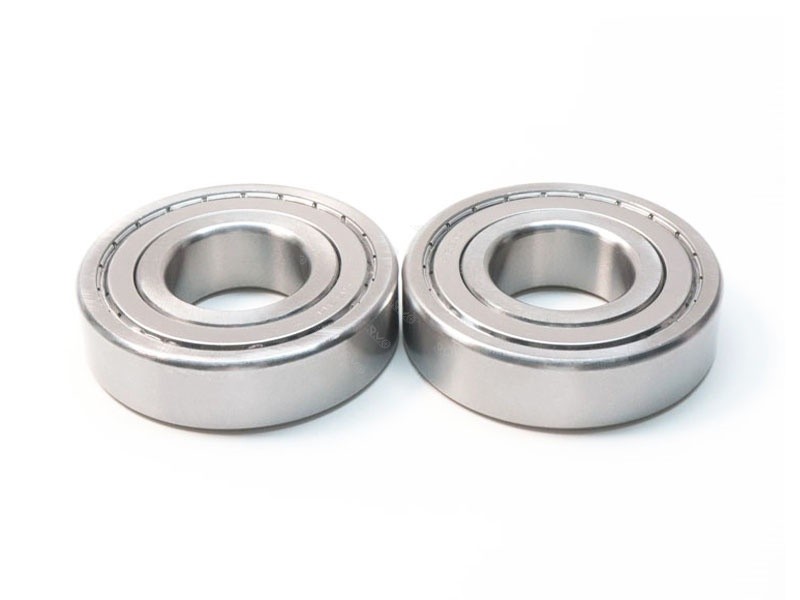

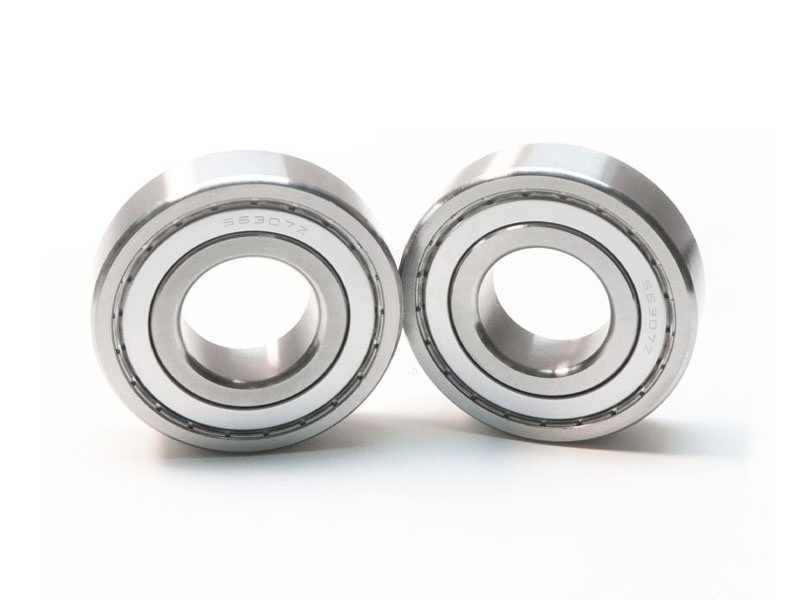

Stainless Steel S6307ZZ 35x80x21mm Deep Groove Ball Bearing
Item No :
S6307ZZSize (d*D*B) :
35x80x21mmLead Time :
3-5 DaysWeight :
0.481KGShipping Port :
GUANGZHOU, NINGBO, SHANGHAIMOQ :
10 pcsStainless Steel S6307ZZ 35x80x21mm Deep Groove Ball Bearing
⚙️Structural features:
The S6307ZZ bearing is equipped with sealing covers on both sides, which can prevent the leakage of lubricating oil and the entry of contaminants, effectively prolonging the service life of the bearing. The ring and rolling element materials use AISI SUS420C stainless steel that has undergone vacuum quenching and tempering treatment, while the cage and sealing ring frame materials adopt AISI304 stainless steel.
| Cage material | Steel |
| Branding | Famous Brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Material | Chrome Steel (Gcr15)or Stainless Steel etc. |
| Precision | ABEC-1 ABEC-3 ABEC-5 ABEC-7 |
| Clearance | C0 C3 |
| Vibration | Z1V1, Z2V2, Z3V3 |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% TT, or 30% TT In Advance ,70% TT After Finished Product |
| Service | Free Sample Can Be Provide |
Compared with ordinary bearing steel, S6307ZZ bearing has stronger rust and corrosion resistance. It can be used in an environment ranging from -30°C to 110°C and can resist corrosion caused by moisture and several other media. At the same time, this bearing has a deep bearing raceway groove, and the fit between the bearing raceway and the balls is extremely high. It has high mechanical strength and a large load capacity.
| Model No. | d | D | H | m | Model No. | d | D | H | m | |
| 6301ZZ | 12 mm | 37 mm | 12 mm | 64 g | 6313ZZ | 65 mm | 140 mm | 33 mm | 2.18 KG | |
| 6302ZZ | 15 mm | 42mm | 13 mm | 90 g | 6314ZZ | 70 mm | 150 mm | 35 mm | 2.6 KG | |
| 6303ZZ | 17 mm | 47 mm | 14 mm | 117 g | 6315ZZ | 75 mm | 160 mm | 37 mm | 3.23 KG | |
| 6304ZZ | 20 mm | 52 mm | 15 mm | 155 g | 6316ZZ | 80 mm | 170 mm | 39 mm | 3.82 KG | |
| 6305ZZ | 25 mm | 62 mm | 17 mm | 240 g | 6317ZZ | 85 mm | 180 mm | 41 mm | 4.33 KG | |
| 6306ZZ | 30 mm | 72 mm | 19 mm | 363 g | 6318ZZ | 90 mm | 190 mm | 43 mm | 5.53 KG | |
| 6307ZZ | 35 mm | 80 mm | 1 mm | 481 g | 6319ZZ | 95 mm | 200 mm | 45 mm | 7.14 KG | |
| 6308ZZ | 40 mm | 90 mm | 23 mm | 654 g | 6320ZZ | 100 mm | 215 mm | 47 mm | 7.78 KG | |
| 6309ZZ | 45 mm | 100 mm | 25 mm | 869 g | 6321ZZ | 105 mm | 225 mm | 49 mm | 8.25 KG | |
| 6310ZZ | 50 mm | 110 mm | 27 mm | 1.12 KG | 6322ZZ | 110 mm | 240 mm | 50 mm | 10.5 KG | |
| 6311ZZ | 55 mm | 120 mm | 29 mm | 1.43 KG | 6324ZZ | 120 mm | 260 mm | 55 mm | 12.7 KG | |
| 6312ZZ | 60 mm | 130 mm | 31 mm | 1.79 KG |

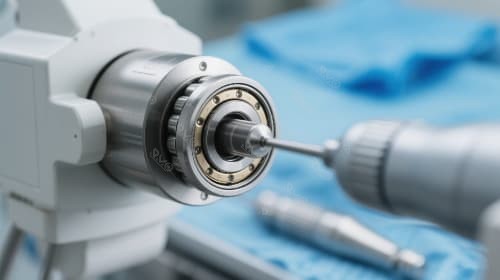

Due to its excellent performance, it is widely used in fields such as food processing, medical devices, pharmaceutical machinery, optical instruments, high-speed machine tools, high-speed motors, and printing machinery, etc.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
