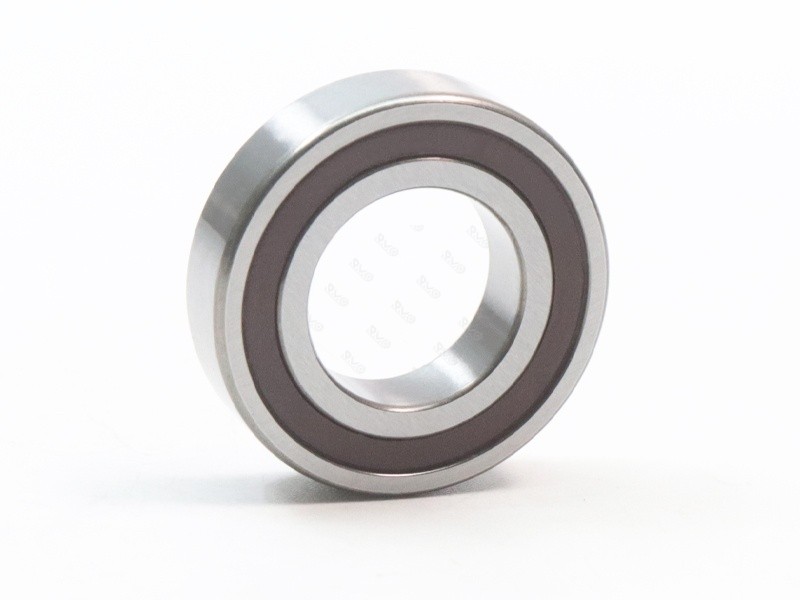

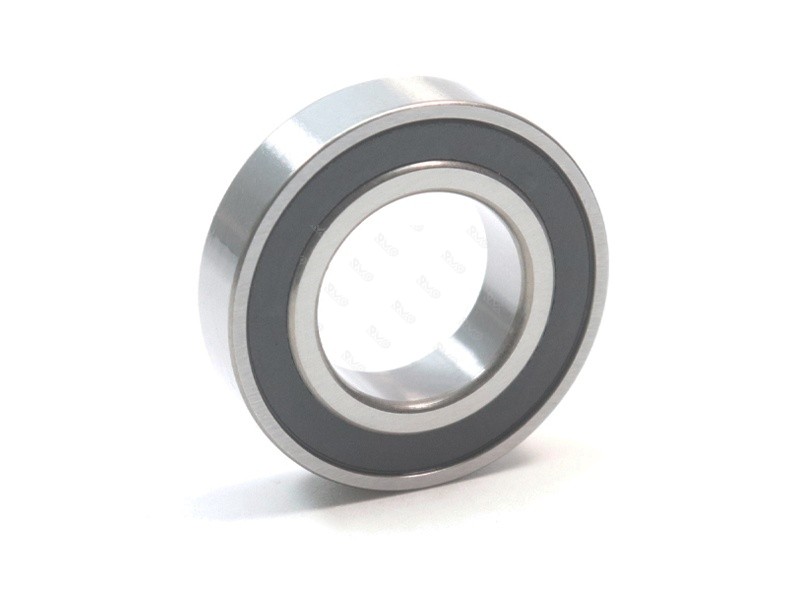

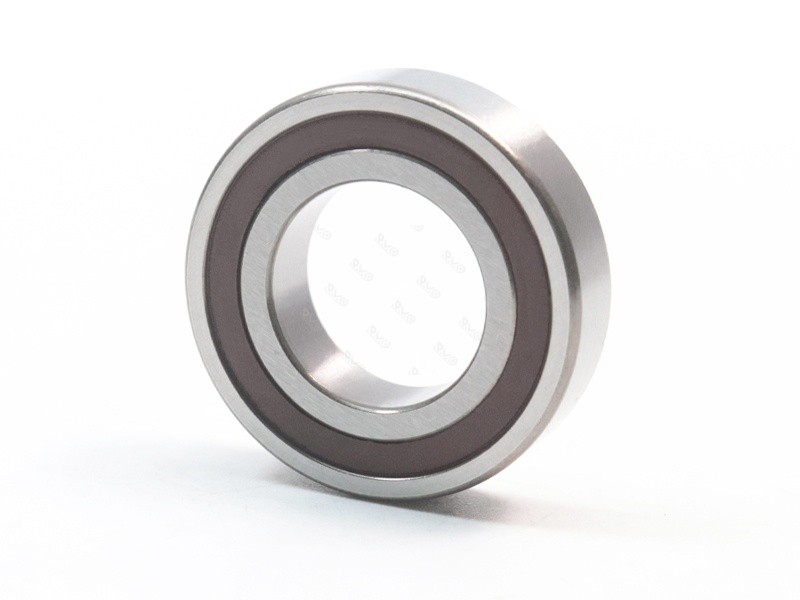

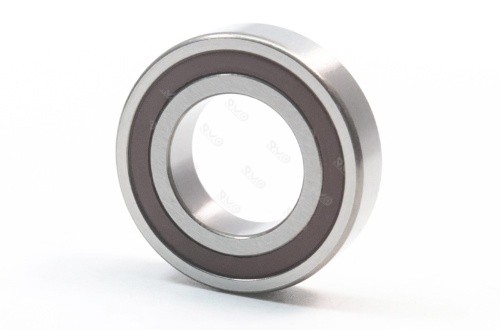

71902C-2RZ 7902C High-speed Sealed Angular Contact Ball Bearings
Item No :

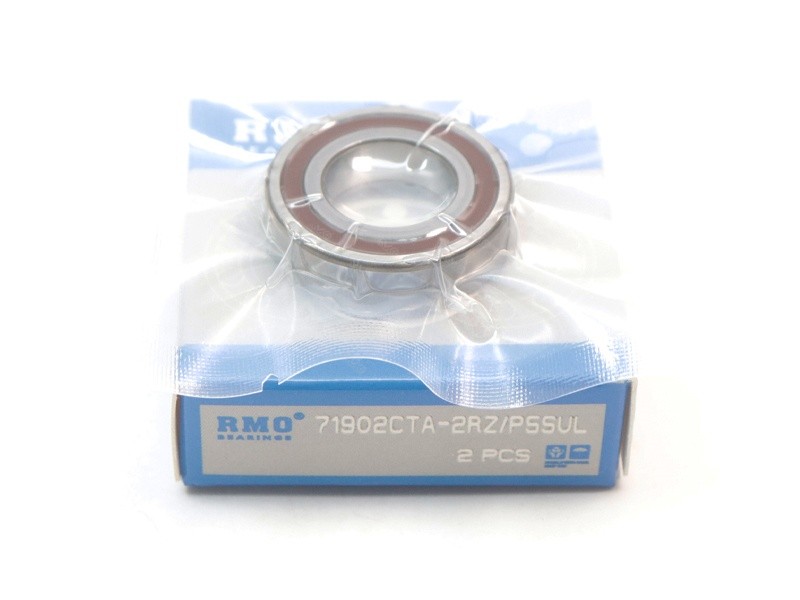

71902CTA-2RZ/P5SUL (7902C)Size (d*D*B) :
15x28x7mmLead Time :
3-5 daysWeight :
0.021KGShipping Port :
Guangzhou, Ningbo, ShanghaiMOQ :
50 pcs71902C-2RZ 7902C High-speed Sealed Angular Contact Ball Bearings
71902-2RZ is an angular contact ball bearing (the suffix “719” represents the single row angular contact series, ‘02’ indicates an inner diameter of 15 mm, and “2RZ” refers to double-sided rubber seals). It has an outer diameter of 28 mm, a width of 7 mm, and a contact angle of 15° (nominal angle).
⚙️Technical Parameters:
| Item No. | 71902CTA-2RZ/P5SUL (7902C) |
| Branding | famous brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Material | carbon steel, hybrid ceramic, full ceramic,GCR15,stainless steel (420 440C 304 316) |
| Lead Time | 3-5 days |
| Precision | p0 p6 p5 p4 |
| Clearance | C2 C0 C3 C4 |
| Vibration | Z1V1, Z2V2, Z3V3 |
| Cage material | Steel, nylon, copper |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% T/T, or 30% T/T In Advance ,70% T/T After Finished Product |

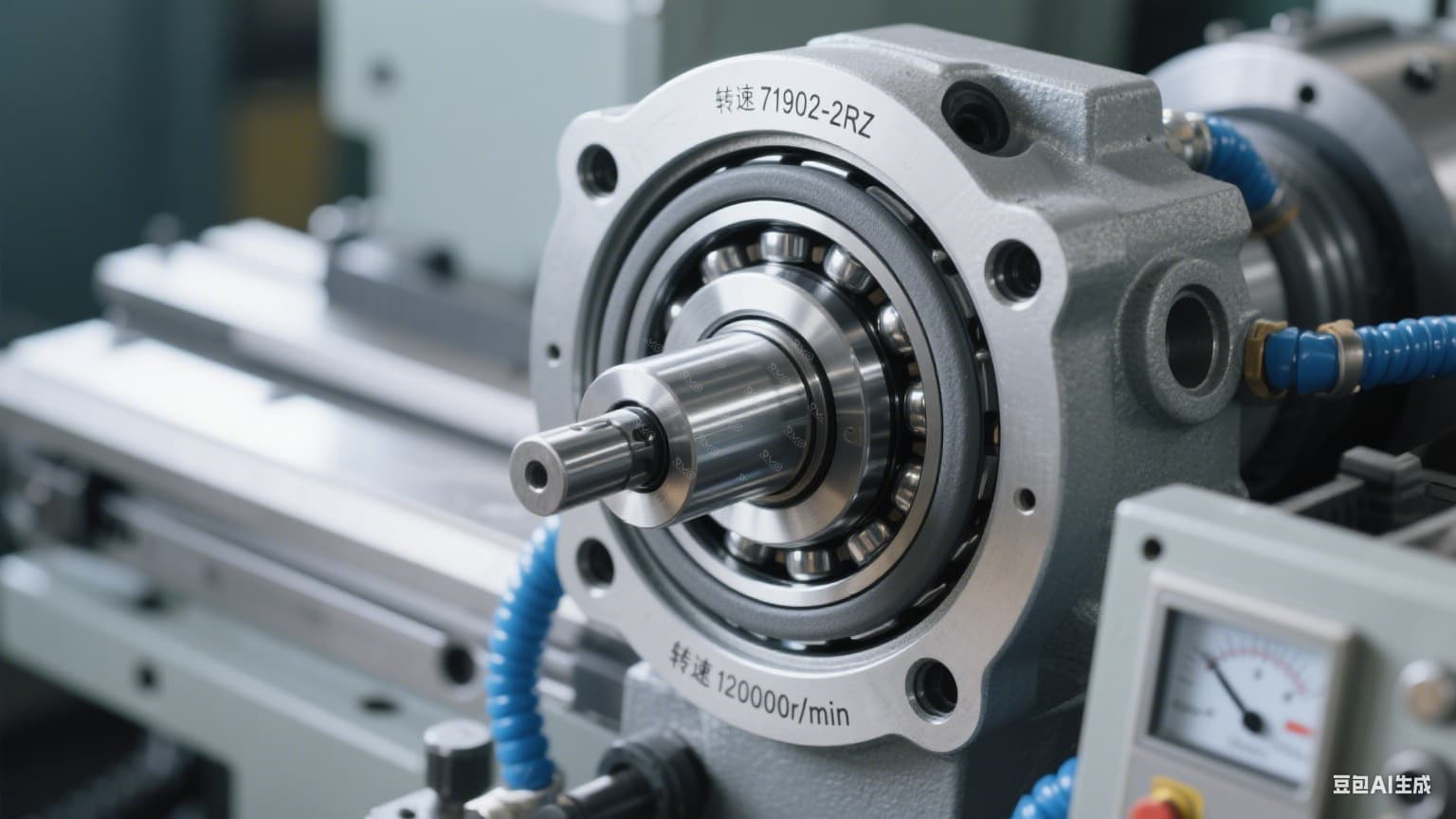

High-speed stability: The angular contact design and precision machining (radial runout ≤ 5 μm) enable a maximum operating speed of 18,000 rpm (grease lubrication), significantly higher than that of similarly sized deep groove ball bearings.
Excellent sealing: The 2RZ seal ring is made of nitrile rubber and tightly integrated with a metal skeleton, achieving an IP54 protection rating (resistant to splashing water and dust).
Composite load-bearing capacity: It can withstand both radial loads (basic rated dynamic radial load of 3.6 kN) and unidirectional axial loads (basic rated dynamic axial load of 2.1 kN), making it suitable for transmission structures subjected to both radial and axial forces (such as lead screws, spindles, etc.).
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
