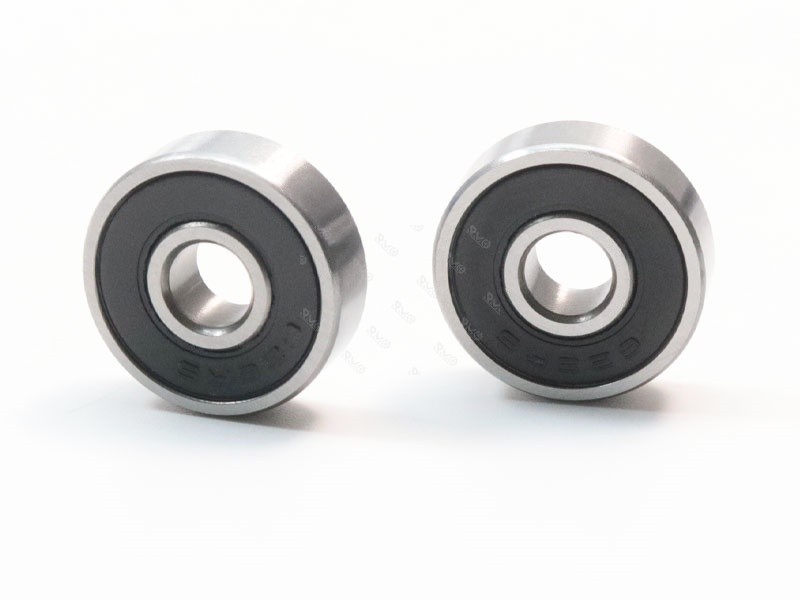

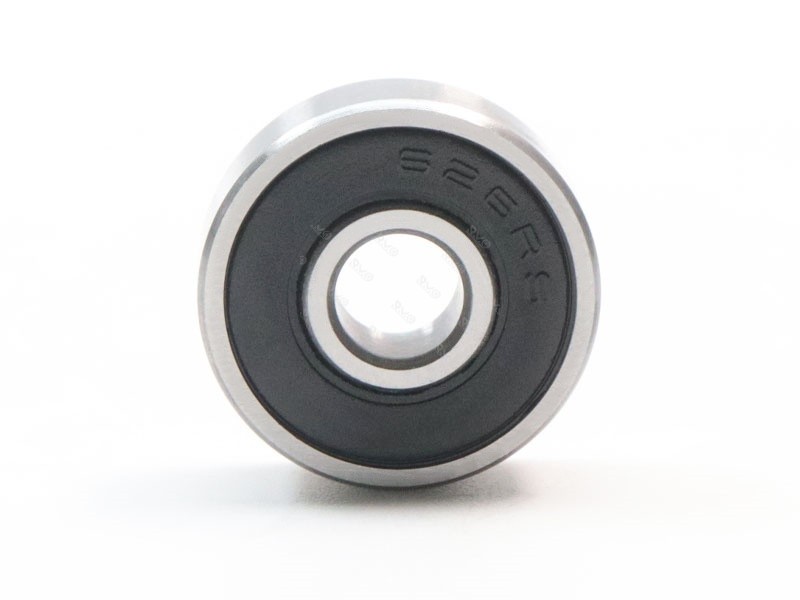

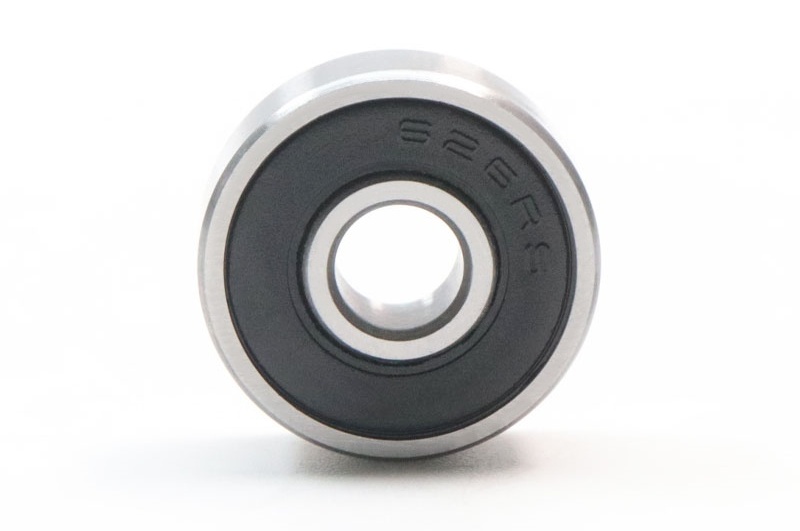

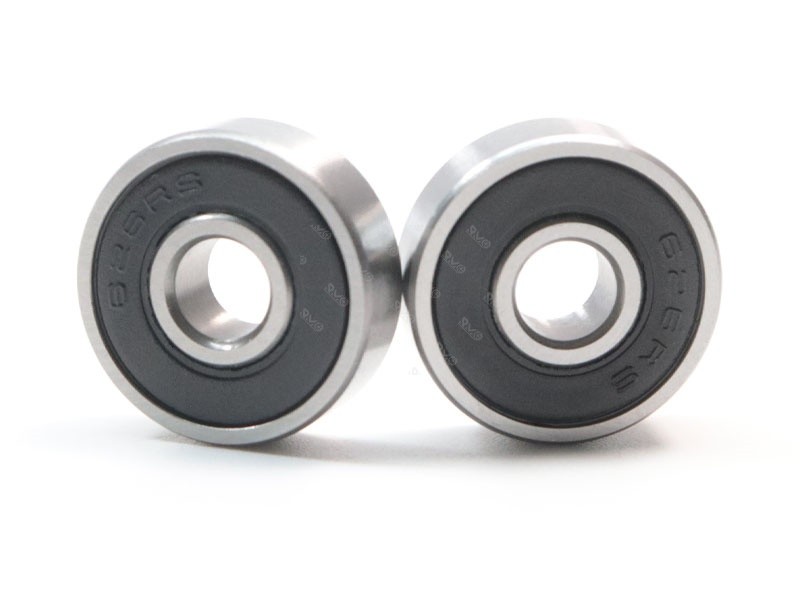

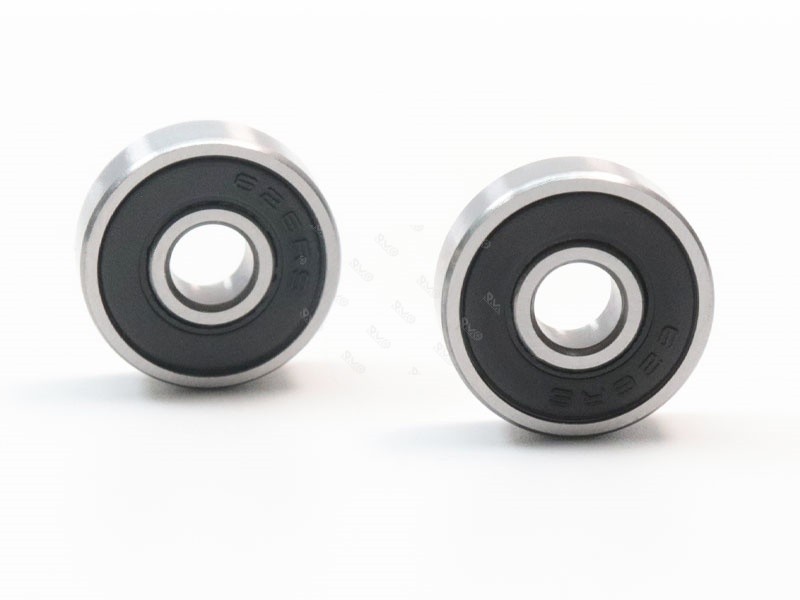

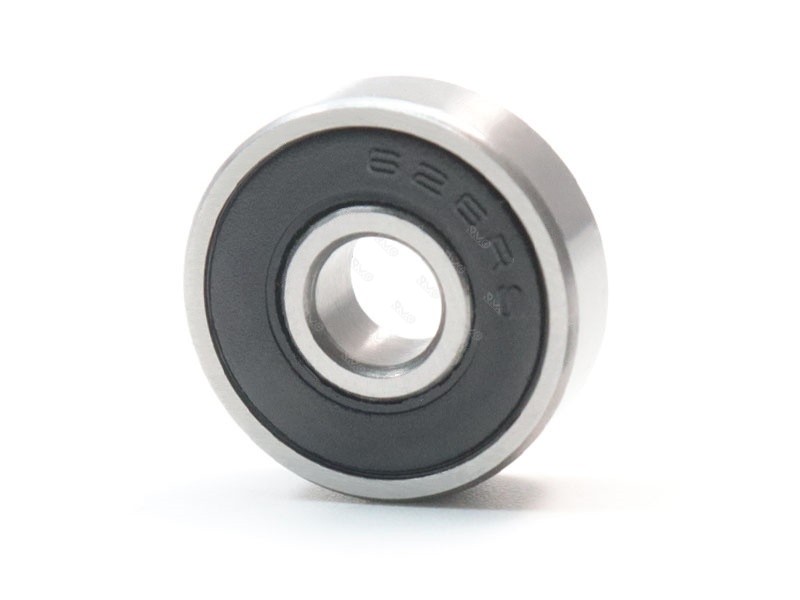

The 626 2RS bearing is suitable for various light-load and high-speed applications, and is commonly found in small motors, precision instruments and other equipment.
Item No :
626 2RSSize (d*D*B) :
6x19x6mmMaterial :
chrome steelPrecision :
P0Lead Time :
3-5 working days626 2RS Miniature Single Row Deep Groove Ball Bearing
⚙️core parameters:
The parameters of this model bearing of different brands may vary slightly.
Material: The rings and balls are made of GCr15 chromium steel, and the cage is mostly made of stamped steel; some stainless steel versions can be adapted for corrosive environments.
Load capacity: The basic rated dynamic load is approximately 1.99 - 2.3 KN, and the basic rated static load is approximately 0.72 - 0.89 KN. It mainly withstands radial loads, and can also withstand a small amount of bidirectional axial loads.
Speed and temperature: The maximum speed under grease lubrication is usually 23000 - 38000 r/min, and up to 38000 - 45000 r/min under oil lubrication; the working temperature range is generally - 20℃ - 120℃.
High maintenance resistance: The double-sided rubber sealing structure significantly reduces the wear of the internal raceway and steel balls by external contaminants. It is pre-filled with lubricating grease upon leaving the factory, and does not require frequent replenishment of lubrication under normal operating conditions, resulting in a long service life.
Wide application scenarios: As a miniature bearing, its compact size can easily be embedded in equipment with limited space; at the same time, the material and sealing design enable it to be suitable for various conventional environments such as household appliances, industrial small machinery, and others.
Optional precision versions: The regular products are mostly of ABEC - 1 (ISO P0) precision, and there are also some high-precision versions such as ABEC - 3, etc. With high-precision steel balls and finely ground raceways, the vibration and noise during operation are extremely low, meeting the high-precision and quiet requirements of scenarios such as miniature motors and medical tools.

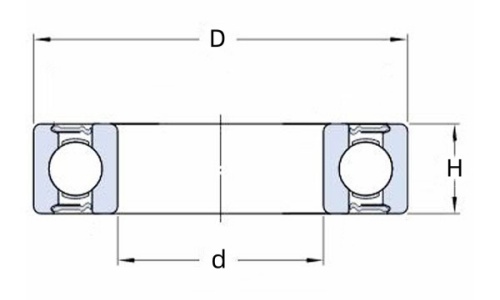

| Model No. | d | D | H | m |
| 623-2RS | 3 mm | 10 mm | 4 mm | 0.001 KG |
| 624-2RS | 4 mm | 13 mm | 5 mm | 0.004 KG |
| 625-2RS | 5 mm | 16 mm | 5 mm | 0.01 KG |
| 626-2RS | 6 mm | 19 mm | 6 mm | 0.01 KG |
| 627-2RS | 7 mm | 22 mm | 7 mm | 0.01 KG |
| 628-2RS | 8 mm | 24 mm | 8 mm | 0.02 KG |
| 629-2RS | 9 mm | 26 mm | 8 mm | 0.02 KG |
This bearing boasts a compact size and reliable sealing performance, making it highly versatile. In the fields of home appliances and consumer electronics, it can be used in 3D printers, small fans, miniature water pumps, etc.; in the industrial sector, it is suitable for small motors, bonding machines, flow meters, etc.; in high-end applications, the high-precision version can also be used in medical handheld devices, small servo motors, vehicle lighting, etc., for equipment that requires stability and low noise.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
