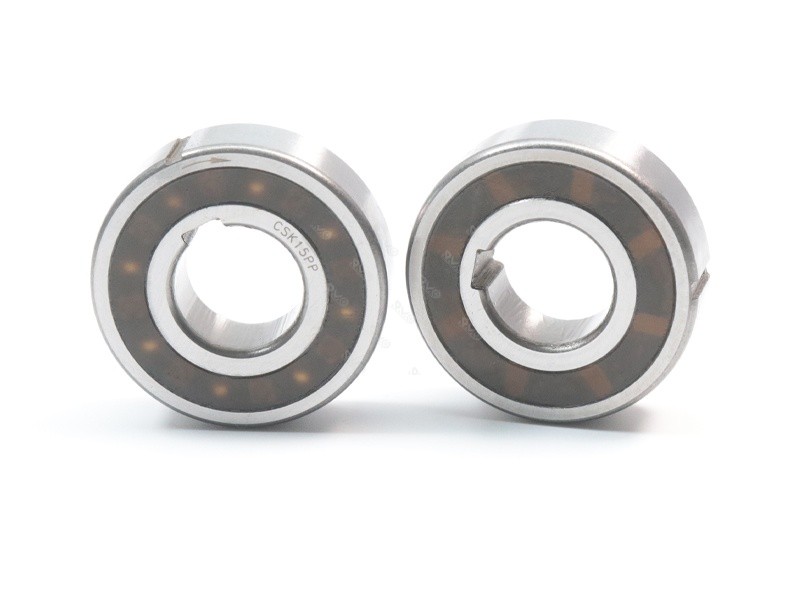

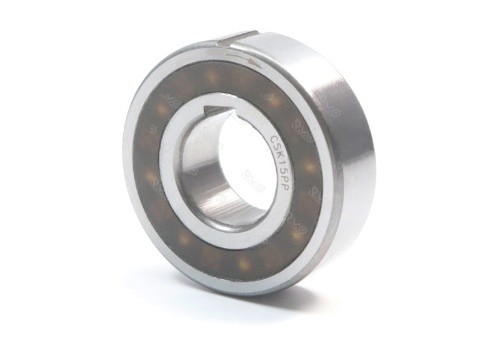

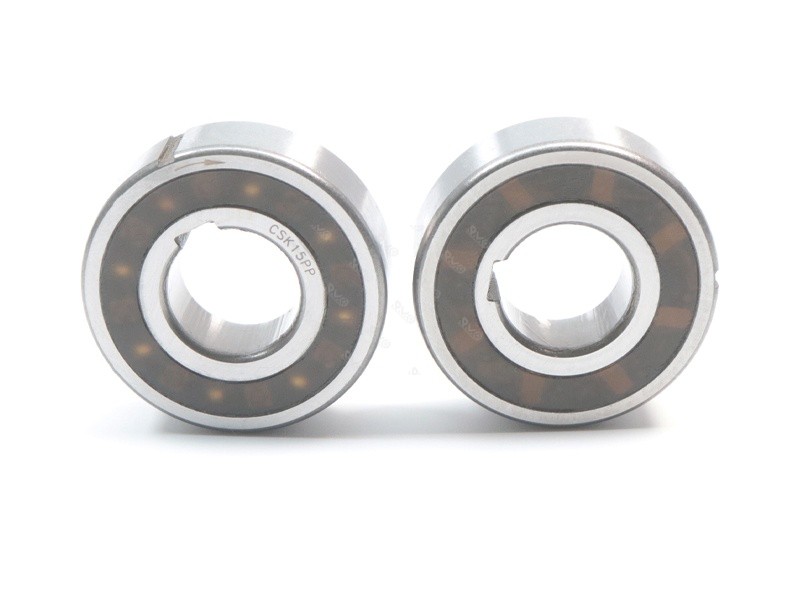

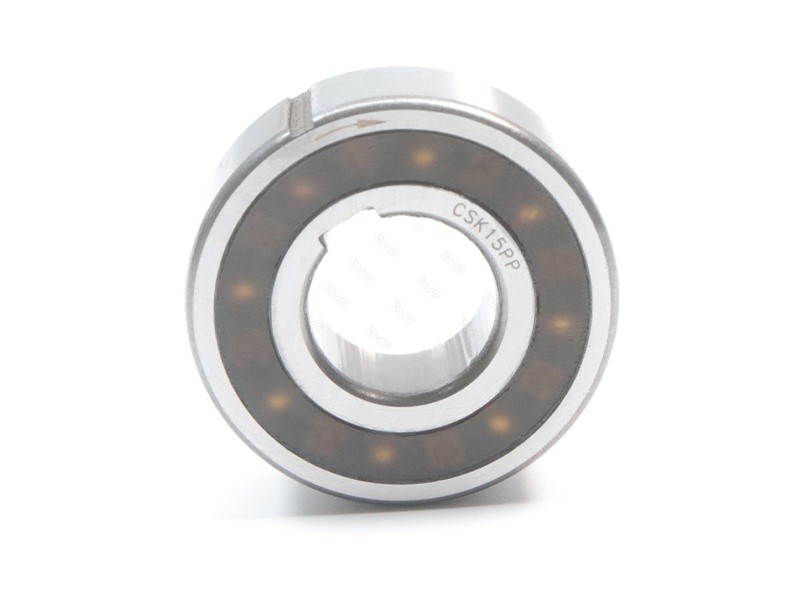

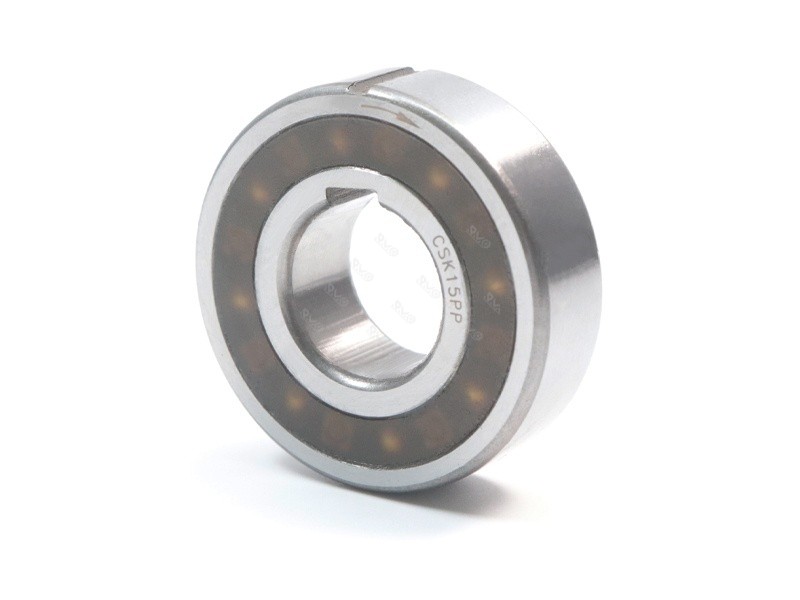

Nylon Cage CSK-PP Series Bearing CSK15PP One Way Clutch Bearing
Item No :
CSK15PPSize (d*D*B) :
15x35x11mmLead Time :
3-5 daysWeight :
0.06KGShipping Port :
GuangZhou, NingBo, ShangHaiMOQ :
20 pcsStructural features: The CSK series one-way bearings are a combination of wedge-block type overrunning clutches and deep groove ball bearings. The inner and outer rings of CSK15PP have keyways, which facilitate the connection with the shaft and the housing through keys for torque transmission.
⚙️Technical Parameters:
| Item No. | CSK15PP |
| Branding | famous brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Material | carbon steel, hybrid ceramic, full ceramic,GCR15,stainless steel (420 440C 304 316) |
| Lead Time | 3-5 days |
| Precision | p0 p6 p5 p4 |
| Clearance | C2 C0 C3 C4 |
| Vibration | Z1V1, Z2V2, Z3V3 |
| Cage material | Steel, nylon, copper |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% T/T, or 30% T/T In Advance ,70% T/T After Finished Product |
Material: The bearings are made of GCr15 chromium steel, which has high hardness and wear resistance, ensuring the service life and reliability of the bearings.
Sealing type: The sealing type is 2RS, which is a rubber seal, effectively preventing dust, impurities and moisture from entering the interior of the bearings.
Precision grade: The precision grade is P0, which is the standard precision grade of the bearings, suitable for most general industrial applications.
Working principle: As a one-way clutch bearing, it allows torque to be transmitted between the shaft and the housing in one direction. When reversed, it operates in a neutral state, achieving the function of one-way rotation.
Performance parameters: The dynamic load of the bearing is 7.4 KN, and the static load is 3.42 KN.

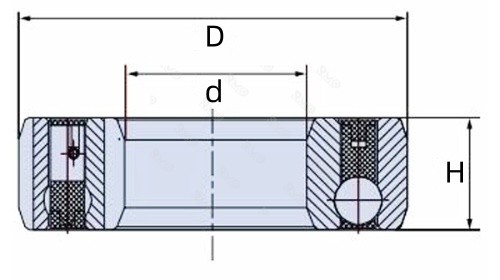

| Model No. | d | D | H | m |
| CSK 15 PP | 15 mm | 35 mm | 11 mm | 0.06 KG |
| CSK 17 PP | 17 mm | 40 mm | 12 mm | 0.07 KG |
| CSK 20 PP | 20 mm | 47 mm | 14 mm | 0.11 KG |
| CSK 25 PP | 25 mm | 52 mm | 15 mm | 0.14 KG |
| CSK 30 PP | 30 mm | 62 mm | 16 mm | 0.21 KG |
| CSK 35 PP | 35 mm | 72 mm | 17 mm | 0.3 KG |
| CSK 40 PP | 40 mm | 80 mm | 22 mm | 0.5 KG |
⚙️Application fields:
Widely used in agricultural machinery, industrial washing machines, conveying equipment, electric motors, CNC machines, trucks, mining equipment, trains, robots, dental equipment, elevators, rolling mills, ship rudder shafts and crushers, etc., in equipment that requires one-way rotation.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
