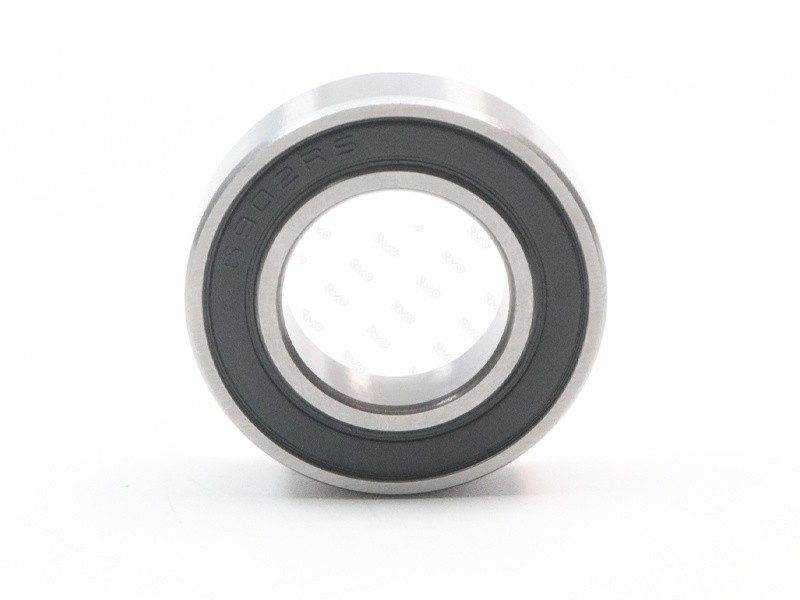

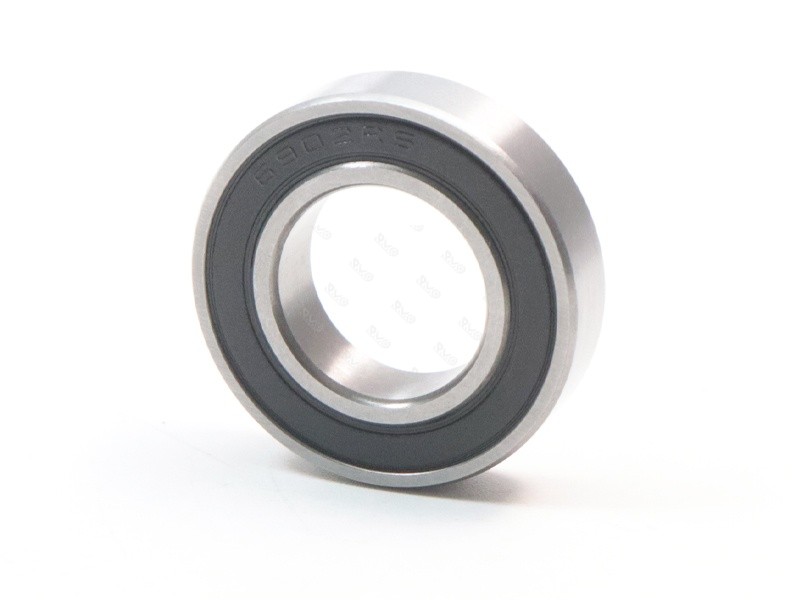

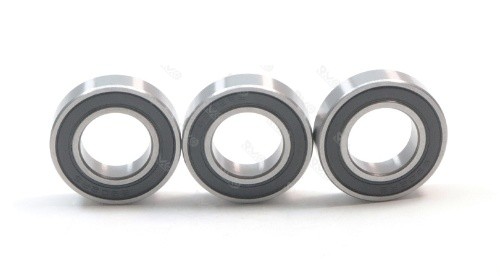

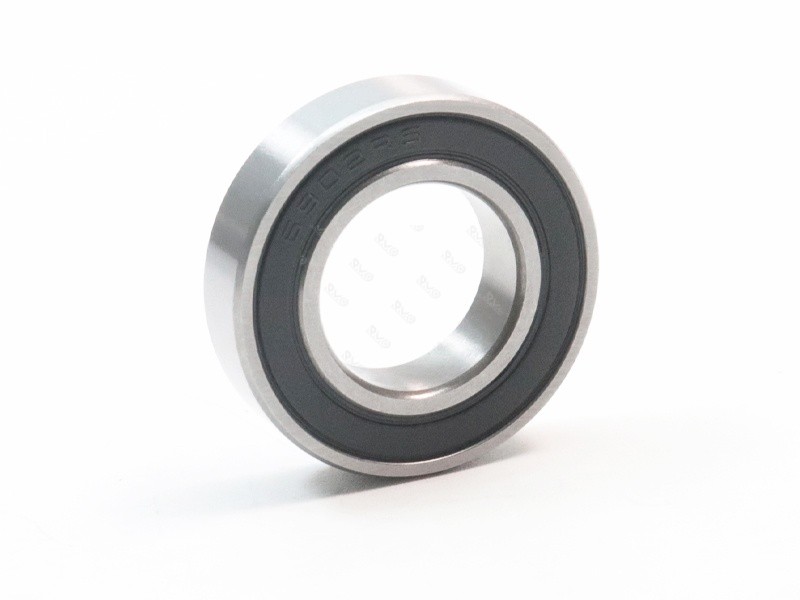

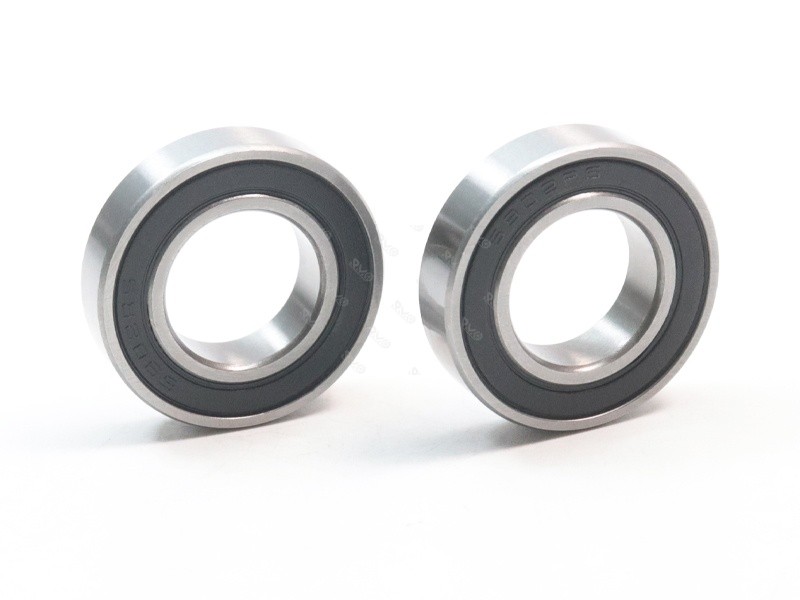

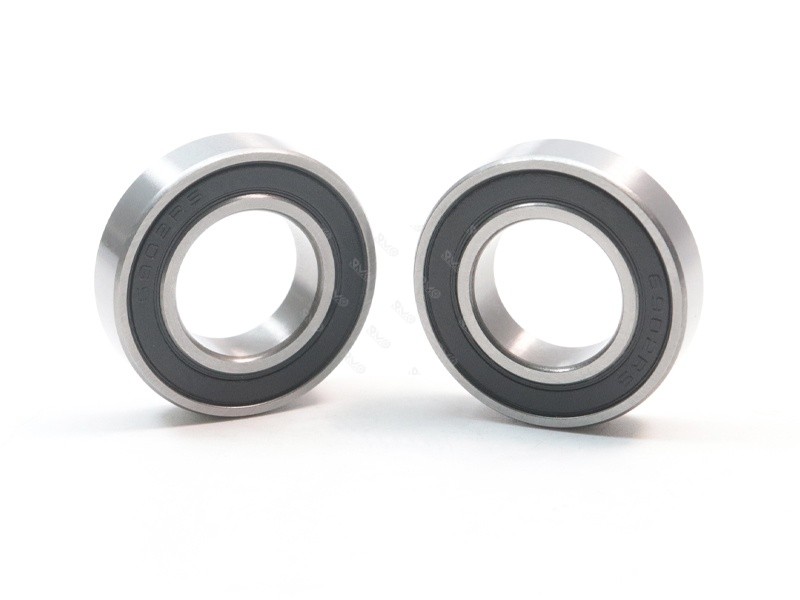

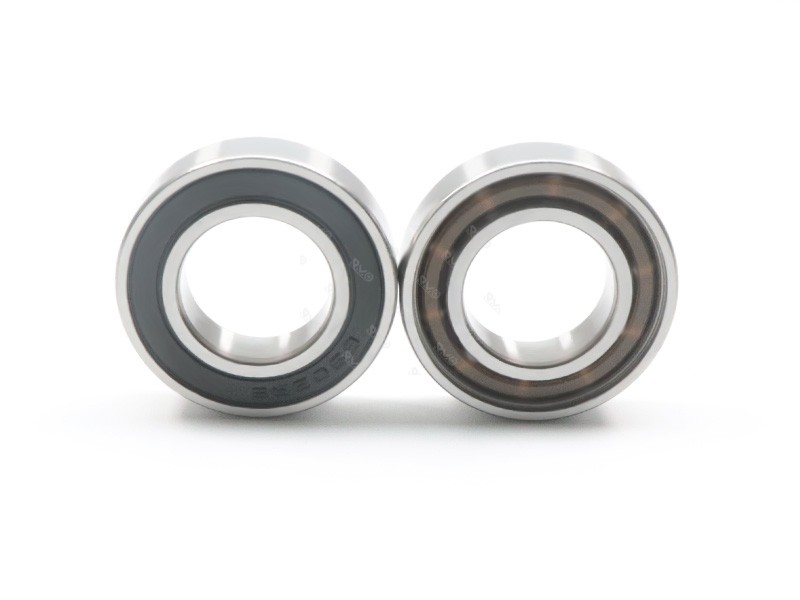

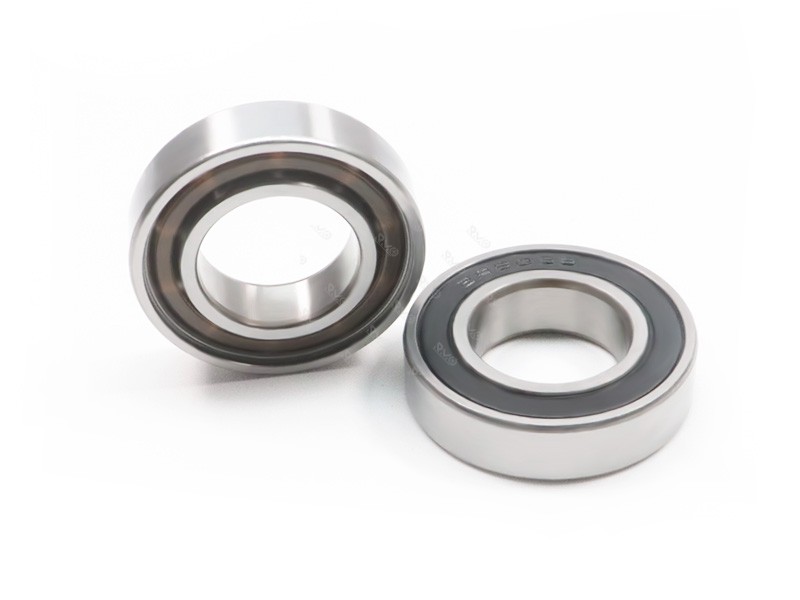

High Precision 6902 2RS Chrome Steel Single Row Thin Wall Deep Groove Ball Bearing
Item No :
6902-2RSSize (d*D*B) :
15x28x7mmLead Time :
3-5 daysWeight :
0.016KGShipping Port :
Guangzhou, Ningbo, ShanghaiMOQ :
100 pcs
| Item No. | 6902 2RS |
| Branding | famous brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Material | carbon steel, hybrid ceramic, full ceramic,GCR15,stainless steel (420 440C 304 316) |
| Lead Time | 3-5 days |
| Precision | p0 p6 p5 p4 |
| Clearance | C2 C0 C3 C4 |
| Vibration | Z1V1, Z2V2, Z3V3 |
| Cage material | Steel, nylon, copper |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% T/T, or 30% T/T In Advance ,70% T/T After Finished Production |
| Model No. | d | D | H | m | Model No. | d | D | H | m | |
| 6900RS | 10 mm | 22 mm | 6 mm | 0.01 KG | 6912RS | 60 mm | 85 mm | 13 mm | 0.19KG | |
| 6901RS | 12 mm | 24 mm | 6 mm | 0.01 KG | 6913RS | 65 mm | 90 mm | 13 mm | 0.21 KG | |
| 6902RS | 15 mm | 28 mm | 7 mm | 0.02 KG | 6914RS | 70 mm | 100 mm | 16 mm | 0.34 KG | |
| 6903RS | 17 mm | 30 mm | 7 mm | 0.02 KG | 6915RS | 75 mm | 105 mm | 16 mm | 0.36 KG | |
| 6904RS | 20 mm | 37 mm | 9 mm | 0.04 KG | 6916RS | 80 mm | 110 mm | 16 mm | 0.38 KG | |
| 6905RS | 25 mm | 42 mm | 9 mm | 0.04 KG | 6917RS | 85 mm | 120 mm | 18 mm | 0.53 KG | |
| 6906RS | 30 mm | 47 mm | 9 mm | 0.05 KG | 6918RS | 90 mm | 125 mm | 18 mm | 0.58 KG | |
| 6907RS | 35 mm | 55 mm | 10 mm | 0.08 KG | 6919RS | 95 mm | 130 mm | 18 mm | 0.55 KG | |
| 6908RS | 40 mm | 62 mm | 12 mm | 0.11 KG | 6920RS | 100 mm | 140 mm | 20 mm | 0.79 KG | |
| 6909RS | 45 mm | 68 mm | 12 mm | 0.13 KG | 6921RS | 105 mm | 145 mm | 20 mm | 0.82 KG | |
| 6910RS | 50 mm | 72 mm | 12 mm | 0.14 KG | 6922RS | 110 mm | 150 mm | 20 mm | 0.85 KG | |
| 6911RS | 55 mm | 80 mm | 13 mm | 0.18 KG | 6924 | 120 mm | 165 mm | 22 mm | 1.15 KG |

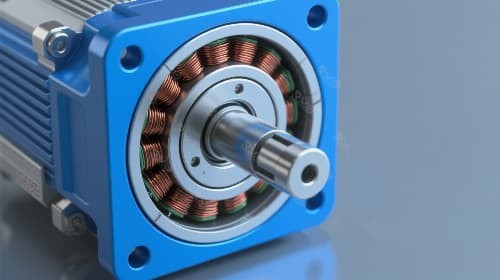

Stepper Motor

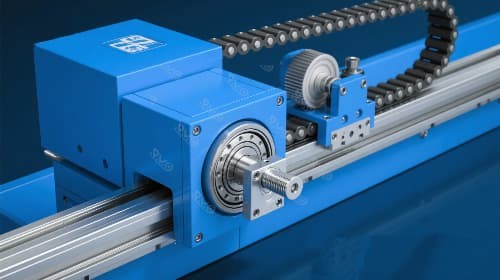

Scanning equipment
Laser Engraving Machines
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
