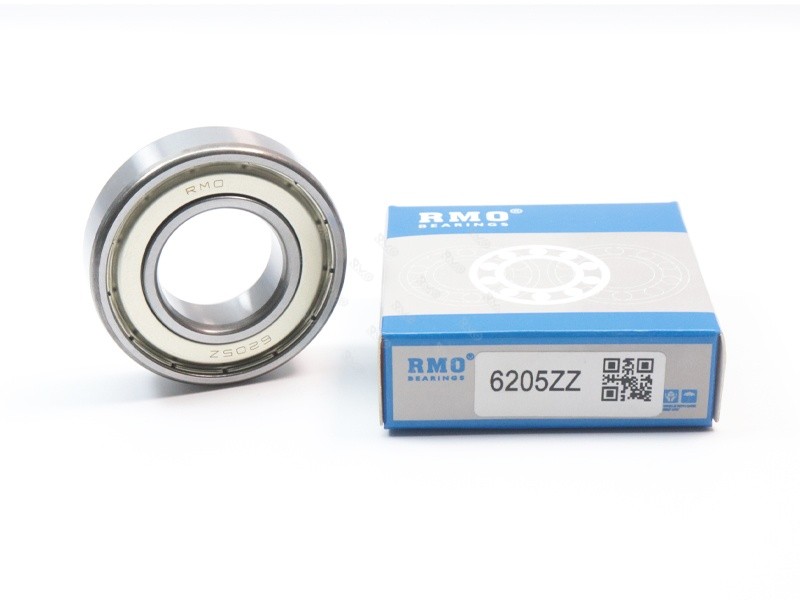

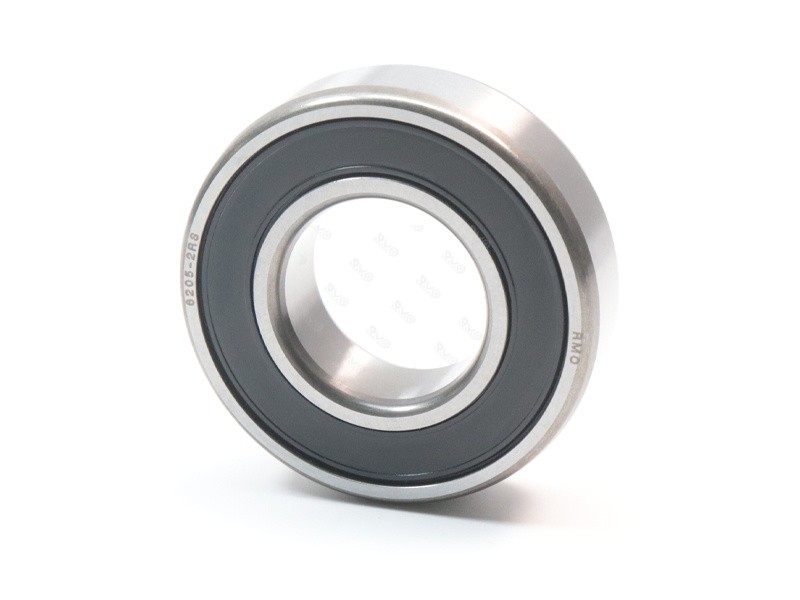

6205 High Precision Bearings RMO Deep Groove Ball Bearing
Item No :
6205-2RS 6205ZZSize (d*D*B) :
25x52x15mmLead Time :
3-5 DaysWeight :
0.13KGShipping Port :
GUANGZHOU, NINGBO, SHANGHAIMOQ :
50pcs6205 High Precision Bearings RMO Deep Groove Ball Bearing
⚙️Structural features:
It features a simple, universal and sturdy design. The inner and outer rings of the bearing are both composed of deep groove spherical rollers. There are a row of rollers arranged radially and axially on the inner and outer rings respectively. This structure results in low friction resistance, high rotational speed, the ability to withstand radial loads and bidirectional axial loads, easy installation, and low maintenance requirements.
| Parameter | Detailed Information |
| Model | 6205-2RS 6205ZZ |
| Precision | p0 p6 p5 p4 |
| Clearance | C2 C0 C3 C4 |
| Vibration | Z1V1, Z2V2, Z3V3 |
| Cage material | Steel, nylon, copper |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment |
100% T/T, or 30% T/T In Advance ,70% T/T After Finished Production |
It has a high load capacity, excellent shock resistance and good wear resistance. When subjected to heavy loads, it can maintain a good rolling state, thereby improving the operational efficiency of the equipment.

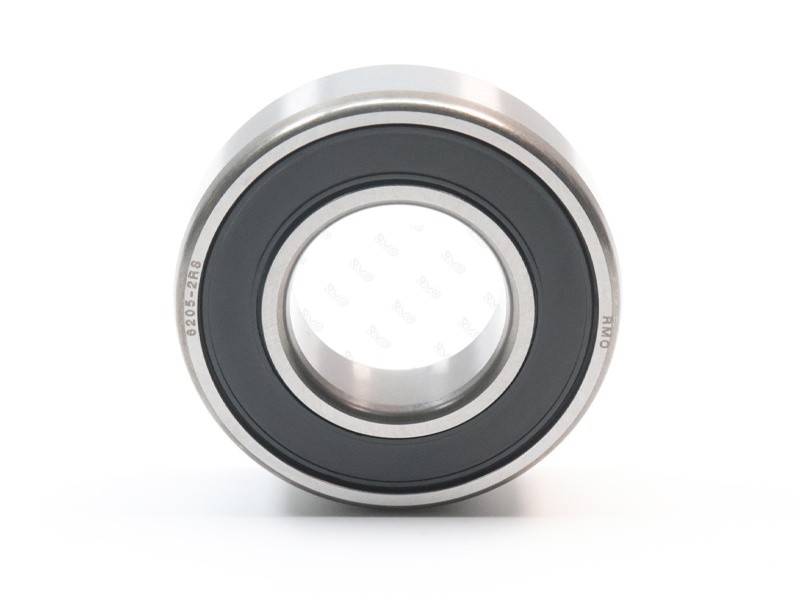

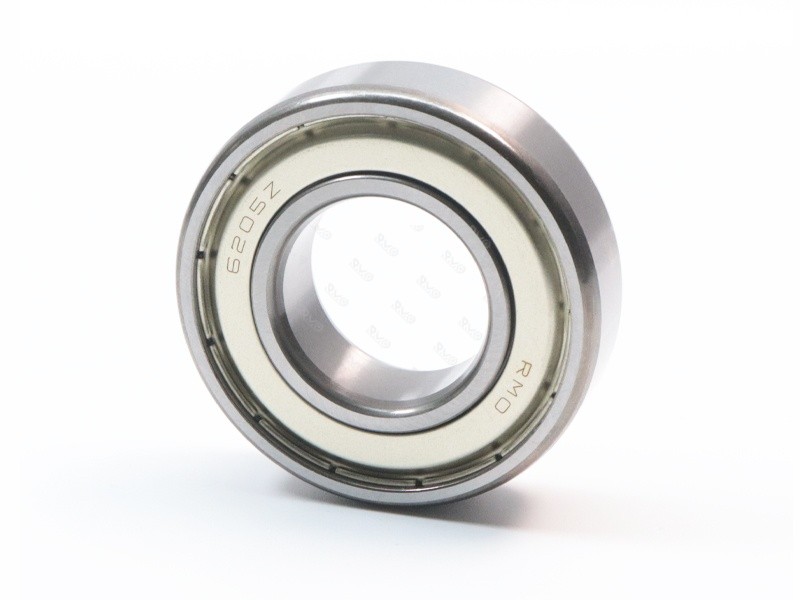

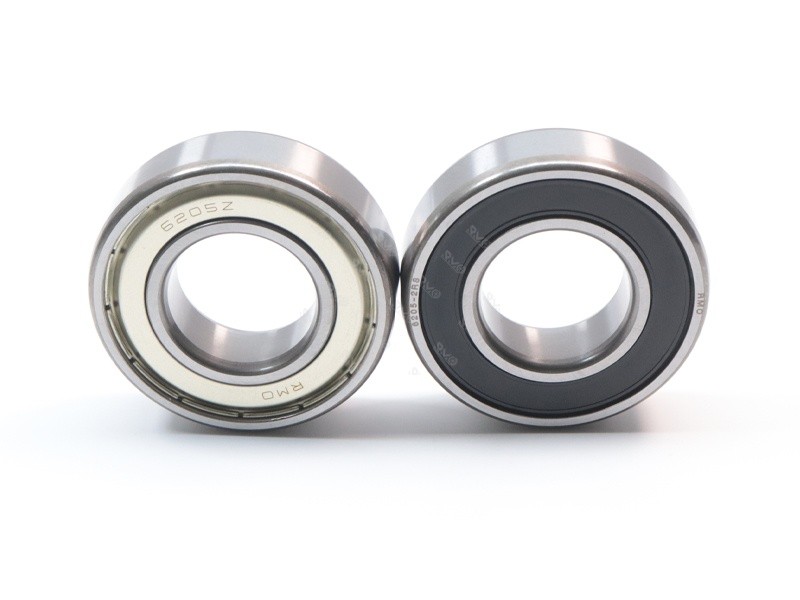

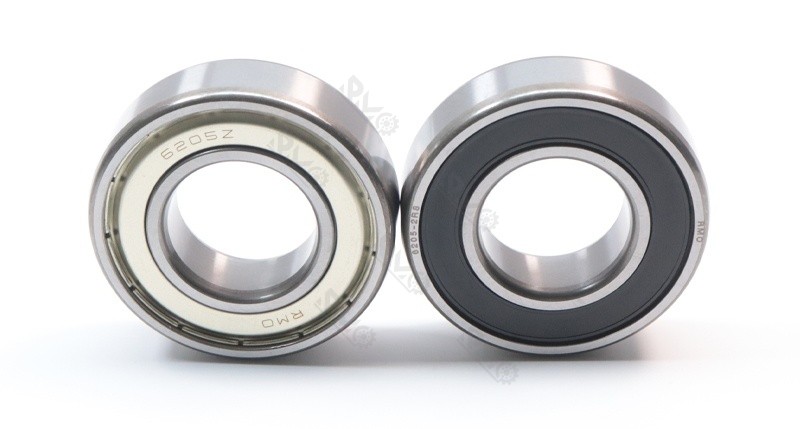

It includes open type and sealed type. Open type bearings can add lubricating grease or other substances as needed according to the usage environment. Sealed type bearings have already been filled with lubricating grease when manufactured and do not require frequent maintenance. They are suitable for some harsh working environments.

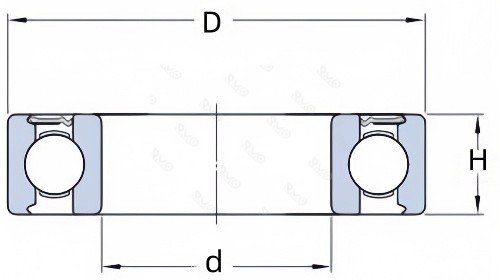

| Model No. | d | D | H | m | Model No. | d | D | H | m | |
| 6200RS | 10 mm | 30 mm | 9 mm | 0.03 KG | 6211RS | 55 mm | 100 mm | 21 mm | 0.61 KG | |
| 6201RS | 12 mm | 32 mm | 10 mm | 0.04 KG | 6212RS | 60 mm | 110 mm | 22 mm | 0.81 KG | |
| 6202RS | 15 mm | 35 mm | 11 mm | 0.05 KG | 6213RS | 65 mm | 120 mm | 23 mm | 1.05 KG | |
| 6203RS | 17 mm | 40 mm | 12 mm | 0.06 KG | 6214RS | 70 mm | 125 mm | 24 mm | 1.12 KG | |
| 6204RS | 20 mm | 47 mm | 14 mm | 0.104KG | 6215RS | 75 mm | 130 mm | 25 mm | 1.2 KG | |
| 62/22RS | 22 mm | 50 mm | 14 mm | 0.12 KG | 6216RS | 80 mm | 140 mm | 26 mm | 1.46 KG | |
| 6205RS | 25 mm | 52 mm | 15 mm | 0.13 KG | 6217RS | 85 mm | 150 mm | 28 mm | 1.84 KG | |
| 62/28RS | 28 mm | 58 mm | 16 mm | 0.17 KG | 6218RS | 90 mm | 160 mm | 30 mm | 2.63 KG | |
| 6206RS | 30 mm | 62 mm | 16 mm | 0.2 KG | 6219RS | 95 mm | 170 mm | 32 mm | 2.19 KG | |
| 62/32RS | 32 mm | 65 mm | 17 mm | 0.23 KG | 6220RS | 100 mm | 180 mm | 34 mm | 3.15 KG | |
| 6207RS | 35 mm | 72 mm | 17 mm | 0.29 KG | 6221RS | 105 mm | 190 mm | 36 mm | 3.7 KG | |
| 6208RS | 40 mm | 80 mm | 18 mm | 0.38 KG | 6222RS | 110 mm | 200 mm | 38 mm | 4.45 KG | |
| 6209RS | 45 mm | 85 mm | 19 mm | 0.42 KG | 6224RS | 120 mm | 215 mm | 40 mm | 5.26 KG | |
| 6210RS | 50 mm | 90 mm | 20 mm | 0.47 KG |
It is widely used in various mechanical equipment, For example, it can be used for the rotating parts of heavy machinery such as engines and transmissions of automobiles, machine tools, metallurgical equipment, etc., the support and transmission of power equipment such as wind power generation and hydropower generation, as well as the rotating parts of construction machinery such as excavators and loaders, etc.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
