Similar to standard single-row deep groove ball bearings, it is composed of components such as inner ring, outer ring, steel balls and cage.
Item No :
6205ZZC4S2Size (d*D*B) :
25x52x15mmLead Time :
3-5 daysWeight :
0.13KGShipping Port :
ChinaMOQ :

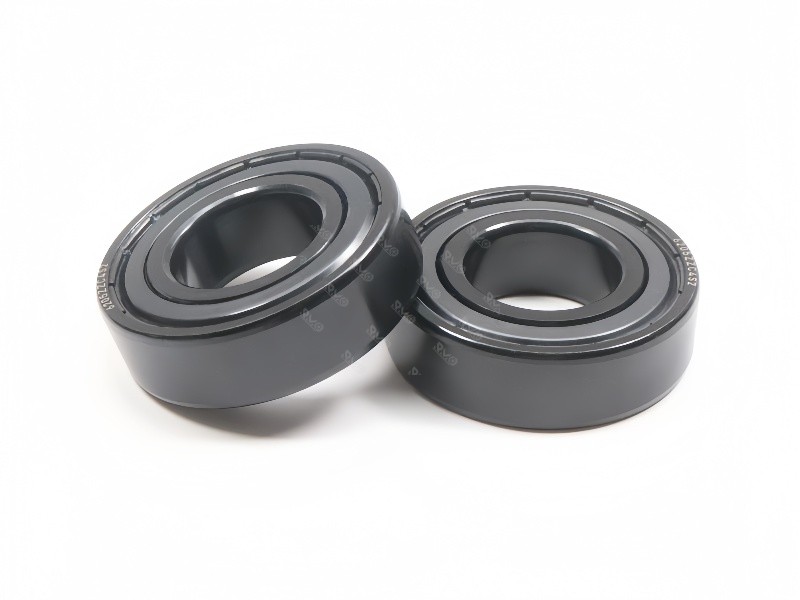

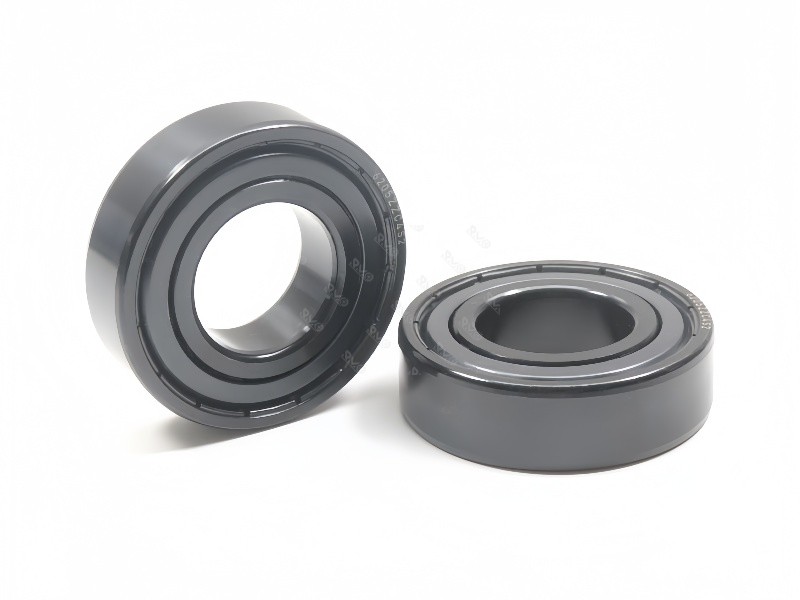

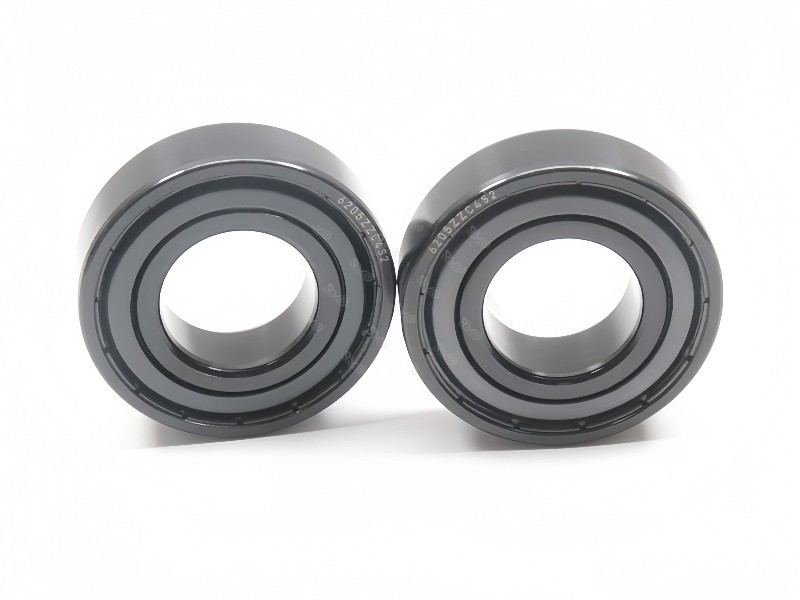

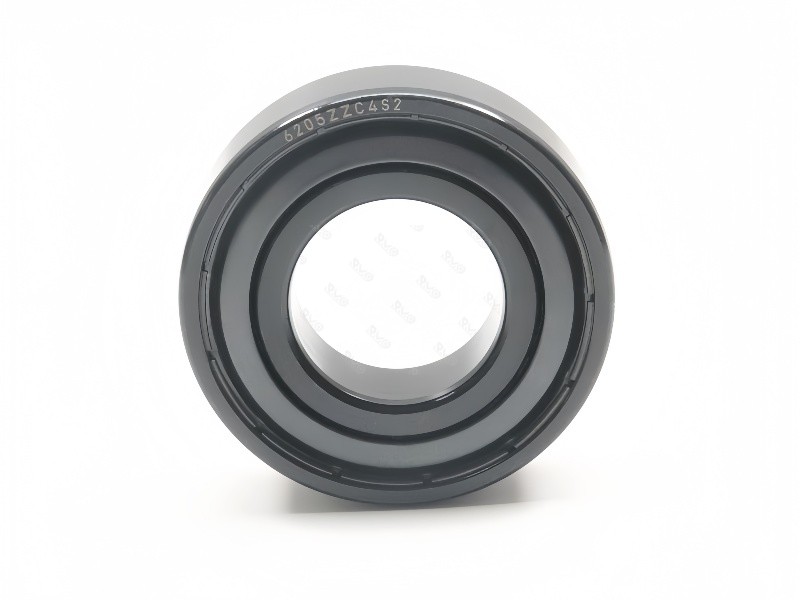

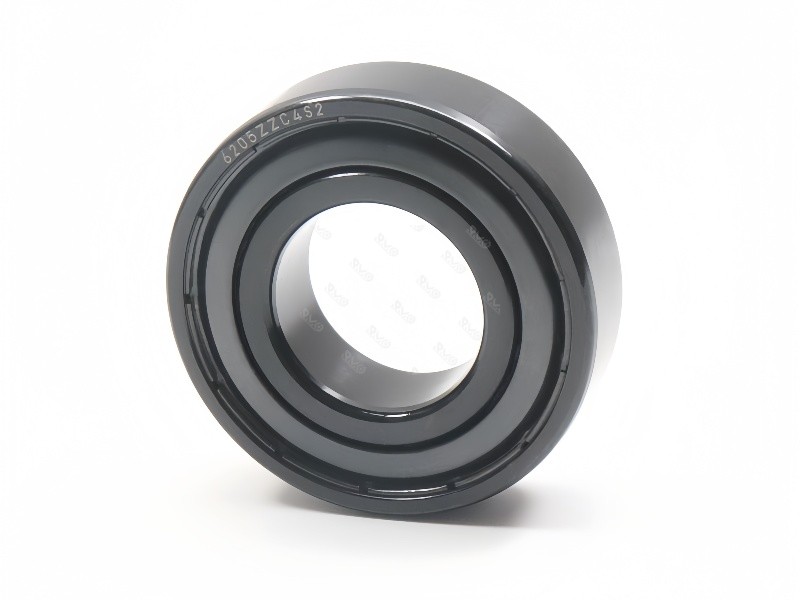

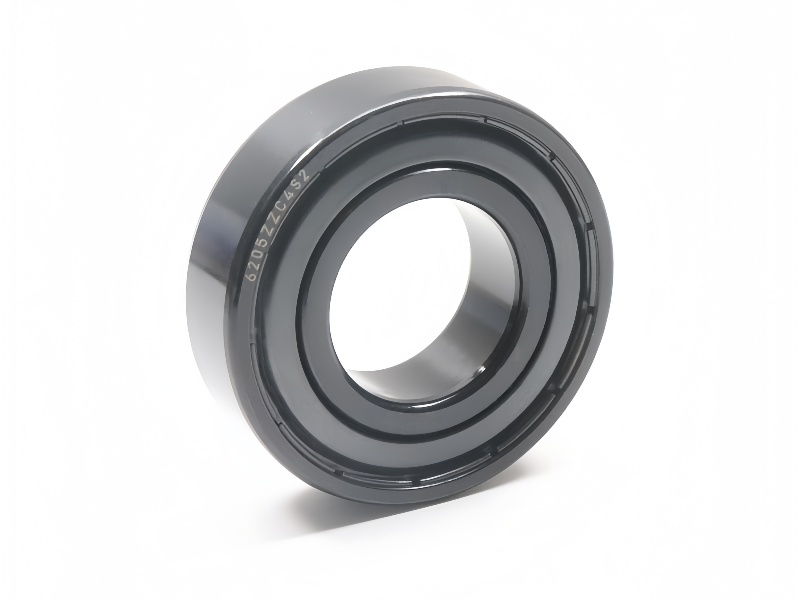

50 pcs6205ZZC4S2 Single Row High-temperature Ball Bearing
⚙️Basic structure:
Similar to standard single-row deep groove ball bearings, it is composed of inner ring, outer ring, steel balls, and cage. The inner and outer rings have precisely machined grooves, and the steel balls roll within the grooves. The cage is used to separate the steel balls and ensure their even distribution, thus enabling the normal operation of the bearing.
Special Design: Usually, it has a relatively large internal radial clearance. The 6205ZZC4S2 type has C4 clearance, which can prevent the bearing from getting stuck during high-temperature operation or rapid cooling. The entire surface of the bearing and the dust cover of some bearings have been treated with manganese phosphating, which can enhance the adhesion of the lubricant to the metal, improve running-in performance, and provide corrosion protection.
| Cage material | According to different usage requirements, can be steel, graphite, special alloys, etc. or without cage. |
| Branding | famous brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Material | High-temperature bearing steel |
| Precision | P0 |
| Clearance | C4 |
| Vibration | Z1V1, Z2V2, Z3V3 |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% TT, or 30% TT In Advance ,70% TT After Finished Product |
| Service | Free sample can be provide |
High-temperature resistance: The working temperature range is wide. Some models of high-temperature deep groove ball bearings can operate at a maximum temperature of 350°C and can run stably for a long time in high-temperature environments.
Load capacity: It can withstand moderate radial loads and axial loads in two directions, meeting the load requirements of various mechanical equipment in high-temperature conditions.
High reliability: Special design and material selection ensure that the bearings can maintain good operating accuracy and stability even under harsh conditions such as high temperature and high speed, reducing the probability of failures and improving the reliability and operational efficiency of the equipment.
Good interchangeability: The external dimensions are the same as standard bearings, making it easy to interchange with lubricated bearings of corresponding ISO sizes for lubrication, making equipment maintenance and replacement more convenient.

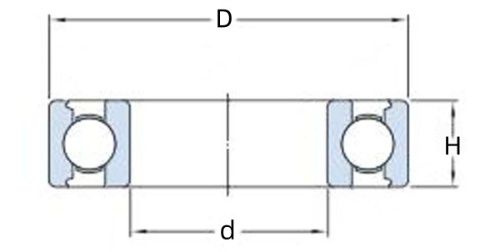

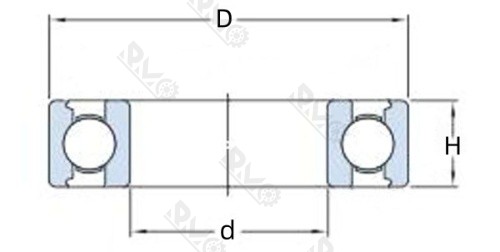

| Model No. | d | D | H | m | Model No. | d | D | H | m | |
| 6300-2Z/VA201 | 10 mm | 35 mm | 11 mm | 0.05 KG | 6209-2Z/VA201 | 45 mm | 85 mm | 19 mm | 0.42 KG | |
| 6201-2Z/VA201 | 12 mm | 32 mm | 10 mm | 0.37 KG | 6210-2Z/VA201 | 50 mm | 90 mm | 20 mm | 0.45 KG | |
| 6202-2Z/VA201 | 15 mm | 35 mm | 11 mm | 0.05 KG | 6310-2Z/VA201 | 50 mm | 110 mm | 27 mm | 1.1 KG | |
| 6003-2Z/VA201 | 17 mm | 35 mm | 10 mm | 0.04 KG | 6011-2Z/VA201 | 55 mm | 90 mm | 18 mm | 0.39 KG | |
| 6203-2Z/VA201 | 17 mm | 40 mm | 12 mm | 0.07 KG | 6211-2Z/VA201 | 55 mm | 100 mm | 21 mm | 0.61 KG | |
| 6204-2Z/VA201 | 20 mm | 47 mm | 14 mm | 0.03 KG | 6311-2Z/VA201 | 55 mm | 120 mm | 29 mm | 1.35 KG | |
| 6304-2Z/VA201 | 20 mm | 52 mm | 15 mm | 0.14 KG | 6212-2Z/VA201 | 60 mm | 110 mm | 22 mm | 0.78 KG | |
| 6005-2ZVA201 | 25 mm | 47 mm | 12 mm | 0.08 KG | 6213-2ZVA201 | 65 mm | 120 mm | 23 mm | 1 KG | |
| 6205-2Z/VA201 | 25 mm | 52 mm | 15 mm | 0.13 KG | 6313-2Z/VA201 | 65 mm | 140 mm | 33 mm | 2.1 KG | |
| 6206-2ZVA201 | 30 mm | 62 mm | 16 mm | 0.2 KG | 6214-2Z/VA201 | 70 mm | 125 mm | 24 mm | 1.1 KG | |
| 6207-2ZVA201 | 35 mm | 72 mm | 17 mm | 0.29 KG | 6215-2Z/VA201 | 75 mm | 130 mm | 25 mm | 1.2 KG | |
| 6308-2Z/VA201 | 40 mm | 90 mm | 23 mm | 0.63 KG | 6219-2ZVA201 | 95 mm | 170 mm | 32 mm | 2.6 KG |
Metallurgical industry, glass manufacturing, kiln equipment, automotive industry, aerospace, etc.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
