Item No :
F5-10Size (d*D*B) :
5x10x4mmLead Time :
3-5 daysWeight :
0.002KGShipping Port :
GuangZhou, NingBo, ShangHaiMOQ :

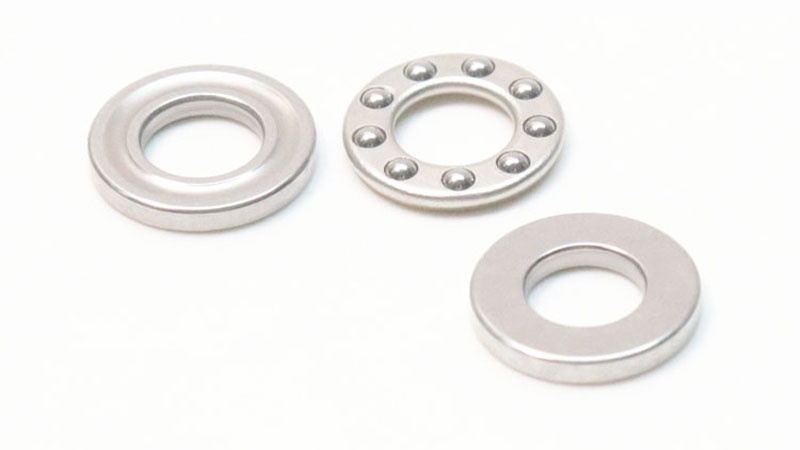

100 pcs5x10x4mm F5-10 Miniature Thrust Ball Bearing
⚙️Structural features:

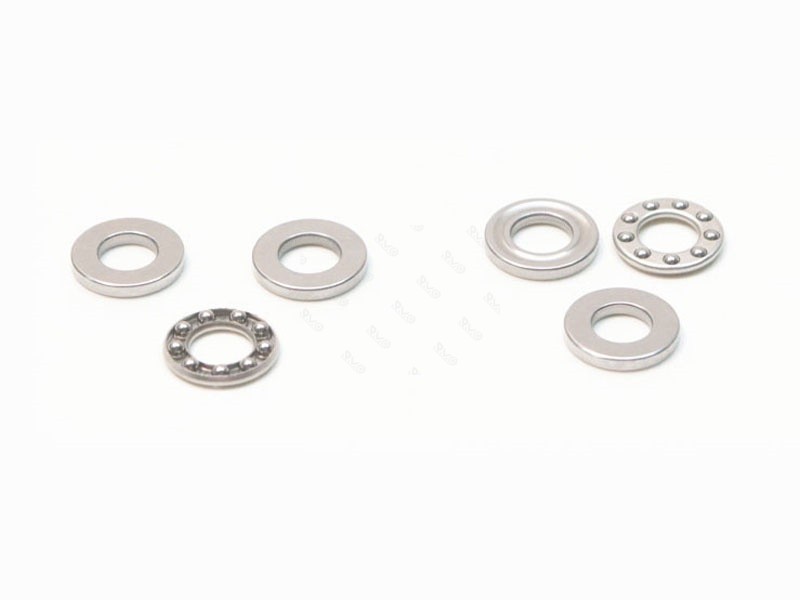

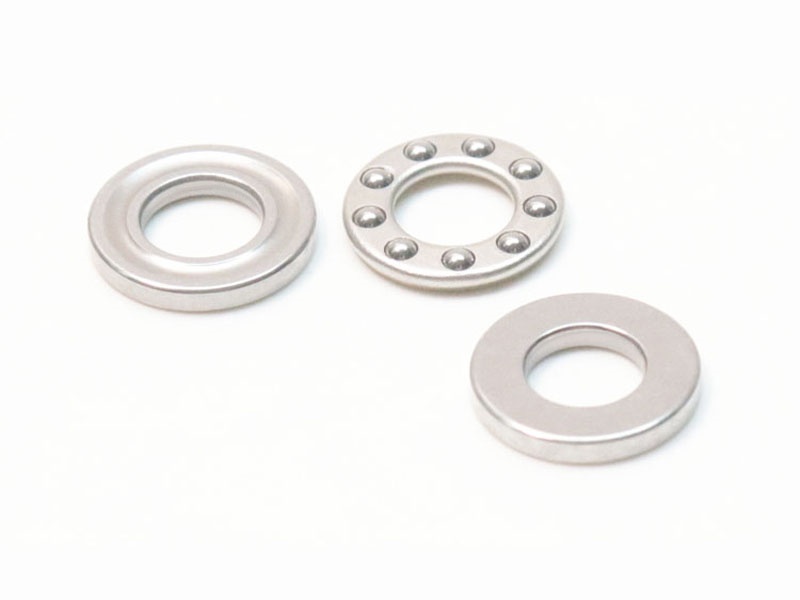

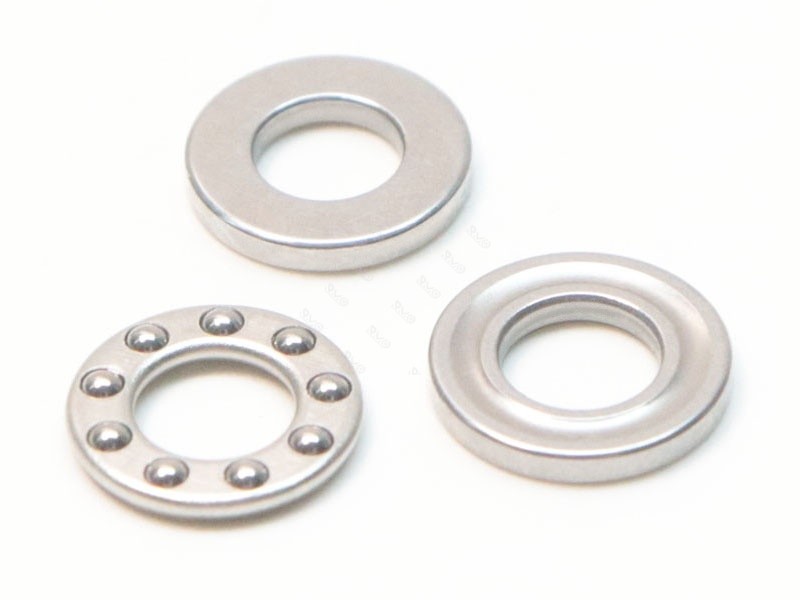

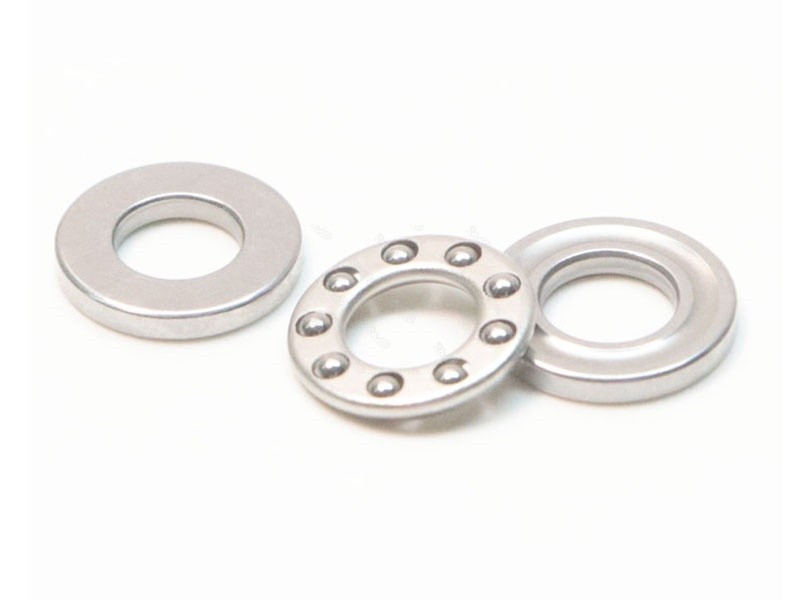

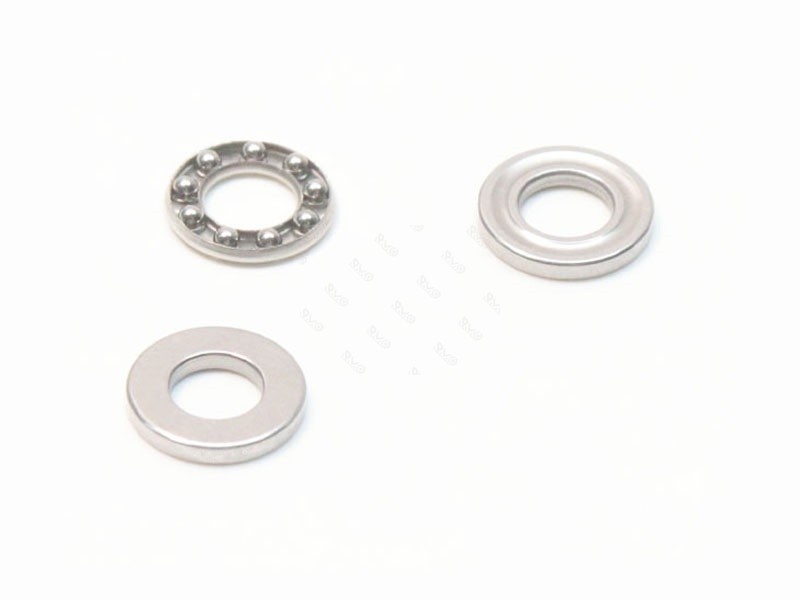

Bearing type: F5-10. This bearing is a type of flat thrust ball bearing. It is a separable bearing, and the inner ring, outer ring, cage and ball components can be separated.
Ring-shaped sleeve: It is composed of a ring-shaped sleeve with a ball-rolling groove. It is divided into two types: flat base sleeve type and self-aligning spherical seat sleeve type. The bearing with a spherical seat ring has self-aligning performance, which can eliminate the influence of installation errors.
cage: The materials of the cage usually include stainless steel and copper. It serves the function of maintaining the position of the steel balls and guiding their rolling motion.
| Cage material | Steel, Nylon, Copper |
| Branding | famous brand/RMO/Neutral/OEM |
| Material | Chrome steel(Gcr15) or stainless steel |
| Precision | ABEC-1 ABEC-3 ABEC-5 ABEC-7 |
| Shipping Port | GUANGZHOU,NINGBO,SHANGHAI |
| Payment | 100% T/T or 30% T/T in advance ,70% T/T after finished production |
| Service | Free sample can be provided |
Axial load-bearing capacity: Mainly used to bear axial loads. Single-directional plain thrust ball bearings can withstand single-directional axial loads, while double-directional plain thrust ball bearings can withstand both-directional axial loads.
Speed limit: The maximum speed is relatively low and is not suitable for high-speed operation scenarios. This is because the steel balls, when subjected to high-speed rotation, are prone to being pushed towards the outer side of the raceway due to centrifugal force, thereby causing scratches.

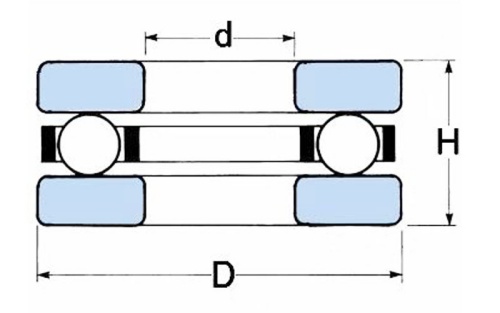

| Model No. | d | D | H | m |
| F2-6 | 2 mm | 6 mm | 3 mm | 0.6 g |
| F2X-7 | 2.5 mm | 7 mm | 3.5 mm | 0.9 g |
| F3-8 | 3 mm | 8 mm | 3.5 mm | 0.6 g |
| F4-9 | 4 mm | 9 mm | 4 mm | 1.5 g |
| F4-10 | 4 mm | 10 mm | 4.5 mm | 2 g |
| F5-10 | 5 mm | 10 mm | 4 mm | 2.2 g |
| F5-11 | 5 mm | 11 mm | 4.5 mm | 2.4 g |
| F6-12 | 6 mm | 12 mm | 4.5 mm | 2.5 g |
| F7-15 | 7 mm | 15 mm | 5 mm | 4.4 g |
| F8-14 | 8 mm | 14 mm | 4 mm | 2.5 g |
| F8-16 | 8 mm | 16 mm | 5 mm | 5 g |
| F9-17 | 9 mm | 17 mm | 5 mm | 5.1 g |
| F10-18 | 10 mm | 18 mm | 5.5 mm | 6 g |
Automotive industry, home appliance industry, industrial machinery, aerospace, medical devices, etc.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
