Item No :
63800-2RSSize (d*D*B) :
10x19x7mmLead Time :
3-5 DaysWeight :
0.007KGShipping Port :
GUANGZHOU, NINGBO, SHANGHAIMOQ :

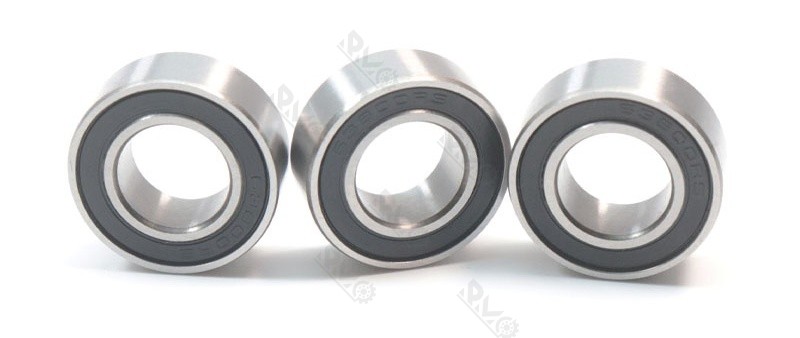

50 pcs63800-2RS High-speed Thin-wall Deep Groove Ball Bearing
⚙️product description:
Sealing type: The 63800-2RS bearing has rubber contact lip seals on both sides. This sealing method has a good sealing effect and can effectively prevent dust, moisture and other impurities from entering the interior of the bearing.
Material: The raceways and rolling elements of the bearings are made of chrome steel Gcr15, which has high hardness and wear resistance. The cage material is steel plate, and some bearings also use plastic cages.
| Cage material | Steel |
| Branding | Famous Brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Material | Chrome Steel (Gcr15)or Stainless Steel etc. |
| Precision | ABEC-1 ABEC-3 ABEC-5 ABEC-7 |
| Clearance | C0 C3 |
| Vibration | Z1V1, Z2V2, Z3V3 |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% TT, or 30% TT In Advance ,70% TT After Finished Production |
| Service | Free Sample Can Be Provided |
This bearing is suitable for withstanding high radial loads and bidirectional light axial loads. It boasts high operational accuracy, low noise, and high rotational speed. It can be used as either a fixed bearing or a floating bearing, and can be applied in both directions.

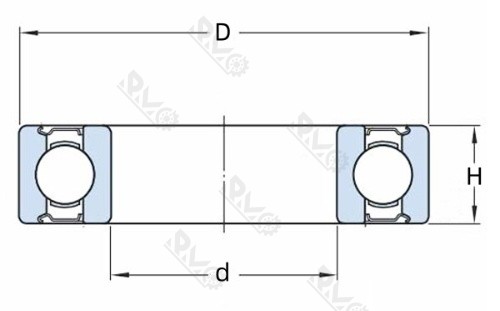

| Model No. | d | D | H | m |
| 619/9 | 9 mm | 20 mm | 6 mm | 7.2 g |
| 609 | 9 mm | 24 mm | 7 mm | 13.5 g |
| 629 | 9 mm | 26 mm | 8 mm | 18 g |
| 639 | 9 mm | 30 mm | 10 mm | 33.5 g |
| 61700 | 10 mm | 15 mm | 3 mm | 1.4 g |
| 61800 | 10 mm | 19 mm | 5 mm | 4.8 g |
| 63800 | 10 mm | 19 mm | 7 mm | 6.8 g |
| 61900 | 10 mm | 22 mm | 6 mm | 8.9 g |
| 6000 | 10 mm | 26 mm | 8 mm | 17.5 g |
| 6200 | 10 mm | 30 mm | 9 mm | 29 g |
| 6300 | 10 mm | 35 mm | 11 mm | 50.5 g |
| 61701 | 12 mm | 18 mm | 4 mm | 2.7 g |
| 61801 | 12 mm | 21 mm | 5 mm | 5.4 g |
| 63801 | 12 mm | 21 mm | 7 mm | 7.6 g |
Due to its compact size and high rotational speed, it is suitable for situations with limited space and requiring high-speed operation, such as textile machinery, small motors, robots, printing machinery, security cameras, clutches, drivers and gearboxes, etc.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
