Item No :
6005ZZSize (d*D*B) :
25x47x12mmLead Time :
3-5 daysWeight :
0.08KGShipping Port :
ChinaMOQ :

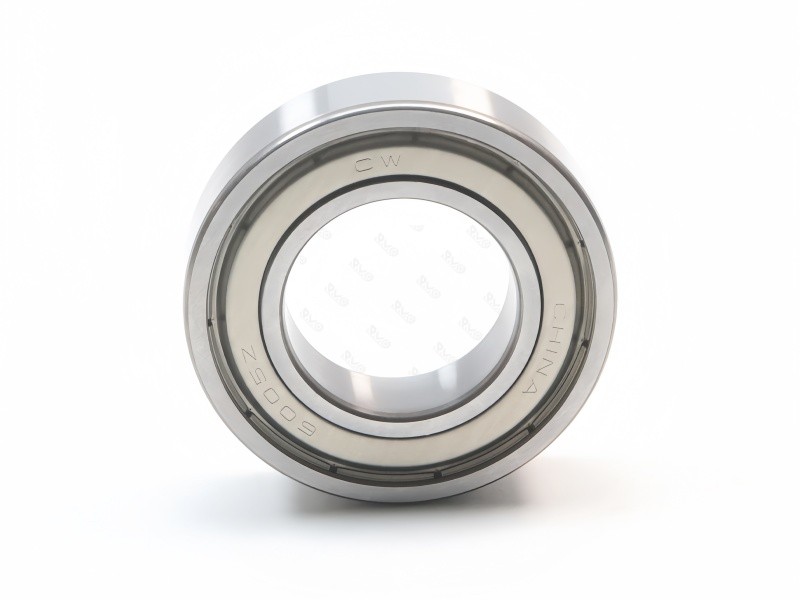

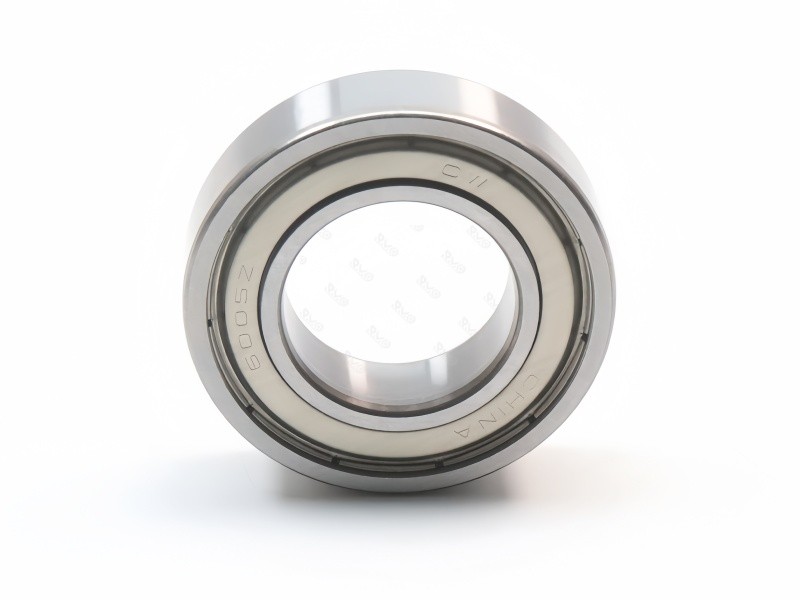

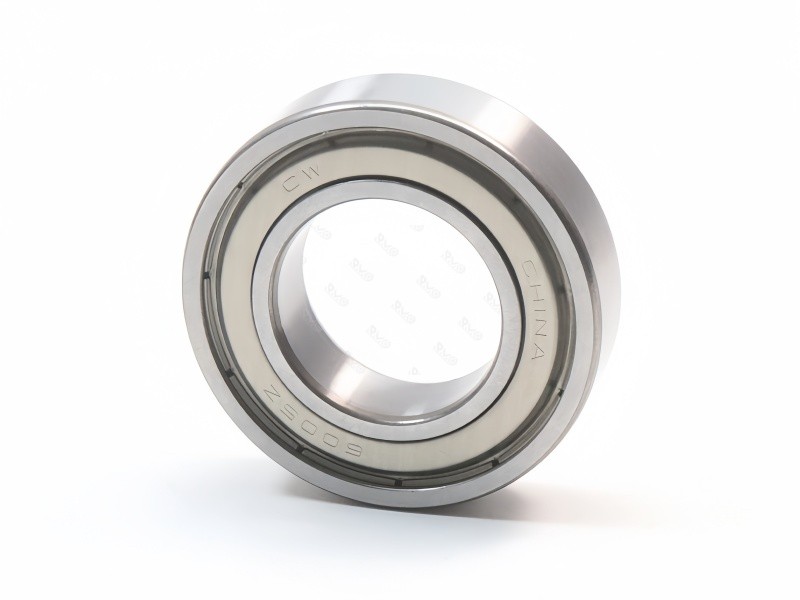

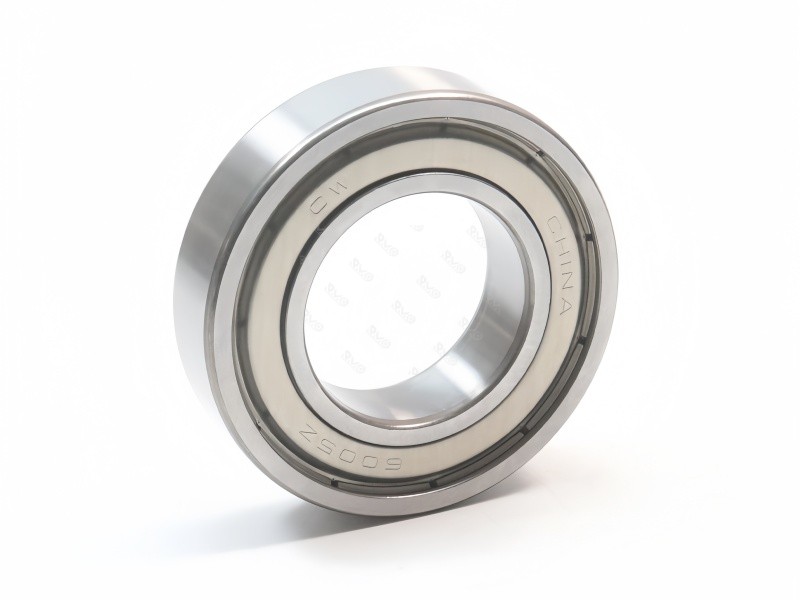

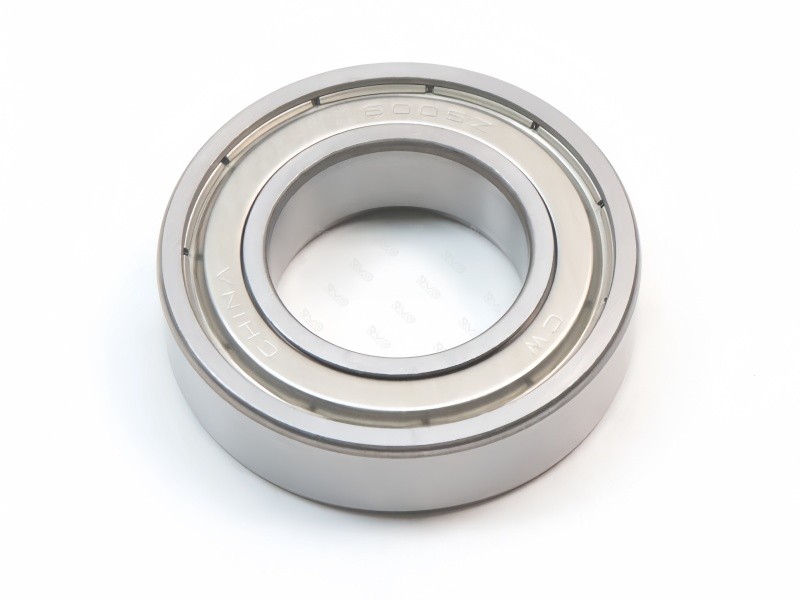

50 pcs6005ZZ Single Row Deep Groove Ball Bearing
⚙️Product introduction:
This bearing adopts a standardized structure composed of rings, cages and steel balls. It can not only withstand radial loads but also enhance its capacity to bear axial loads by increasing the radial clearance. It can maintain stable operation even when there is an 8' - 16' inclination in the shaft or housing.
| Cage material | Steel |
| Branding | Famous Brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Material | Chrome Steel (Gcr15)or Stainless Steel |
| Precision | ABEC-1 ABEC-3 ABEC-5 ABEC-7 |
| Clearance | C0 C3 |
| Vibration | Z1V1, Z2V2, Z3V3 |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% TT, or 30% TT In Advance ,70% TT After Finished Product |
| Service | Free Sample Can Be Provide |
It is composed of a pair of precisely machined rings, a cage assembly and ground steel balls. The structure is simple and easy to use. It is widely used to bear radial loads and can also withstand a certain amount of axial loads. Dust covers or seals are provided on both sides to prevent external impurities from entering the bearing. This design enhances the axial positioning accuracy while maintaining the original radial load capacity.
Load capacity: Can withstand 10.1kN dynamic load and 5.85kN static load under standard conditions.
Operating accuracy: The maximum allowable inclination angle is 8° - 16°, suitable for conditions with slight assembly errors.
Lubrication adaptability: Supports both grease lubrication and oil lubrication methods. In the oil lubrication state, the rotational speed can be increased by 20%.

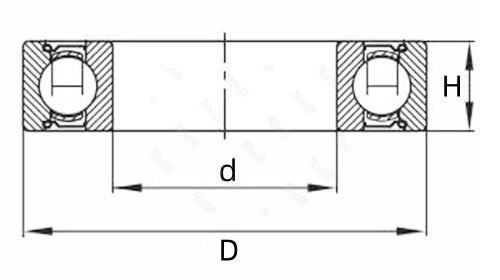

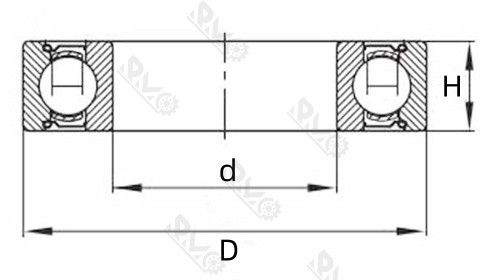

| Model No. | d | D | H | m | Model No. | d | D | H | m | |
| 6000ZZ | 10 mm | 26 mm | 8 mm | 20 g | 6014ZZ | 70 mm | 110 mm | 20 mm | 642 g | |
| 6001ZZ | 12 mm | 28 mm | 8 mm | 20 g | 6015ZZ | 75 mm | 115 mm | 20 mm | 676 g | |
| 6002ZZ | 15 mm | 32 mm | 9 mm | 33 g | 6016ZZ | 80 mm | 125 mm | 22 mm | 893 g | |
| 6003ZZ | 17 mm | 35 mm | 10 mm | 40 g | 6017ZZ | 85 mm | 130 mm | 22 mm | 940 g | |
| 6004ZZ | 20 mm | 42 mm | 12 mm | 71 g | 6018ZZ | 90 mm | 140 mm | 24 mm | 1.23 KG | |
| 6005ZZ | 25 mm | 47 mm | 12 mm | 83 g | 6019ZZ | 95 mm | 145 mm | 24 mm | 1.27 KG | |
| 6006ZZ | 30 mm | 55mm | 13 mm | 126 g | 6020ZZ | 100 mm | 150 mm | 24 mm | 1.35 KG | |
| 6007ZZ | 35 mm | 62 mm | 14 mm | 163 g | 6021ZZ | 105 mm | 160 mm | 26 mm | 1.7 KG | |
| 6008ZZ | 40 mm | 68 mm | 15 mm | 200 g | 6022ZZ | 110 mm | 170 mm | 28 mm | 2.11 KG | |
| 6009ZZ | 45 mm | 75 mm | 16 mm | 253 g | 6024ZZ | 120 mm | 180 mm | 28 mm | 2.23 KG | |
| 6010ZZ | 50 mm | 80 mm | 16 mm | 282 g | 6026ZZ | 130 mm | 200 mm | 33 mm | 3.4 KG | |
| 6011ZZ | 55 mm | 90 mm | 18 mm | 409 g | 6028ZZ | 140 mm | 210 mm | 33 mm | 3.65 KG | |
| 6012ZZ | 60 mm | 95 mm | 18 mm | 431 g | 6030ZZ | 150 mm | 225 mm | 35 mm | 4.3 KG | |
| 6013ZZ | 65 mm | 100 mm | 18 mm | 464 g | 6032ZZ | 160 mm | 240 mm | 38 mm | 5 KG |
Due to its numerous excellent properties, deep groove ball bearings have an extremely wide range of applications, covering various fields such as small power electric motors, automotive and tractor gearboxes, machine tool gearboxes, household appliances, instruments and meters, aerospace, medical devices, and many others.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
