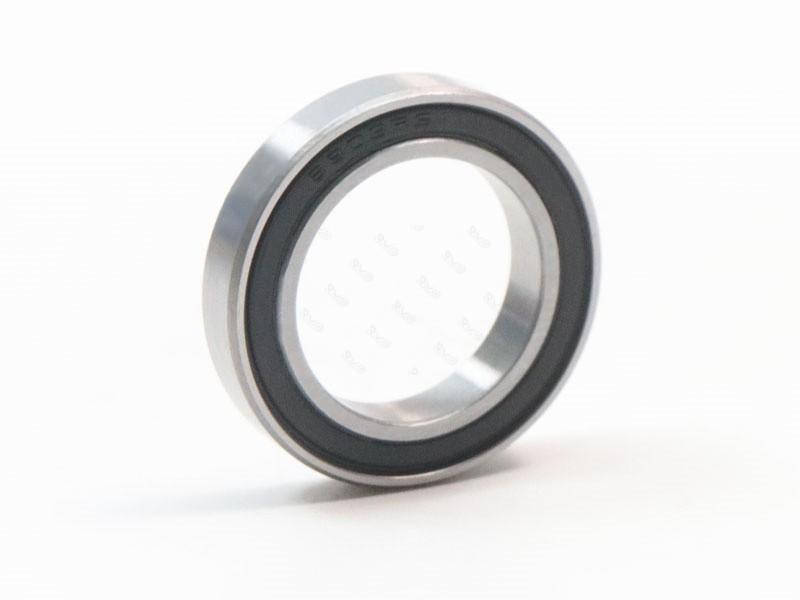

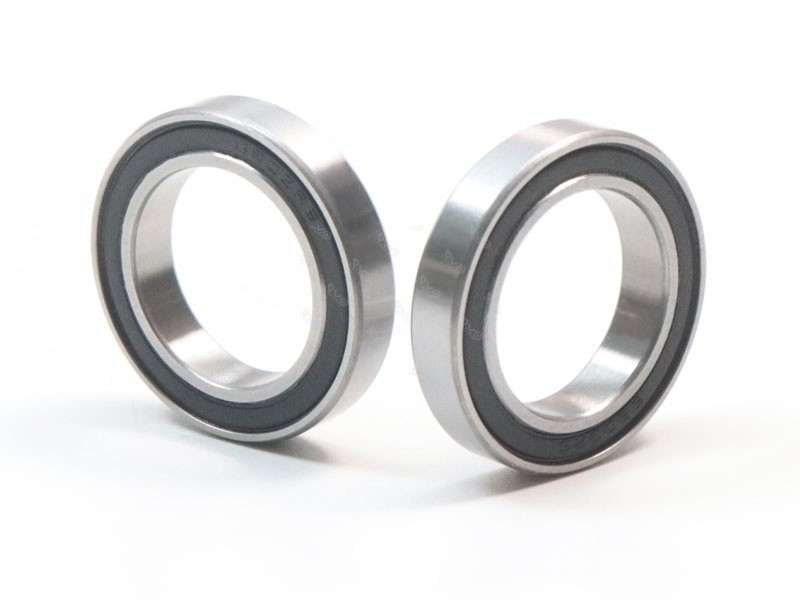

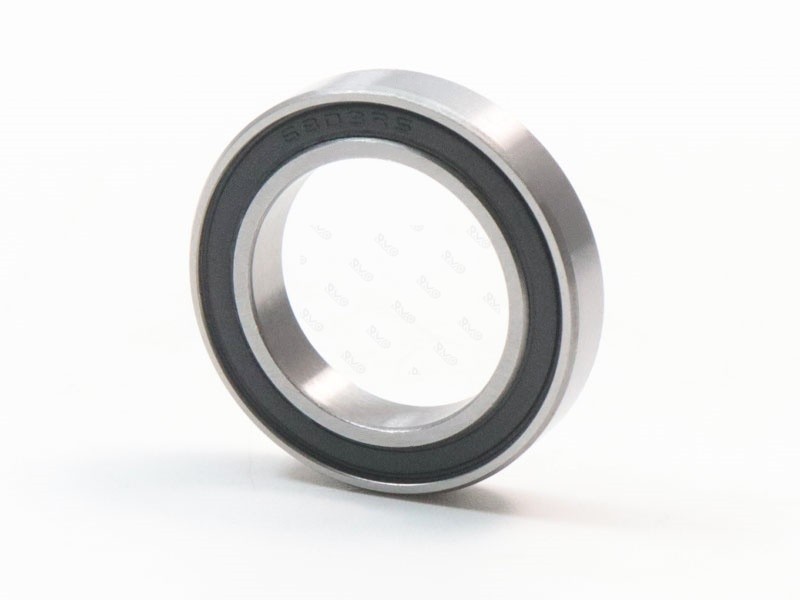

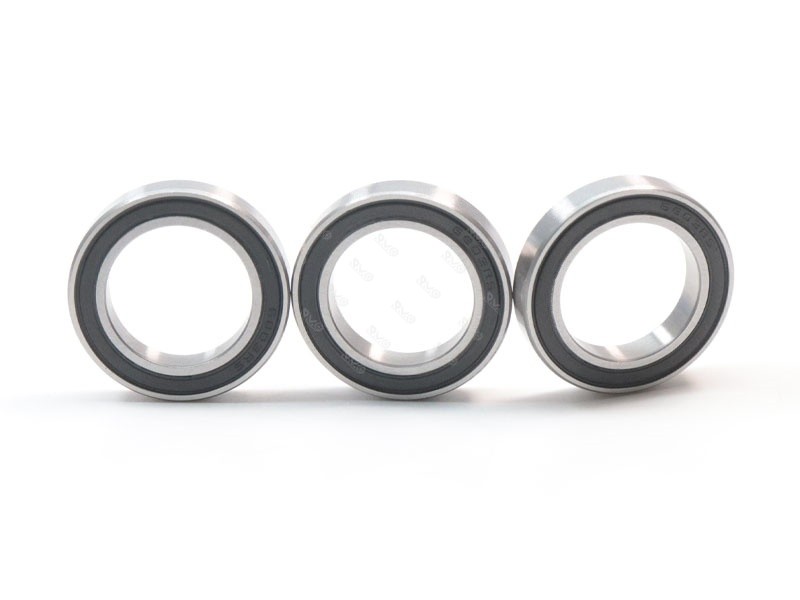

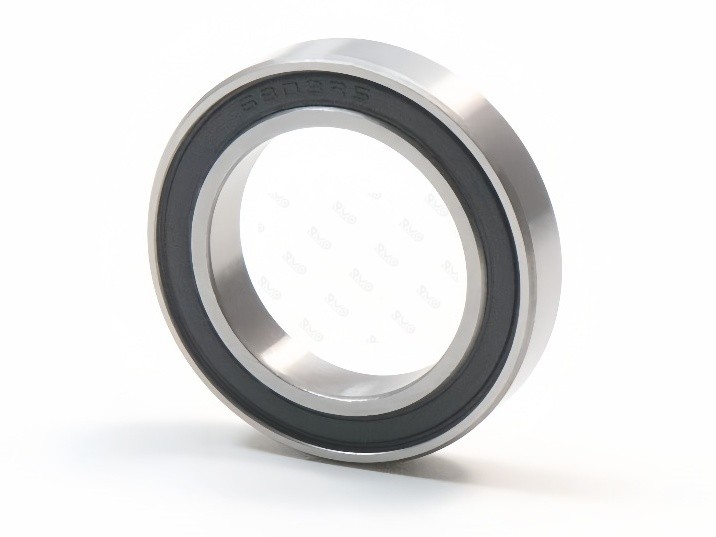

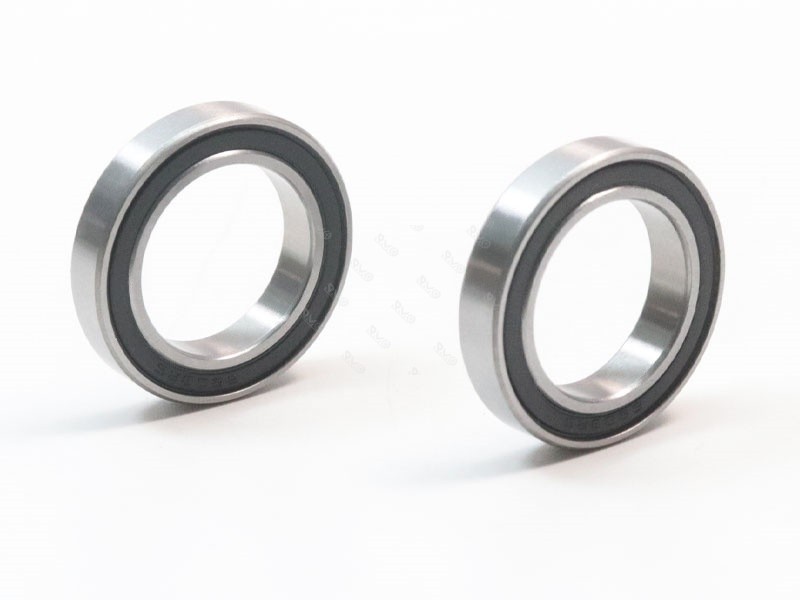

6803 Low friction High radial load capacity deep groove ball bearing
Item No :
6803-2RSSize (d*D*B) :
17x26x5mmLead Time :
3-5 daysWeight :
0.008KGShipping Port :
Guangzhou, Ningbo, ShanghaiMOQ :
100 pcsThe bearing consists of several steel balls as rolling elements, with point contact between the steel balls and the raceways of the inner and outer rings. This contact method results in low friction during operation, enabling high rotational speeds.
The cage is typically made of stamped steel plate or plastic, serving to evenly separate the rolling elements, reduce mutual friction and wear between them, and ensure normal bearing operation.
| Item No. | 6803RS |
| Branding | famous brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Material | carbon steel, hybrid ceramic, full ceramic,GCR15,stainless steel (420 440C 304 316) |
| Lead Time | 3-5 days |
| Precision | p0 p6 p5 p4 |
| Clearance | C2 C0 C3 C4 |
| Vibration | Z1V1, Z2V2, Z3V3 |
| Cage material | Steel, nylon, copper |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% T/T, or 30% T/T In Advance ,70% T/T After Finished Product |
Low friction : Reducing operating temperature. Friction generates heat, and the low-friction 6803 bearing produces less heat during operation, resulting in a relatively lower bearing operating temperature. This is critical for temperature-sensitive equipment such as precision instruments. In precision optical instruments, temperature changes can affect the performance of optical components and measurement accuracy. The low temperature rise caused by low friction ensures stable instrument operation and maintains high-precision measurement results.
High radial load capacity: Ensures equipment reliability. In complex working environments, equipment may be subjected to various unpredictable radial external forces. The 6803 bearing, with its high radial load-bearing capacity, can effectively resist these forces, ensuring the normal operation of the equipment. For example, in outdoor applications, small mechanical equipment may encounter collisions or vibrations. The 6803 bearing can withstand the radial loads caused by such incidents, reducing the risk of equipment downtime due to bearing failure and improving the reliability and operational continuity of the equipment.

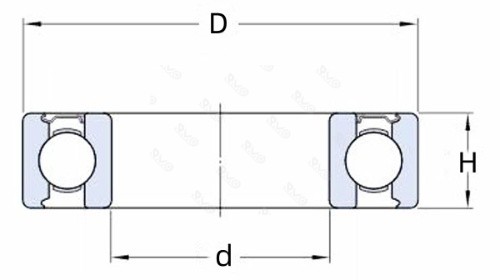

| Model No. | d | D | H | m | Model No. | d | D | H | m | |
| 6800-2RS | 10 mm | 19 mm | 5 mm | 6 g | 6812-2RS | 60 mm | 78 mm | 10 mm | 105 g | |
| 6801-2RS | 12 mm | 21 mm | 5 mm | 6 g | 6813-2RS | 65 mm | 85 mm | 10 mm | 130 g | |
| 6802-2RS | 15 mm | 24 mm | 5 mm | 8 g | 6814-2RS | 70 mm | 90 mm | 10 mm | 140 g | |
| 6803-2RS | 17 mm | 26 mm | 5 mm | 8 g | 6815-2RS | 75 mm | 95 mm | 10 mm | 150 g | |
| 6804-2RS | 20 mm | 32 mm | 7 mm | 18 g | 6816-2RS | 80 mm | 100 mm | 10 mm | 155 g | |
| 6805-2RS | 25 mm | 37 mm | 7 mm | 23 g | 6817-2RS | 85 mm | 110 mm | 13 mm | 270 g | |
| 6806-2RS | 30 mm | 42 mm | 7 mm | 27 g | 6818-2RS | 90 mm | 115 mm | 13 mm | 280 g | |
| 6807-2RS | 35 mm | 47 mm | 7 mm | 30 g | 6819-2RS | 95 mm | 120 mm | 13 mm | 295 g | |
| 6808-2RS | 40 mm | 52 mm | 7 mm | 32 g | 6820-2RS | 100 mm | 125 mm | 13 mm | 310 g | |
| 6809-2RS | 45 mm | 58 mm | 7 mm | 39 g | 6821-2RS | 105 mm | 130 mm | 13 mm | 330 g | |
| 6810-2RS | 50 mm | 65 mm | 7 mm | 52 g | 6822-2RS | 110 mm | 140 mm | 16 mm | 500 g | |
| 6811-2RS | 55 mm | 72 mm | 9 mm | 84 g | 6824-2RS | 120 mm | 150 mm | 16 mm | 550 g |
Model Aircraft
Printers
Fan Motors
-
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
