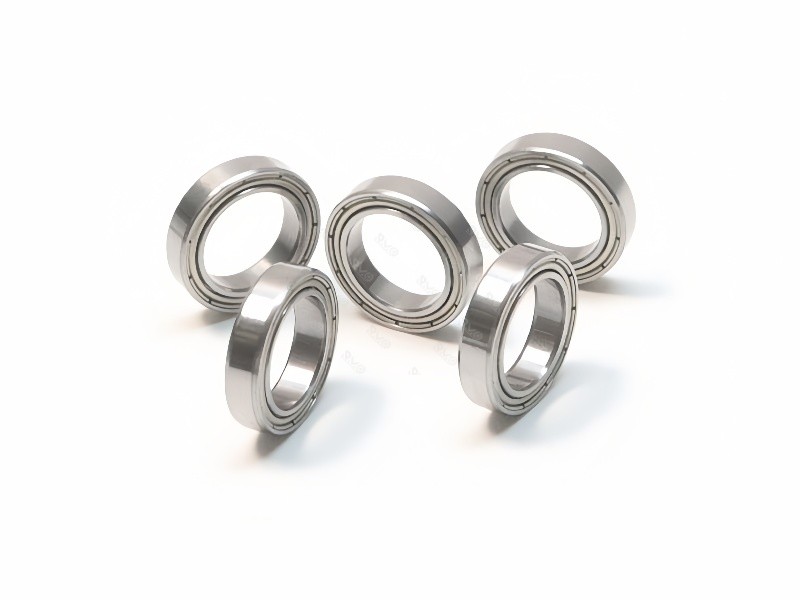

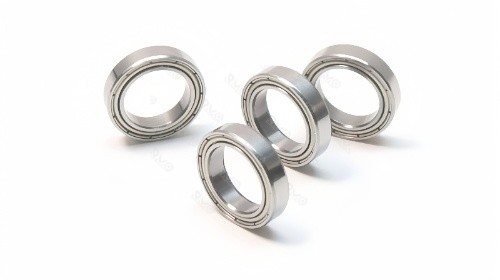

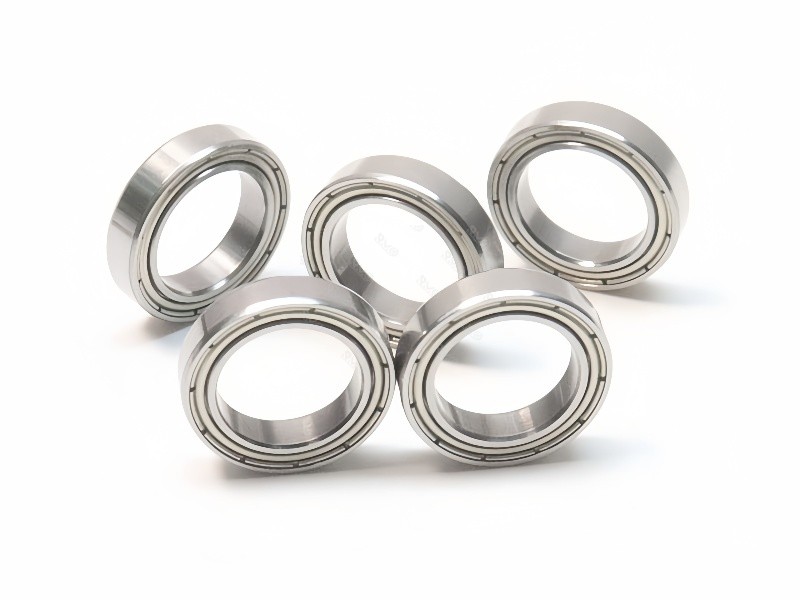

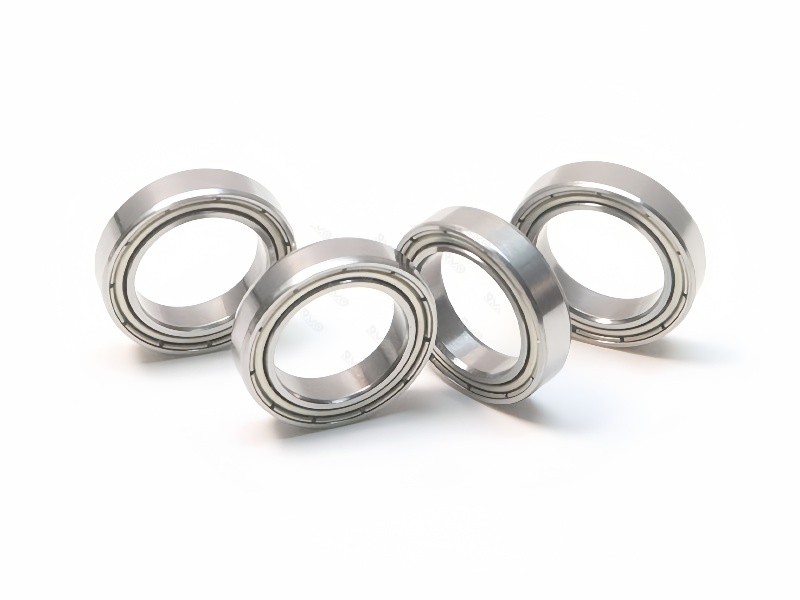

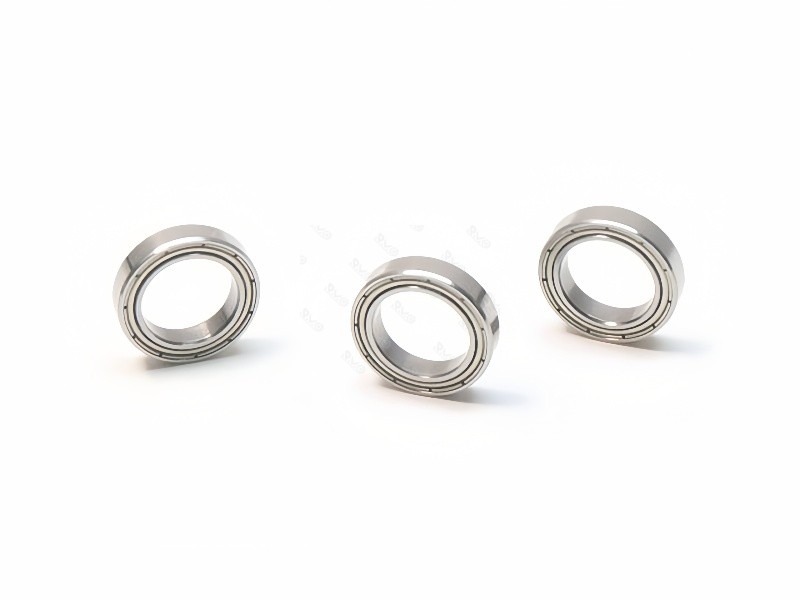

Item No :
6701ZZ (61701ZZ)Size (d*D*B) :
12x18x4mmLead Time :
3-5 daysWeight :
0.003KGShipping Port :
Guangzhou, Ningbo, ShanghaiMOQ :
100 pcs
| Item No. | 6701ZZ |
| Branding | famous brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Material | carbon steel, hybrid ceramic, full ceramic,GCR15,stainless steel (420 440C 304 316) |
| Lead Time | 3-5 days |
| Precision | p0 p6 p5 p4 |
| Clearance | C2 C0 C3 C4 |
| Vibration | Z1V1, Z2V2, Z3V3 |
| Cage material | Steel, nylon, copper |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% T/T, or 30% T/T In Advance ,70% T/T After Finished Production |
Outer ring material: Commonly uses high-carbon chromium steel (GCr15) or stainless steel (SUS440C), with hardness reaching HRC58 to 62.
Rolling elements: Use precision steel balls with tolerance grade G10.
Cage: Material is pressed steel, with low friction design.
⚙️Lubrication method:
The product is pre-filled with high-temperature lithium-based lubricating grease at the factory, which can meet the lubrication requirements for a wide temperature range and high-speed operation.
⚙️Accuracy grade:
Usually it is of the ABEC-3/P0 standard level, and the ABEC-5/P6 high-precision level can also be selected as per requirements.
| Bearings No. | ID(d*D*B)mm | Weight (KG) | Bearings No. | ID(d*D*B)mm | Weight (KG) |
| 672ZZ | 2*4*2 | 0.0001 | 672RS | 2*4*2 | 0.0001 |
| 6700ZZ | 10*15*4 | 0.002 | 6700RS | 10*15*4 | 0.002 |
| 6701ZZ | 12*18*4 | 0.003 | 6701RS | 12*18*4 | 0.003 |
| 6702ZZ | 15*21*4 | 0.004 | 6702RS | 15*21*4 | 0.004 |
| 6703ZZ | 17*23*4 | 0.004 | 6703RS | 17*23*4 | 0.004 |
| 6704ZZ | 20*27*4 | 0.006 | 6704RS | 20*27*4 | 0.006 |
| 6705ZZ | 25*32*4 | 0.007 | 6705RS | 25*32*4 | 0.007 |
| 6706ZZ | 30*37*4 | 0.009 | 6706RS | 30*37*4 | 0.009 |
| 6707ZZ | 35*44*4 | 0.015 | 6707RS | 35*44*4 | 0.015 |
| 6708ZZ | 40*50*6 | 0.023 | 6708RS | 40*50*6 | 0.023 |
| 6709ZZ | 45*55*6 | 0.03 | 6709RS | 45*55*6 | 0.03 |
| 6710ZZ | 50*62*6 | 0.045 | 6710RS | 50*62*6 | 0.045 |

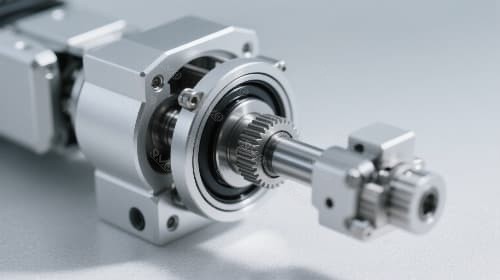

Robot joint module

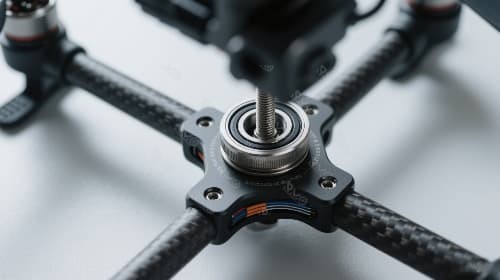

Drones' gimbal

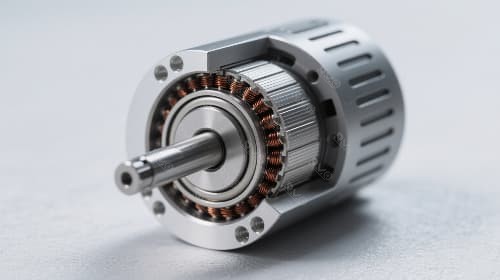

high-speed motor
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
