Item No :
6002RSSize (d*D*B) :
15x32x9mmLead Time :
3-5 daysWeight :
0.03KGShipping Port :
ChinaMOQ :

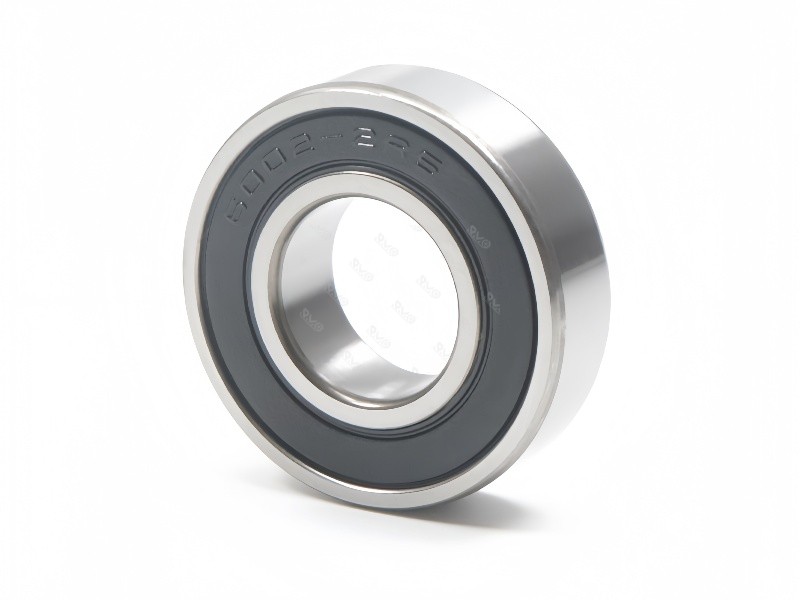

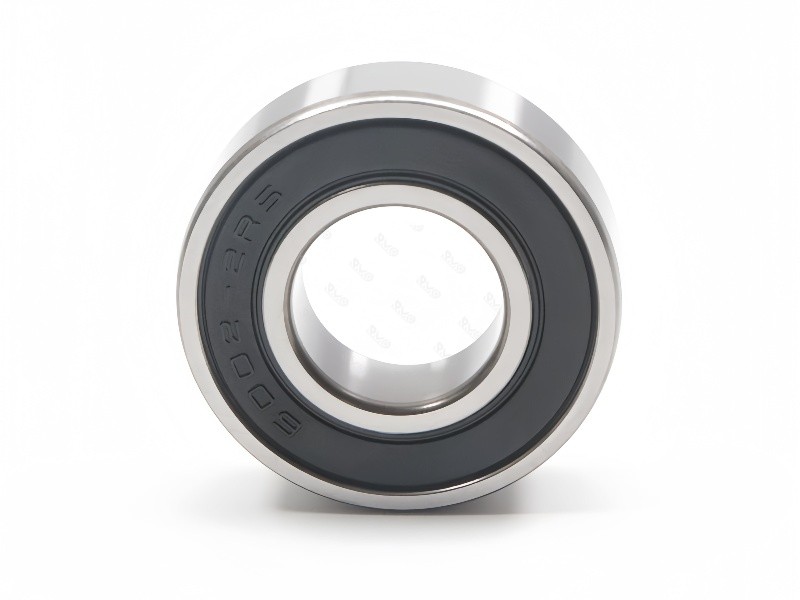

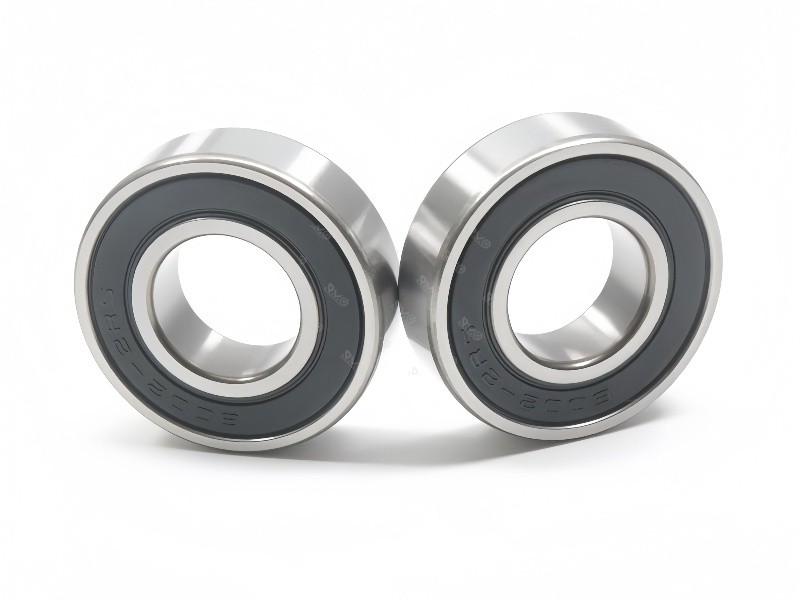

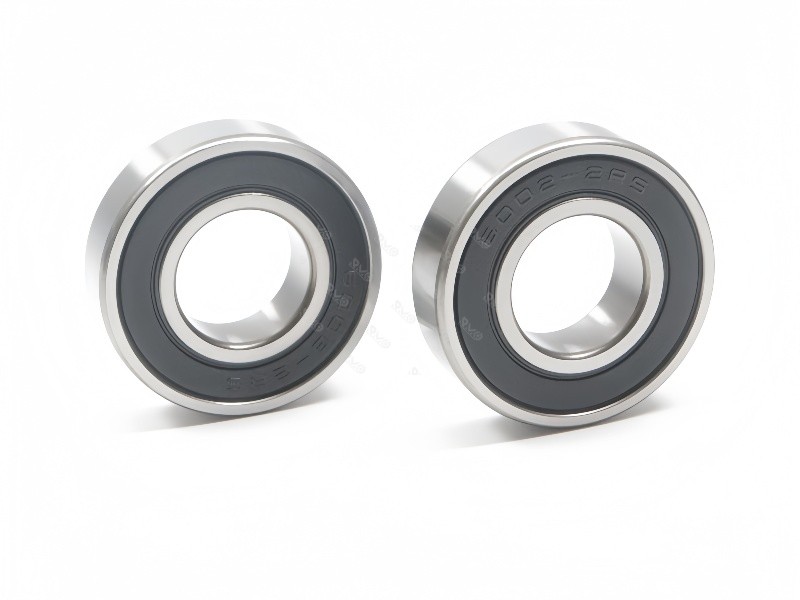

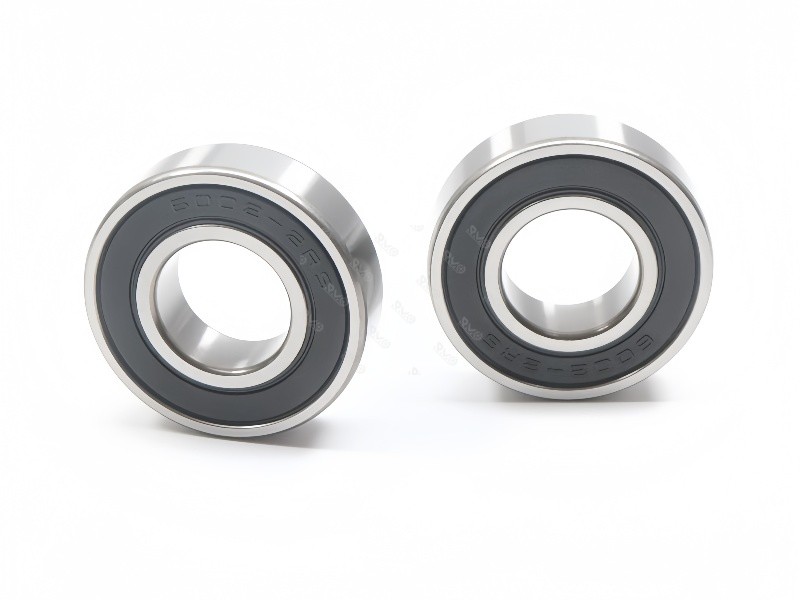

100 pcs6002RS High Speed Deep Groove Ball Bearing
⚙️Component composition:
Inner ring: Usually fits with the shaft and rotates together with it. The raceway surface of the inner ring is smooth and has extremely high precision to ensure smooth rolling of the rolling elements.
Outer ring: The raceway of the outer ring is similar to that of the inner ring, jointly providing a motion track for the rolling elements. Generally, it remains relatively stationary.
Rolling elements: Usually are steel balls. High-quality rolling elements need to have good wear resistance and strength to withstand high-speed rotation and loads.
Cages: Commonly used materials include steel stamping cages, engineering plastic cages, or copper solid cages, which are used to separate the steel balls and reduce friction between them, guiding the steel balls to roll correctly within the raceway.
| Cage material | Steel |
| Branding | famous brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Material | Chrome steel (Gcr15)or stainless steel |
| Precision | ABEC-1 ABEC-3 ABEC-5 ABEC-7 |
| Clearance | C0 C3 |
| Vibration | Z1V1, Z2V2, Z3V3 |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% TT, or 30% TT In Advance ,70% TT After Finished Product |
| Service | Free sample can be provide |
Low friction resistance: Rolling friction replaces sliding friction, resulting in extremely low friction resistance during operation of the deep groove ball bearing. This reduces energy loss and improves mechanical efficiency.
High rotational speed: It can operate stably at high rotational speeds and is suitable for equipment requiring high-speed rotation, such as motors, fans, machine tool spindles, etc.
Load-bearing capacity: It mainly bears radial loads and can also withstand certain axial loads. When the radial clearance of the bearing is increased, it has the performance of angular contact ball bearings and can bear combined radial and axial loads. When high rotational speed is required but thrust ball bearings cannot be used, it can also be used to bear pure axial loads.
Easy maintenance: The structure is relatively simple, and the requirements for installation accuracy and lubrication conditions are relatively low. The maintenance cost is low. Most models do not require frequent lubrication, and it is relatively convenient during use.

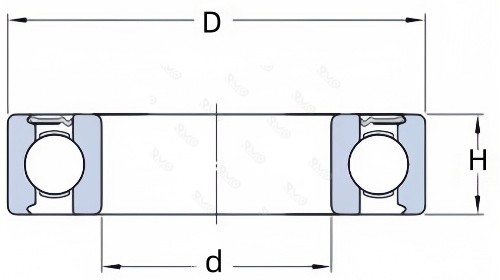

| Model No. | d | D | H | m |
| 607RS | 7 mm | 19 mm | 6 mm | 0.01 KG |
| 608RS | 8 mm | 22 mm | 7 mm | 0.01 KG |
| 609RS | 9 mm | 24 mm | 7 mm | 0.01 KG |
| 6000RS | 10 mm | 26 mm | 8 mm | 0.02 KG |
| 6001RS | 12 mm | 28 mm | 8 mm | 0.02 KG |
| 6002RS | 15 mm | 32 mm | 9 mm | 0.03 KG |
| 6003RS | 17 mm | 35 mm | 10 mm | 0.04 KG |
| 6004RS | 20 mm | 42 mm | 12 mm | 0.07 KG |
| 60/22RS | 22 mm | 44 mm | 12 mm | 0.07 KG |
| 6005RS | 25 mm | 47 mm | 12 mm | 0.08 KG |
| 60/28RS | 28 mm | 52 mm | 12 mm | 0.1 KG |
| 6006RS | 30 mm | 55 mm | 13 mm | 0.12 KG |
| 60/32RS | 32 mm | 58 mm | 13 mm | 0.13 KG |
Due to its numerous excellent properties, deep groove ball bearings have an extremely wide range of applications, covering various fields such as small power electric motors, automotive and tractor gearboxes, machine tool gearboxes, household appliances, instruments and meters, aerospace, medical devices, and many others.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
