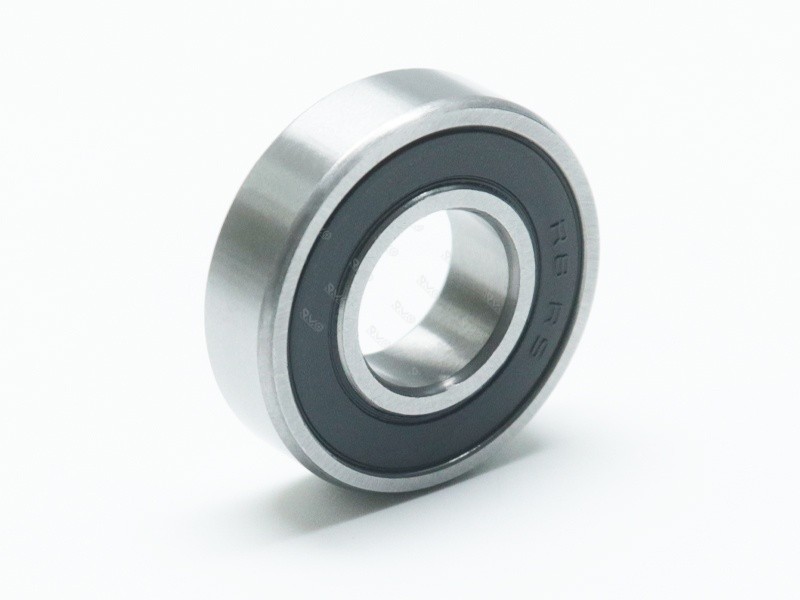

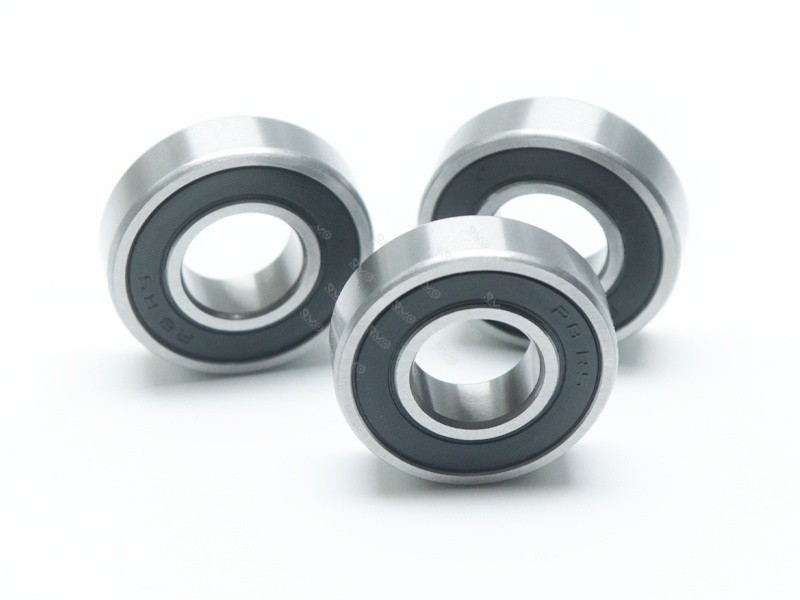

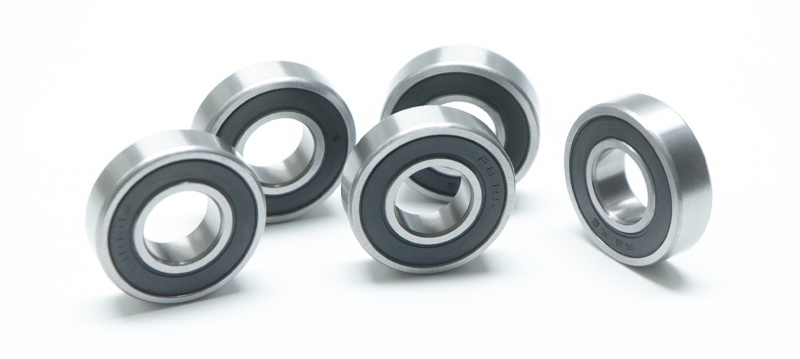

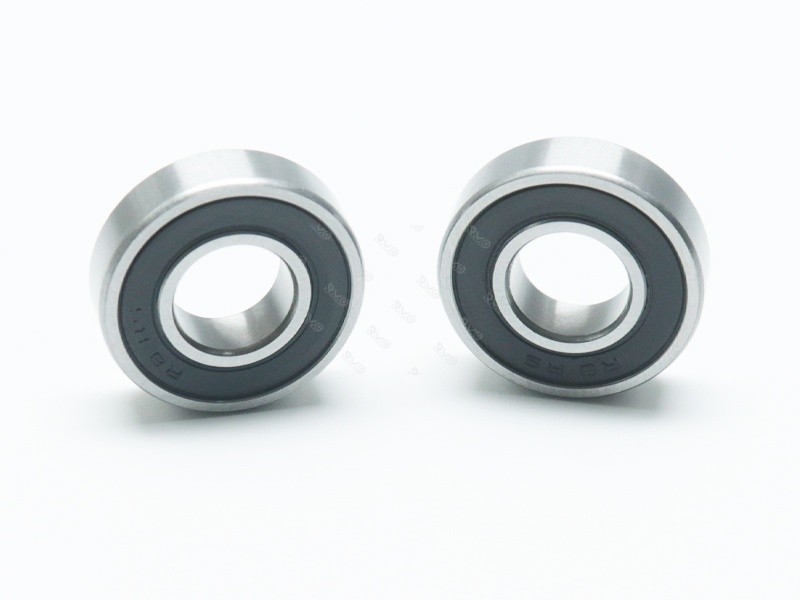

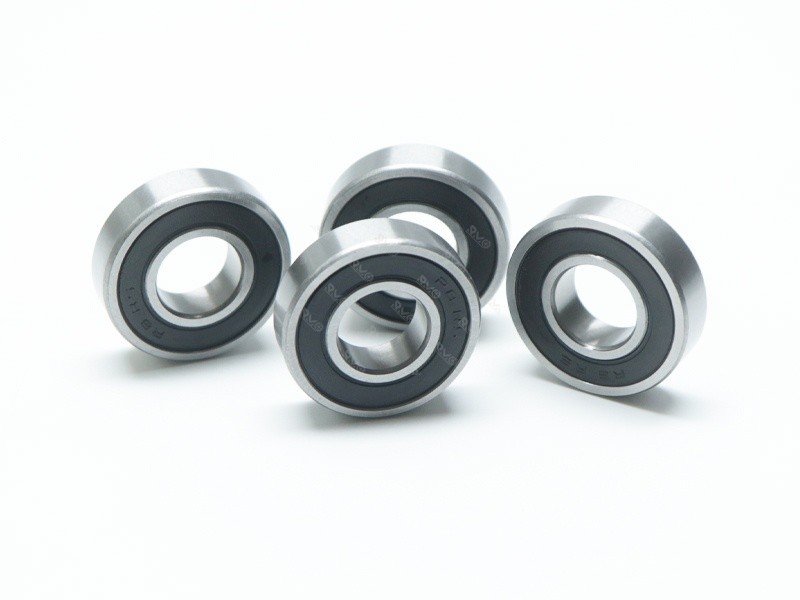

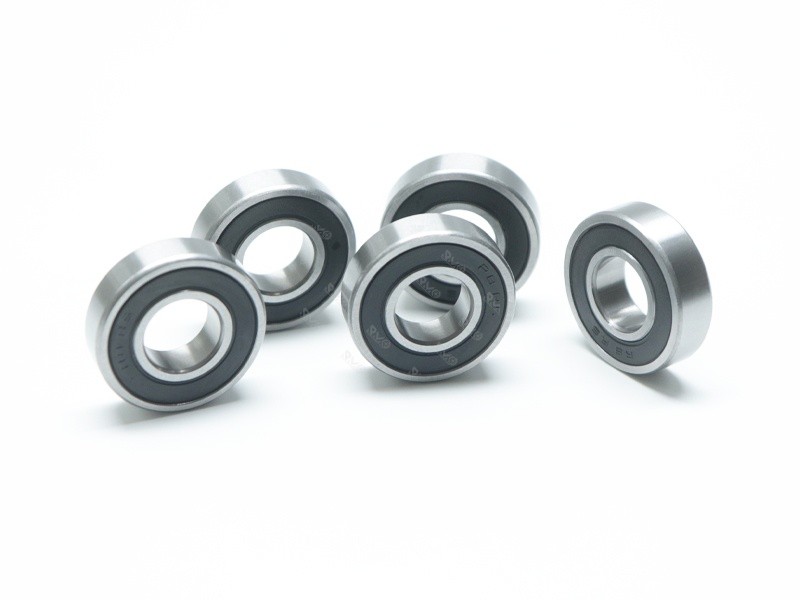

R8-2RS is an inch series deep groove ball bearing, which is commonly used in small transmission equipment.
Item No :
R8 2RSSize (d*D*B) :
12.7x28.58x7.94mmMaterial :
chrome steelLead Time :
3-5 working daysWeight :
0.018KGMOQ :
100 pcsR8 2RS Inch Series Precision Deep Groove Ball Bearings
⚙️Product description:
The 698ZZ is made of bearing steel (such as GCr15), with a rated dynamic load capacity of approximately 1.46 KN and a rated static load capacity of about 0.465 KN. Under grease lubrication, its maximum speed can exceed 15,000 r/min (the exact value may vary slightly due to installation methods and operating temperatures). It comes with a standard precision grade of P0, which meets the requirements of most general applications. Higher precision versions such as P6 (ABEC 3) and P5 (ABEC 5) are also available.
⚙️Technical Parameters:
| Item No. | R8 2RS |
| Branding | Famous brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Material | Stainless steel (420 440C 304 316), chrome steel Gcr15,carbon steel, hybrid ceramic, full ceramic. |
| Lead Time | 3-5 days |
| Precision | p0 p6 p5 p4 |
| Clearance | C2 C0 C3 C4 |
| Vibration | Z1V1, Z2V2, Z3V3 |
| Cage material | Steel, nylon, copper |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% T/T, or 30% T/T In Advance ,70% T/T After Finished Production |
Easy protection and lubrication: The double-sided metal dust-proof cover can firmly prevent dust, fine debris and other impurities from entering the bearing interior, avoiding wear on the raceways and steel balls, and also reducing the loss of pre-filled lubricating grease during factory production, achieving no initial lubrication and extending the service life of the bearing.
Suitable for high-speed operation: The deep groove ball structure design combined with high-quality bearing steel material significantly reduces friction during operation. It can meet the high-speed requirements of small motors and other equipment, and the noise during operation is relatively low, which is suitable for scenarios that require smooth operation.
Flexibility in adaptability: In addition to the regular basic model, different precision grades and materials can be selected according to requirements, which can not only meet the basic transmission needs of ordinary small equipment, but also adapt to the higher requirements for size tolerance and rotational accuracy of some precision equipment.

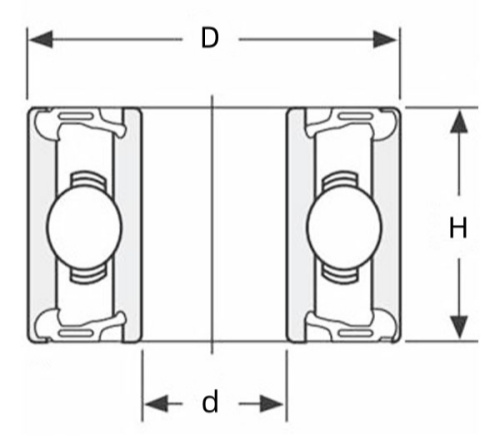

| Model No. | d | D | H | m |
| R8 | 12.7 mm | 28.58 mm | 6.35 mm | 17.67 g |
| R8 RS | 12.7 mm | 28.58 mm | 7.94 mm | 17.67 g |
| R10 | 15.88 mm | 34.92 mm | 7.14 mm | 36.7 g |
| R10 RS | 15.88 mm | 34.92 mm | 8.73 mm | 36.7 g |
| R12 | 19.05 mm | 41.28 mm | 7.94 mm | 45.32 g |
| R12 RS | 19.05 mm | 41.28 mm | 11.11 mm | 45.32 g |
| Z9504C | 19.06 mm | 45.22 mm | 15.49 mm | 78 g |
| Z9504C RS | 19.06 mm | 45.22 mm | 7.94 mm | 78 g |
| R14 | 22.22 mm | 47.62 mm | 9.52 mm | 72.5 g |
| R14 RS | 22.22 mm | 47.62 mm | 12.7 mm | 72.5 g |
| R16 | 25.4 mm | 50.8 mm | 9.52 mm | 86.1 g |
| R16 RS | 25.4 mm | 50.8 mm | 12.7 mm | 86.1 g |
| R18 | 28.58 mm | 53.98 mm | 9.52 mm | 122.36 g |
| R18 RS | 28.58 mm | 53.98 mm | 12.7 mm | 122.36 g |
| R20 | 31.75 mm | 57.15 mm | 9.52 mm | 136 g |
| R20 RS | 31.75 mm | 57.15 mm | 12.7 mm | 136 g |
| R22 | 34.92 mm | 63.5 mm | 11.11 mm | 208.47 g |
| R22 RS | 34.92 mm | 63.5 mm | 14.29 mm | 208.47 g |
| R24 | 38.1 mm | 66.68 mm | 11.11 mm | 172 g |
| R24 RS | 292.1 mm | 66.68 mm | 14.29 mm | 172 g |
This bearing has a very wide range of applications due to its compact size and stable performance. In the industrial field, it can be used in devices such as miniature motors, rotor pumps, woodworking machines, etc.; in consumer products, it is suitable for RC models like remote-controlled cars and drones, as well as electric tools; in the home appliance and automotive sectors, it can be used in some small household appliance transmission components and components related to automotive electric power steering systems, etc.; it is also commonly found in printers, small automated machinery, and other equipment that requires a compact transmission structure.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
