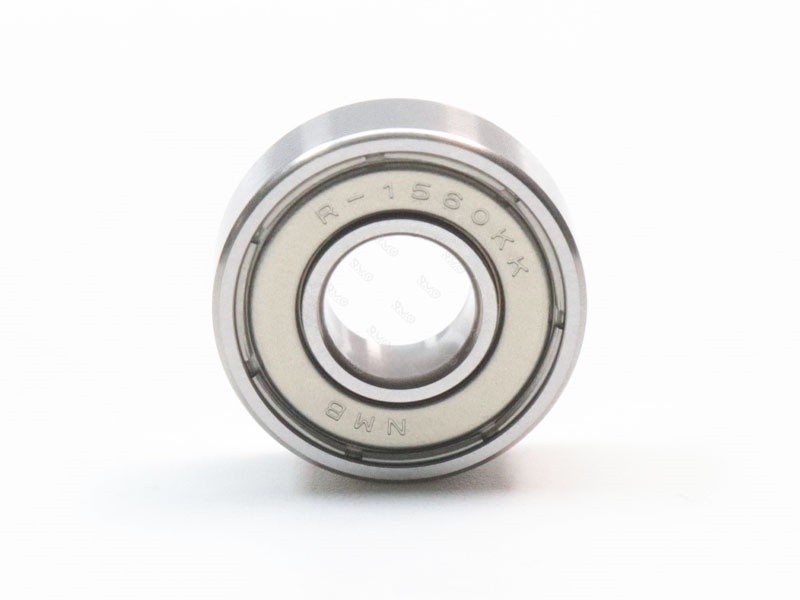

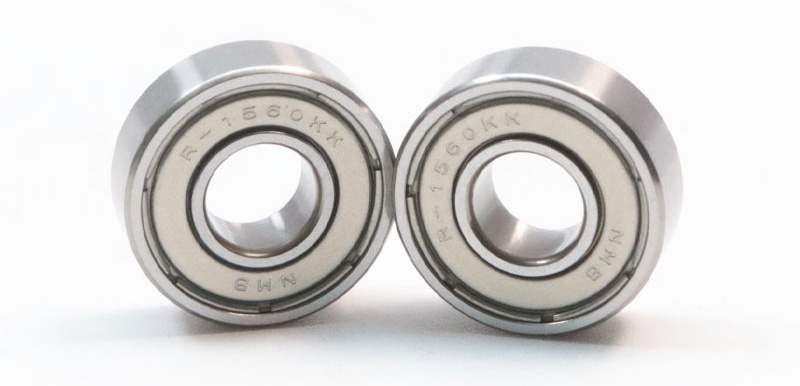

696ZZ Quality Miniature Deep Groove Ball Bearing for Printer
696ZZ P6 grade miniature deep groove ball bearing, which has more advantages in terms of operational accuracy and stability.
Item No :

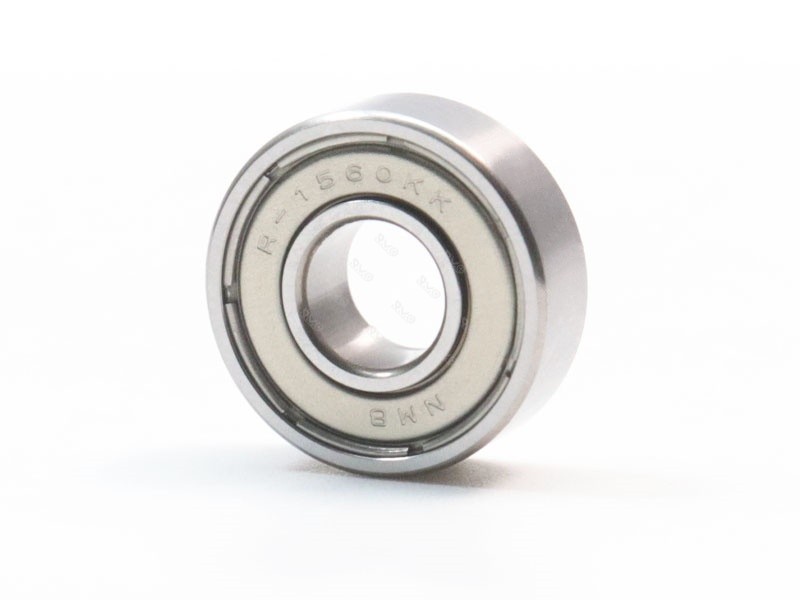

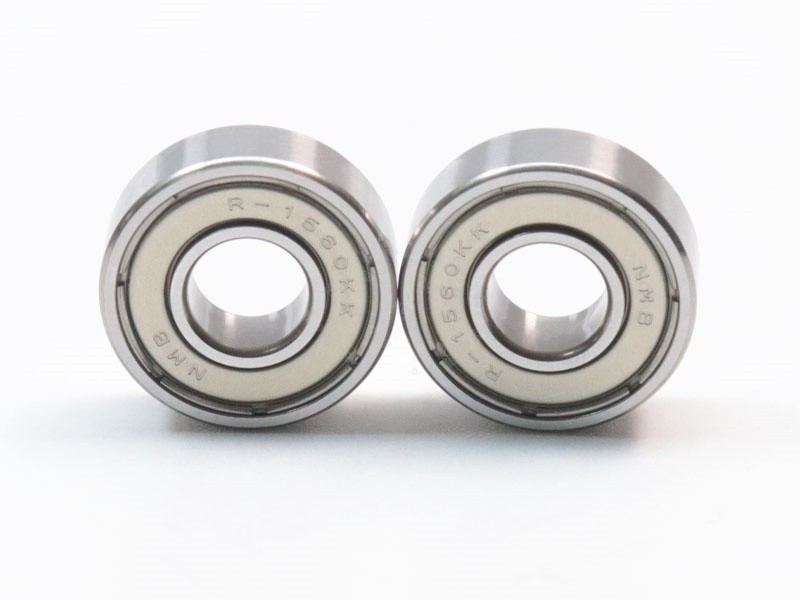

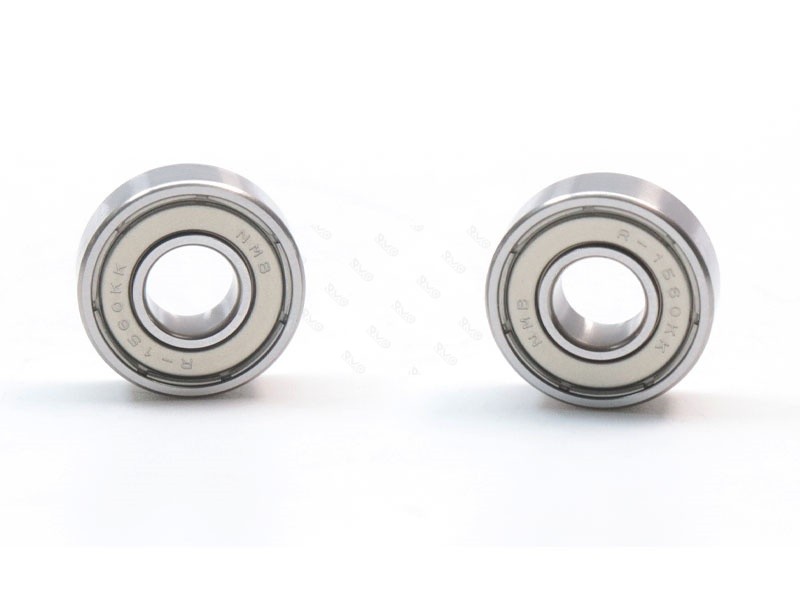

R-1560ZZ 696ZZ 619/6Size (d*D*B) :

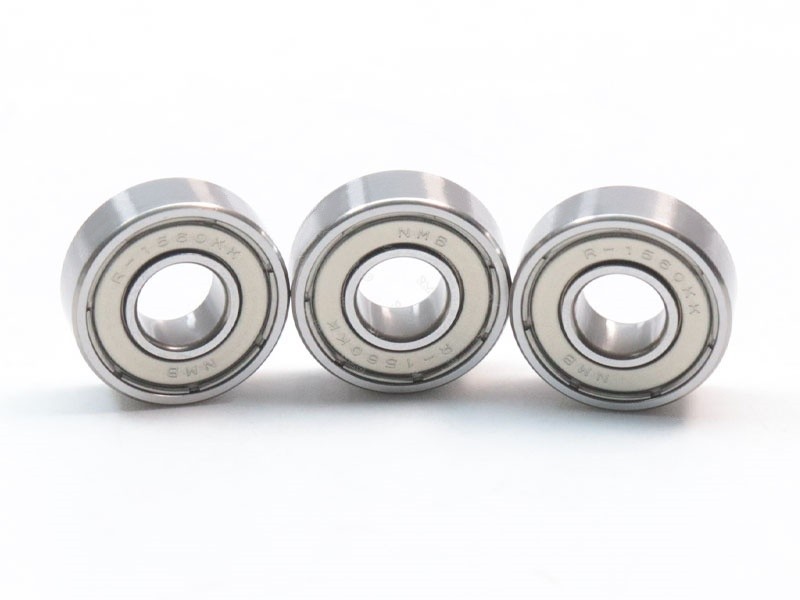

6x15x5mmMaterial :
chrome steelPrecision :
P6Lead Time :
3-5 working days696ZZ Quality Miniature Deep Groove Ball Bearing for Printer
⚙️Product description:
The material of 696ZZ is bearing steel (GCr15), which has excellent wear resistance and hardness. The cage type is a steel stamping cage, suitable for high-speed operating conditions.
Rated load: The basic rated dynamic load is approximately 0.884 KN, and the rated static load is approximately 0.27 KN. It can meet the light to moderate radial load and small axial load requirements of small equipment.
Limiting speed: Under grease lubrication, it is approximately 37,000 - 40,000 r/min, and with oil lubrication, it can reach 44,000 - 45,000 r/min.
The weight is approximately 3.9g, and the lightweight feature is suitable for the weight control requirements of micro devices.
Operating temperature: -20℃ to +120℃. Specific temperature adjustment needs to be combined with the performance of the lubricating grease.
⚙️Technical Parameters:
| Item No. | 696ZZ |
| Branding | Famous brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Material | Stainless steel (420 440C 304 316), chrome steel Gcr15,carbon steel, hybrid ceramic, full ceramic. |
| Lead Time | 3-5 days |
| Precision | p0 p6 p5 p4 |
| Clearance | C2 C0 C3 C4 |
| Vibration | Z1V1, Z2V2, Z3V3 |
| Cage material | Steel, nylon, copper |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% T/T, or 30% T/T In Advance ,70% T/T After Finished Production |
High Precision Level: The P6 level belongs to a higher precision grade. Compared to the common P0 level, it has better dimensional tolerance and rotational accuracy, which can effectively reduce eccentricity and vibration during operation, meeting the strict requirements for transmission accuracy of precision instruments and low-noise motors and other equipment.
Stable Protection and Lubrication: The design of the double-sided metal dust-proof cover (ZZ) can not only prevent dust, debris, etc. from entering the bearing interior, avoiding wear on the raceways and steel balls, but also reduce the loss of pre-filled lubricating grease inside, extending the service life of the bearing in complex working conditions, and there is no need for additional initial lubrication.
High Speed Compatibility: The compact structure combined with high-quality bearing steel material enables it to achieve high-speed operation under grease lubrication or oil lubrication conditions, while operating with low noise, meeting the high-speed and low-noise requirements of micro motors and precision transmission mechanisms.

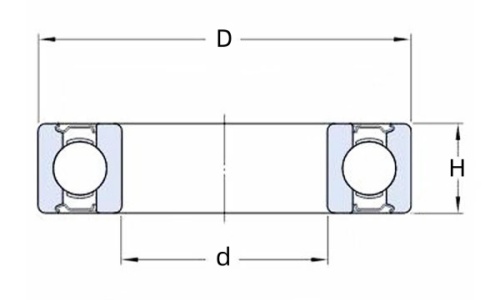

| Model No. | d | D | H | m |
| 694-2Z | 4 mm | 11 mm | 4 mm | 1.7 g |
| 695-2Z | 5 mm | 13 mm | 4 mm | 2.3 g |
| 696-2Z | 6 mm | 15 mm | 5 mm | 3.9 g |
| 697-2Z | 7 mm | 17 mm | 5 mm | 4.9 g |
| 698-2Z | 8 mm | 19 mm | 6 mm | 7.1 g |
| 699-2Z | 9 mm | 20 mm | 6 mm | 7.6 g |
This bearing, with its miniature size, high precision and stable operating performance, is widely used in various small-sized equipment that have requirements for precision and rotational speed, such as low-noise micro motors, electronic precision instruments, electric scooters, electric shears, etc. It is also suitable for scenarios that require precise transmission, such as printers, financial equipment, medical devices, and is also a commonly used component in some small automated machinery and light industrial equipment.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
