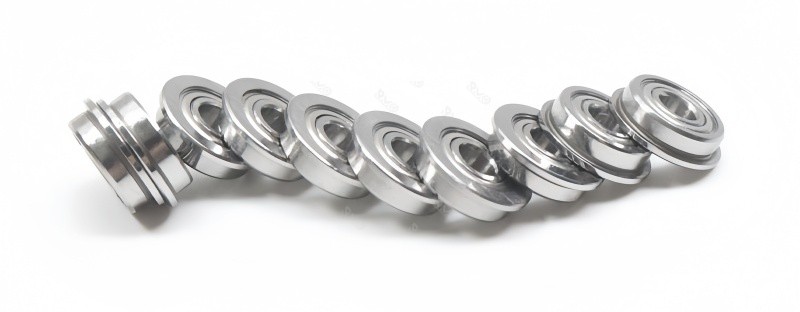

F695ZZ Deep Groove Ball Bearing with Flange For Toy Model
Item No :
F695ZZSize (d*D*B) :
5x13x4x15mmLead Time :
3-5 daysWeight :
0.003KGShipping Port :
Guangzhou, Ningbo, ShanghaiMOQ :
100 pcs
| Item No. | F695ZZ |
| Branding | famous brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Material | carbon steel, hybrid ceramic, full ceramic,GCR15,stainless steel (420 440C 304 316) |
| Lead Time | 3-5 days |
| Precision | p0 p6 p5 p4 |
| Clearance | C2 C0 C3 C4 |
| Vibration | Z1V1, Z2V2, Z3V3 |
| Cage material | Steel, nylon, copper |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% T/T, or 30% T/T In Advance ,70% T/T After Finished Production |
Rated dynamic load: approximately 1080N (varies slightly by brand).
Rated static load: approximately 430N (varies slightly by brand).
Limiting speed: approximately 43,000 r/min with grease lubrication and approximately 50,000 r/min with oil lubrication (varies slightly by brand).

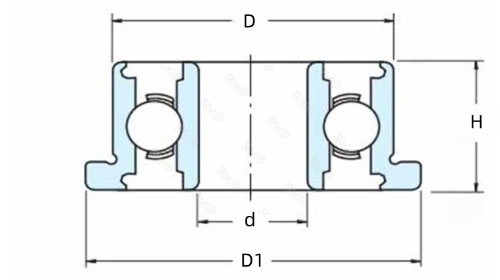

| Bearings No. | ID(d*D*H)mm | Weight (KG) | Bearings No. | ID(d*D*H)mm | Weight (KG) |
| F682ZZ | 2*5*2.3 | 0.001 | MF115ZZ | 5*11*4 | 0.001 |
| F683ZZ | 3*7*3 | 0.001 | MF106ZZ | 6*10*3 | 0.001 |
| F684ZZ | 4*8*3 | 0.001 | MF126ZZ | 6*12*4 | 0.002 |
| F685ZZ | 5*11*5 | 0.002 | MF117ZZ | 7*11*3 | 0.002 |
| F686ZZ | 6*13*5 | 0.003 | MF137ZZ | 7*13*4 | 0.003 |
| F687ZZ | 7*14*5 | 0.0035 | MF128ZZ | 8*12*3.5 | 0.003 |
| F688ZZ | 8*16*5 | 0.0045 | MF148ZZ | 8*14*4 | 0.009 |
| F689ZZ | 9*17*5 | 0.005 | F626ZZ | 6*19*6 | 0.009 |
| F692ZZ | 2*6*3 | 0.001 | MF84ZZ | 4*8*3 | 0.001 |
| F693ZZ | 3*8*4 | 0.002 | FR6ZZ | 9.525*22.225*7.142 | 0.006 |
| F694ZZ | 4*11*4 | 0.003 | F605ZZ | 5*14*5 | 0.004 |
| F695ZZ | 5*13*4 | 0.003 | MF74ZZ | 4*7*2.5 | 0.001 |
| F696ZZ | 6*15*5 | 0.004 | F608ZZ | 8*22*5 | 0.024 |
| F697ZZ | 7*17*5 | 0.006 | F606ZZ | 6*17*6 | 0.007 |
| F698ZZ | 8*19*6 | 0.008 | F625ZZ | 5*16*5 | 0.005 |
| F699ZZ | 9*20*6 | 0.002 | F624ZZ | 4*13*5 | 0.002 |
| MF52ZZ | 2*5*2.5 | 0.0005 | F623ZZ | 3*10*4 | 0.023 |
| MF72ZZ | 2*7*2.5 | 0.0005 | FR8ZZ | 12.7*28.575*7.938 | 0.025 |
| MF82ZZ | 2*8*2.5 | 0.001 | F607 | 7*19*6 | 0.01 |
| MF63ZZ | 3*6*2.5 | 0.001 | FR168 | 6.35*9.52*3.18 | 0.005 |
| MF104ZZ | 4*10*4 | 0.001 | SFRW168ZZ | 3.175*9.525*2.778 | 0.007 |
| MF85ZZ | 5*8*2.5 | 0.001 | F6801 | 12*21*5 | 0.006 |
| MF95ZZ | 5*9*3 | 0.002 | F6202ZZ | 15*35*11 | 0.05 |
| MF105ZZ | 5*10*4 | 0.0009 | F6800ZZ | 10*19*5 | 0.007 |
bearing for sweeping robot
bearing for monitoring PTZ
bearing for Reduced-fat rope
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
6×12×4mm MR126ZZ bearings are made of chrome steel with high precision and low noise. We have large stock and can provide free samples for testing
Details
R168ZZ bearing is made of chrome steel. Excellent performance and low noise level. We have it in stock and can provide free sample for testing.
Details
It's composed of an inner ring, an outer ring, steel balls and a cage.
Details
Similar to standard single-row deep groove ball bearings, it is composed of components such as inner ring, outer ring, steel balls and cage.
Details
This nylon cage is suitable for 51105 thrust ball bearings and is made of nylon PA66 material.
Details
