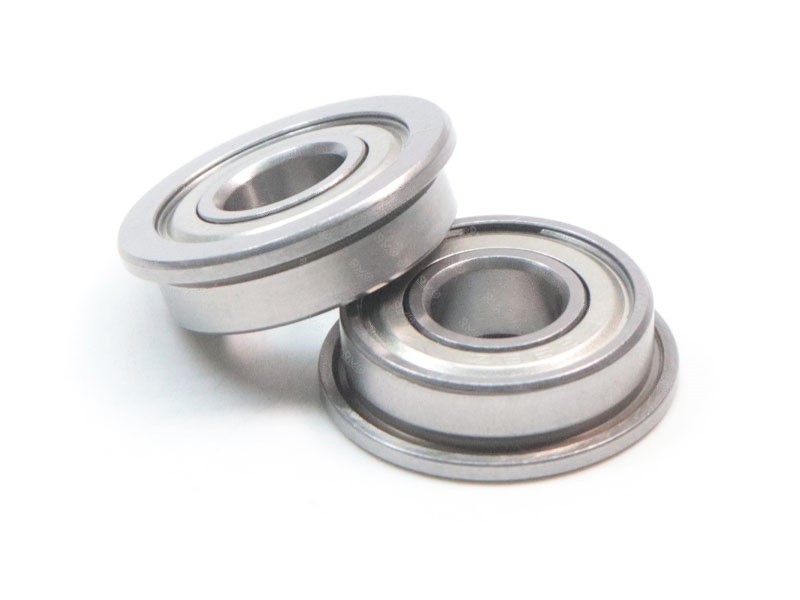

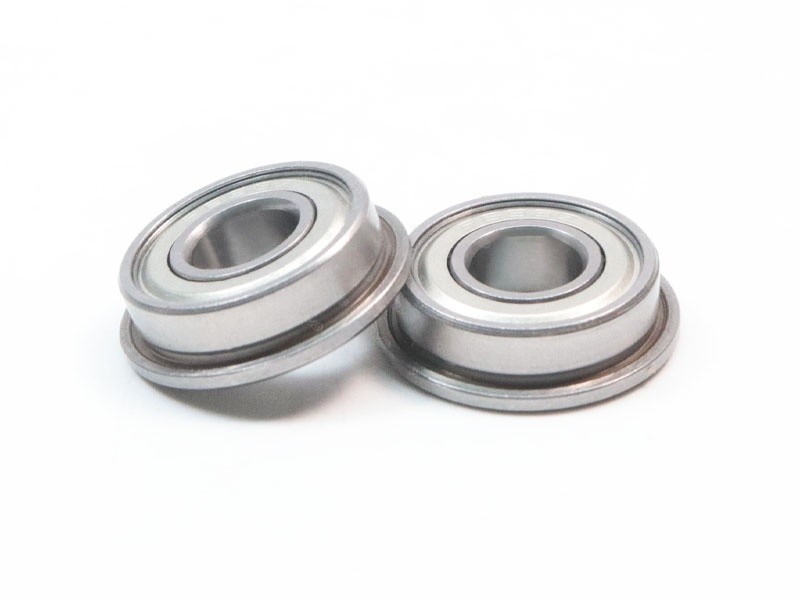

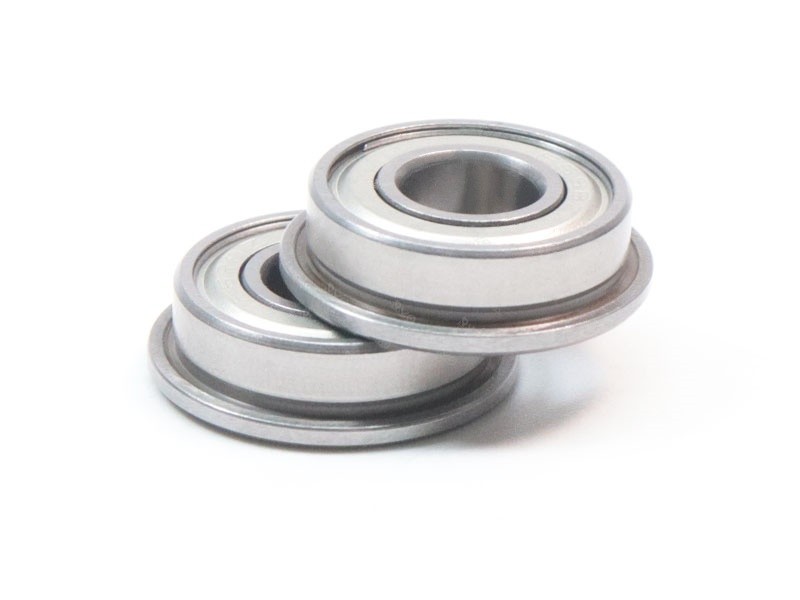

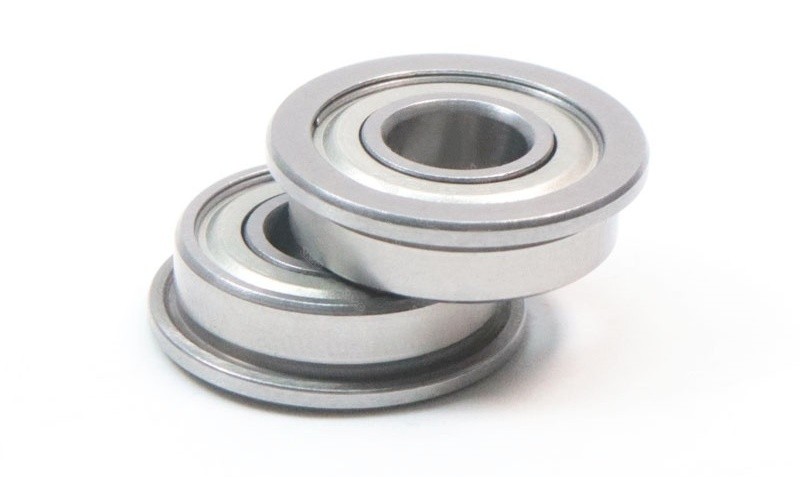

Item No :
F698ZZSize (d*D*B) :
8x19x6x22mmLead Time :
3-5 daysWeight :
0.008KGShipping Port :
Guangzhou, Ningbo, ShanghaiMOQ :
100 pcs
| Item No. | F698ZZ |
| Branding | famous brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Material | carbon steel, hybrid ceramic, full ceramic,GCR15,stainless steel (420 440C 304 316) |
| Lead Time | 3-5 days |
| Precision | p0 p6 p5 p4 |
| Clearance | C2 C0 C3 C4 |
| Vibration | Z1V1, Z2V2, Z3V3 |
| Cage material | Steel, nylon, copper |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% T/T, or 30% T/T In Advance ,70% T/T After Finished Production |
Rated load: The basic rated dynamic load Cr is 1902N, and the basic rated static load C0r is 734N (varies slightly by brand).
Limit speed: The limit speed with grease lubrication is 36000 rpm, and the limit speed with oil lubrication is 43000 rpm (varies slightly by brand).
Accuracy grade: The accuracy grade is usually ABEC-1 level, and products with higher accuracy grades such as ABEC-3, ABEC-5, ABEC-7 can also be provided.
| Bearings No. | ID(d*D*H)mm | Weight (KG) | Bearings No. | ID(d*D*H)mm | Weight (KG) |
| F682ZZ | 2*5*2.3 | 0.001 | MF115ZZ | 5*11*4 | 0.001 |
| F683ZZ | 3*7*3 | 0.001 | MF106ZZ | 6*10*3 | 0.001 |
| F684ZZ | 4*8*3 | 0.001 | MF126ZZ | 6*12*4 | 0.002 |
| F685ZZ | 5*11*5 | 0.002 | MF117ZZ | 7*11*3 | 0.002 |
| F686ZZ | 6*13*5 | 0.003 | MF137ZZ | 7*13*4 | 0.003 |
| F687ZZ | 7*14*5 | 0.0035 | MF128ZZ | 8*12*3.5 | 0.003 |
| F688ZZ | 8*16*5 | 0.0045 | MF148ZZ | 8*14*4 | 0.009 |
| F689ZZ | 9*17*5 | 0.005 | F626ZZ | 6*19*6 | 0.009 |
| F692ZZ | 2*6*3 | 0.001 | MF84ZZ | 4*8*3 | 0.001 |
| F693ZZ | 3*8*4 | 0.002 | FR6ZZ | 9.525*22.225*7.142 | 0.006 |
| F694ZZ | 4*11*4 | 0.003 | F605ZZ | 5*14*5 | 0.004 |
| F695ZZ | 5*13*4 | 0.003 | MF74ZZ | 4*7*2.5 | 0.001 |
| F696ZZ | 6*15*5 | 0.004 | F608ZZ | 8*22*5 | 0.024 |
| F697ZZ | 7*17*5 | 0.006 | F606ZZ | 6*17*6 | 0.007 |
| F698ZZ | 8*19*6 | 0.008 | F625ZZ | 5*16*5 | 0.005 |
| F699ZZ | 9*20*6 | 0.002 | F624ZZ | 4*13*5 | 0.002 |
| MF52ZZ | 2*5*2.5 | 0.0005 | F623ZZ | 3*10*4 | 0.023 |
| MF72ZZ | 2*7*2.5 | 0.0005 | FR8ZZ | 12.7*28.575*7.938 | 0.025 |
| MF82ZZ | 2*8*2.5 | 0.001 | F607 | 7*19*6 | 0.01 |
| MF63ZZ | 3*6*2.5 | 0.001 | FR168 | 6.35*9.52*3.18 | 0.005 |
| MF104ZZ | 4*10*4 | 0.001 | SFRW168ZZ | 3.175*9.525*2.778 | 0.007 |
| MF85ZZ | 5*8*2.5 | 0.001 | F6801 | 12*21*5 | 0.006 |
| MF95ZZ | 5*9*3 | 0.002 | F6202ZZ | 15*35*11 | 0.05 |
| MF105ZZ | 5*10*4 | 0.0009 | F6800ZZ | 10*19*5 | 0.007 |
bearing for sweeping robot
bearing for monitoring PTZ
bearing for Reduced-fat rope
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
6×12×4mm MR126ZZ bearings are made of chrome steel with high precision and low noise. We have large stock and can provide free samples for testing
Details
R168ZZ bearing is made of chrome steel. Excellent performance and low noise level. We have it in stock and can provide free sample for testing.
Details
It's composed of an inner ring, an outer ring, steel balls and a cage.
Details
Similar to standard single-row deep groove ball bearings, it is composed of components such as inner ring, outer ring, steel balls and cage.
Details
This nylon cage is suitable for 51105 thrust ball bearings and is made of nylon PA66 material.
Details
