Item No :
F5-12Size (d*D*B) :
5x12x4mmLead Time :
3-5 daysWeight :
0.002KGShipping Port :
GuangZhou, NingBo, ShangHaiMOQ :

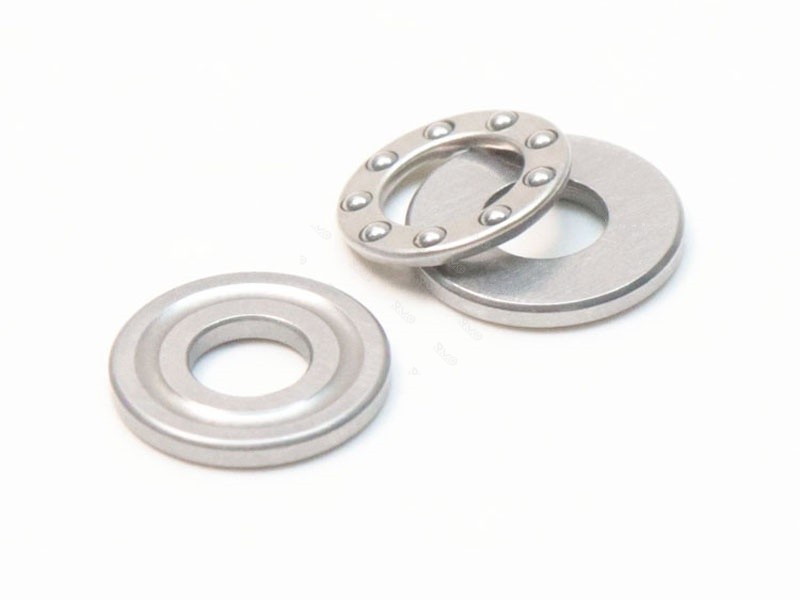

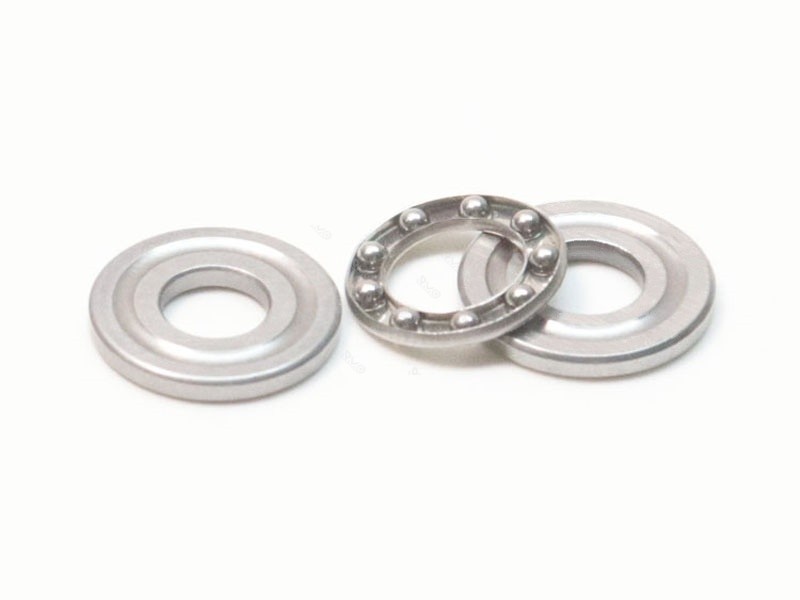

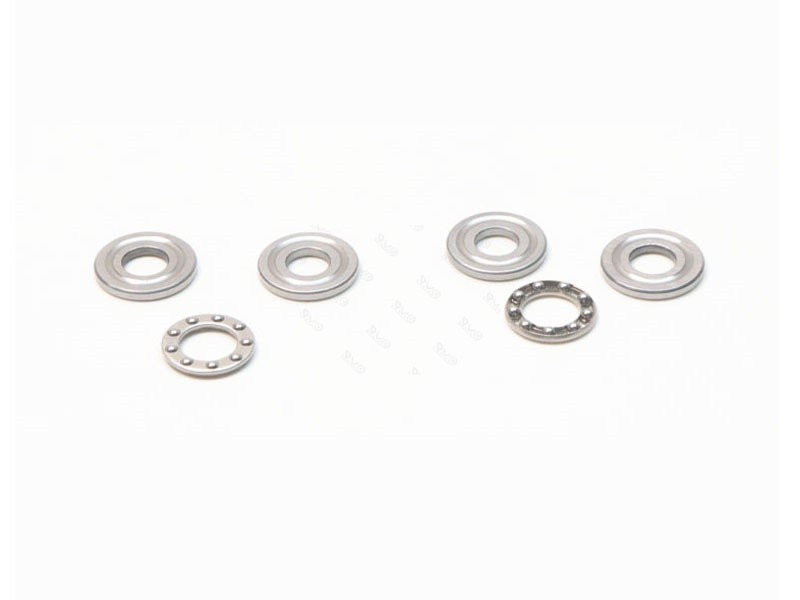

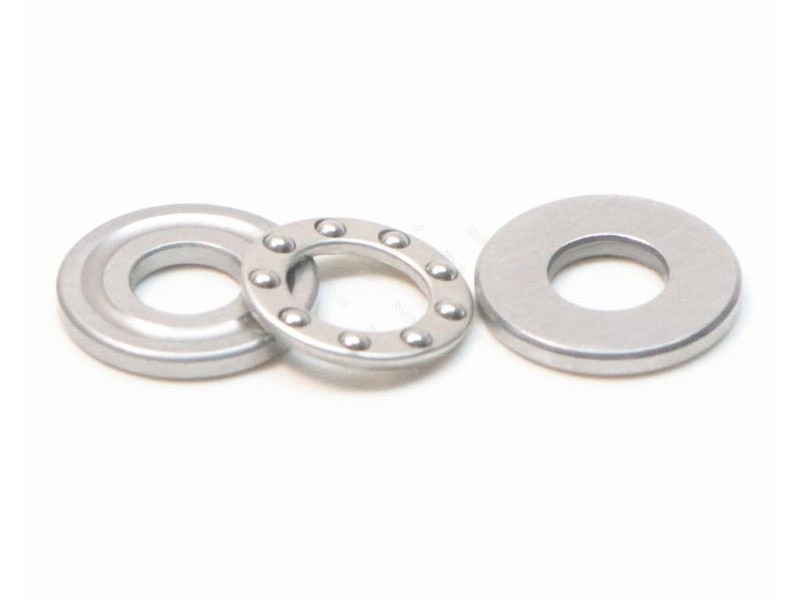

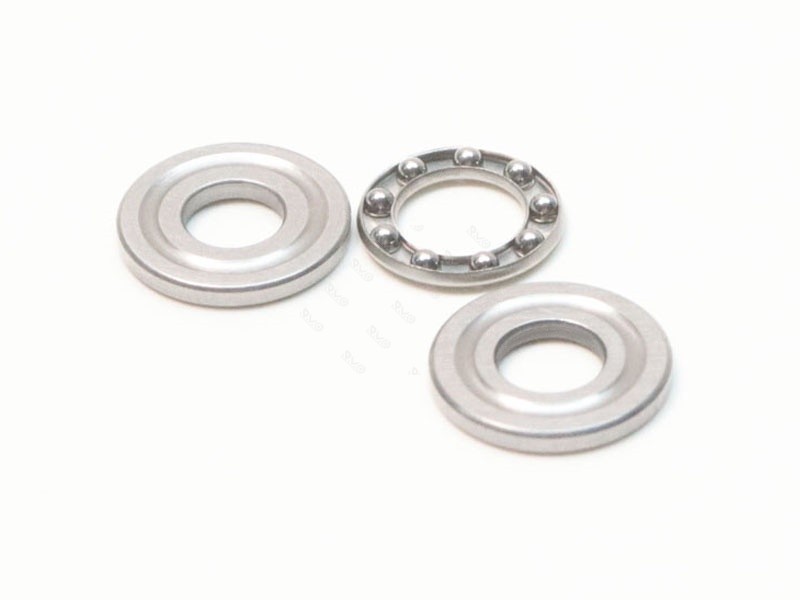

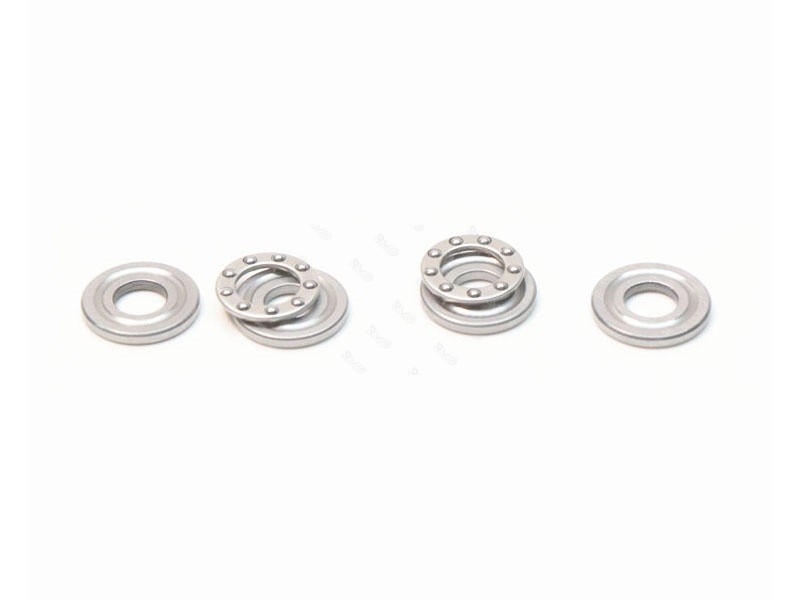

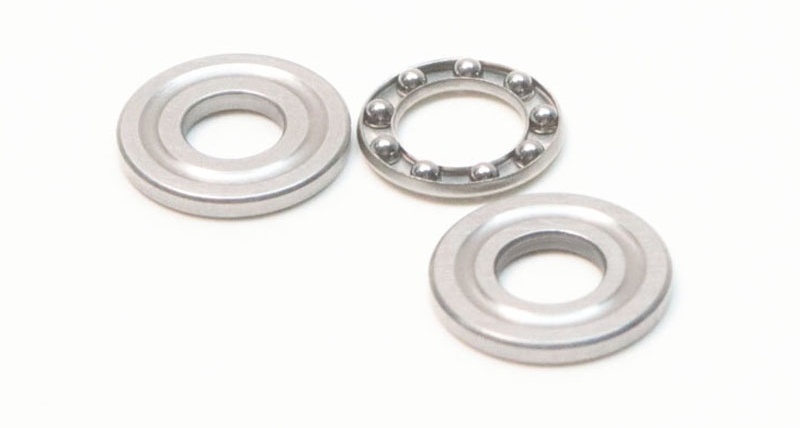

100 pcs5x12x4mm F5-12 Micro Flat Thrust Ball Bearing
⚙️Structural features:
Separable design: The F5-12 bearing is a separable type bearing. Its inner and outer rings can be installed separately. This design is convenient for installation and disassembly, and it has significant advantages in some equipment where frequent maintenance or component replacement is required.
Unidirectional or bidirectional bearing capacity: A unidirectional thrust bearing can withstand unidirectional axial load, while a bidirectional bearing can withstand bidirectional axial load. Users can choose the appropriate type based on the load direction requirements of the actual application scenario.
Self-aligning performance: The thrust ball bearing with spherical raceway has self-aligning properties. It can eliminate the influence of installation errors and can compensate for deviations caused by inaccurate installation or deformation of the shaft to a certain extent, ensuring the normal operation of the bearing.
| Cage material | Steel, Nylon, Copper |
| Branding | famous brand/RMO/Neutral/OEM |
| Material | Chrome steel(Gcr15) or stainless steel |
| Precision | ABEC-1 ABEC-3 ABEC-5 ABEC-7 |
| Shipping Port | GUANGZHOU,NINGBO,SHANGHAI |
| Payment | 100% T/T or 30% T/T in advance ,70% T/T after finished production |
| Service | Free sample can be provided |
High axial load-bearing capacity: Mainly used to bear axial loads, it can provide a high axial load-bearing capacity within a relatively small space, meeting the force transmission and support requirements of various equipment in the axial direction.
Low friction: The design and manufacturing process of the bearing result in low friction during operation, which can reduce energy loss, improve the efficiency of the equipment, and also help reduce wear and extend the service life of the bearing.
Lower limit speed: The steel balls of the micro one-way thrust bearing are prone to be pushed towards the outer side of the raceway by centrifugal force when operating at high speed, which is likely to cause scratches. Therefore, the limit speed of the F5-12 bearing is relatively low and is not suitable for high-speed operation.

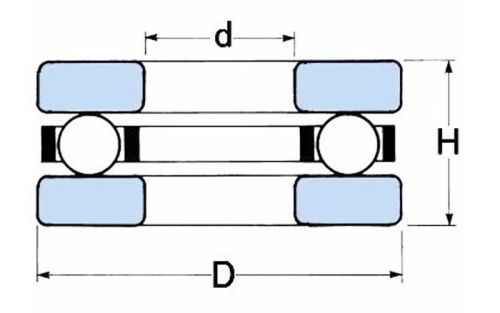

| Model No. | d | D | H | m |
| F2-6 | 2 mm | 6 mm | 3 mm | 0.6 g |
| F2X-7 | 2.5 mm | 7 mm | 3.5 mm | 0.9 g |
| F3-6 | 3 mm | 6 mm | 2.8 mm | 0.6 g |
| F3-8 | 3 mm | 8 mm | 3.5 mm | 0.6 g |
| F4-9 | 4 mm | 9 mm | 4 mm | 1.5 g |
| F4-10 | 4 mm | 10 mm | 4.5 mm | 2 g |
| F5-10 | 5 mm | 10 mm | 4 mm | 2.2 g |
| F5-11 | 5 mm | 11 mm | 4.5 mm | 2.4 g |
| F5-12 | 5 mm | 12 mm | 4 mm | 2.4 g |
| F6-12 | 6 mm | 12 mm | 4.5 mm | 2.5 g |
| F7-15 | 7 mm | 15 mm | 5 mm | 4.4 g |
| F8-14 | 8 mm | 14 mm | 4 mm | 2.5 g |
| F8-16 | 8 mm | 16 mm | 5 mm | 5 g |
| F9-17 | 9 mm | 17 mm | 5 mm | 5.1 g |
| F10-18 | 10 mm | 18 mm | 5.5 mm | 6 g |

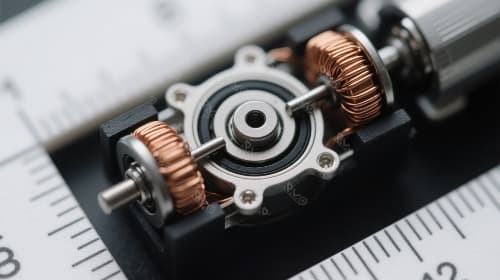

Automotive industry, home appliance industry, industrial machinery, aerospace, medical devices, etc.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
