Item No :
HMK1510 (TA1510)Size (d*D*B) :
15x22x10mmMaterial :
ST14 steel with chrome steel GCr15Lead Time :
3-5 daysWeight :
0.011KGPayment Terms :
100% T/T or 30% T/T before production, 70% before deliveryPackage :
plastic bag, plastic tube or single box+Carton+PalletShipping Port :
Guangzhou, Ningbo, ShanghaiMOQ :

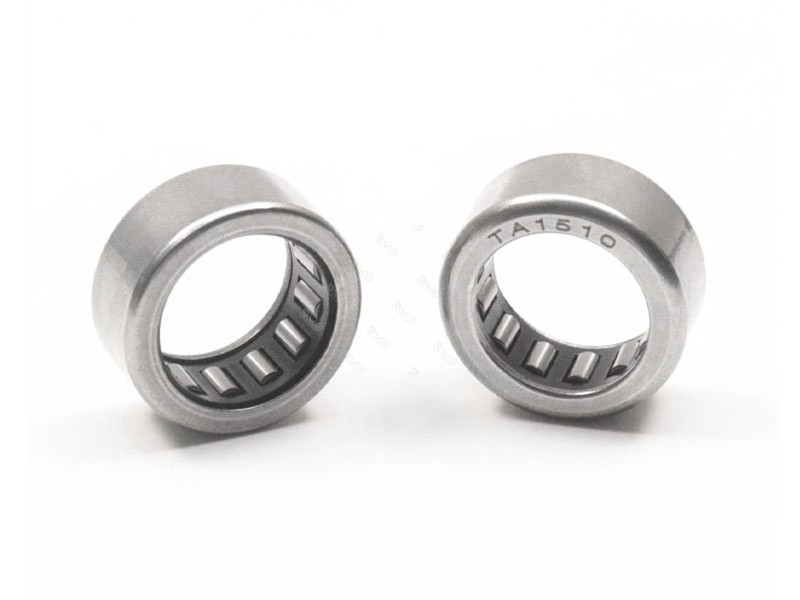

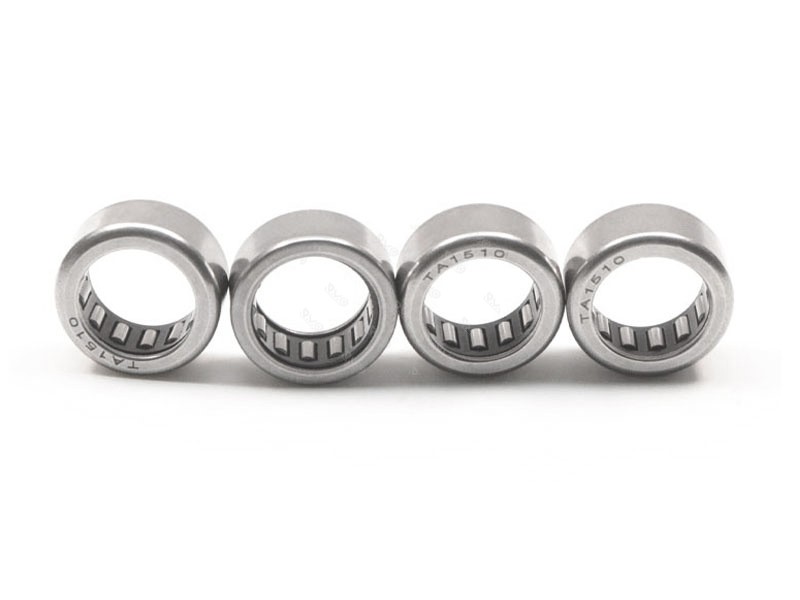

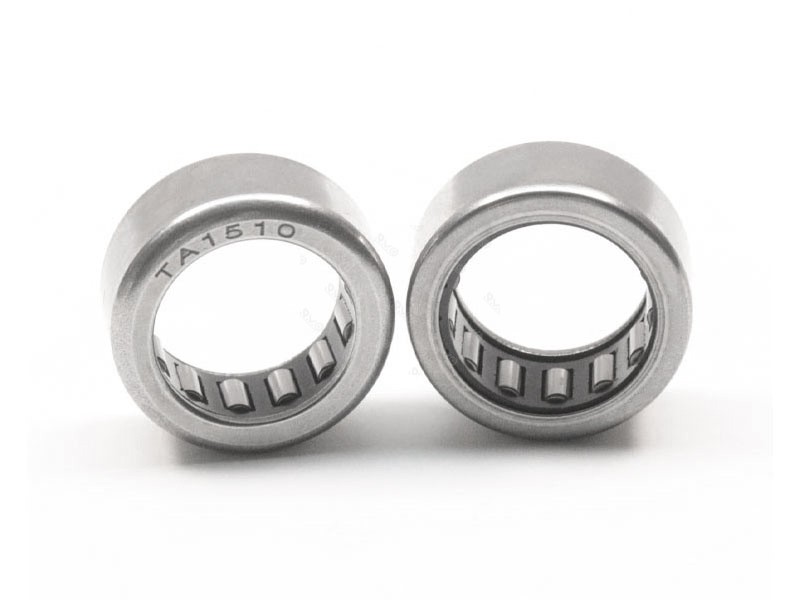

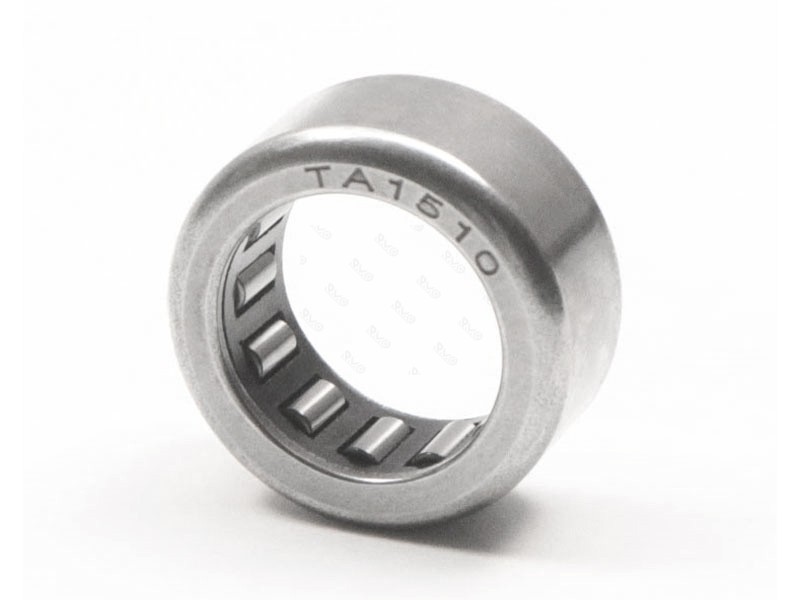

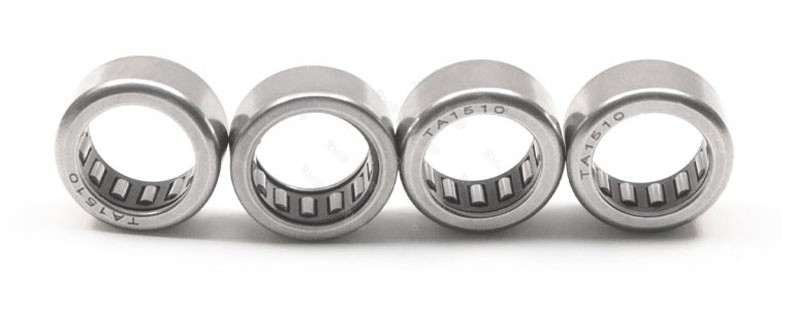

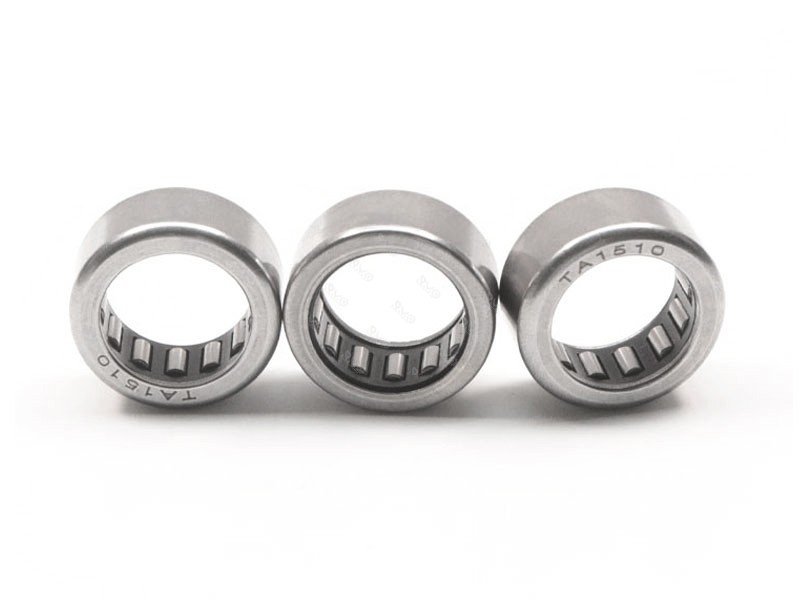

50 PCSHMK1510 Drawn Cup Needle Roller Bearing
⚙️Structural features:
Outer ring design: The outer ring of the HMK1510 needle roller bearing is precisely deep-drawn from thin steel plate, and the raceway is surface-hardened, offering high strength and wear resistance. The outer ring, needle rollers, and cage form an inseparable structure.
Inner ring design: An inner ring is usually not used; instead, the shaft serves as the raceway surface, which saves space and reduces costs.
Cage: A steel plate cage is used to separate the needle rollers, ensuring their uniform distribution and normal operation.
Bearing type: It is an open-type stamped outer ring needle roller bearing without sealing structure, and it uses single-row needle rollers.
Operating temperature range: The normal operating temperature range is between -20℃ and +120℃.
Installation features: The bearings can be simply pressed into a rigid bearing housing with an appropriate fit. Axial fixation does not require retaining rings or other fasteners, making the installation process very simple.

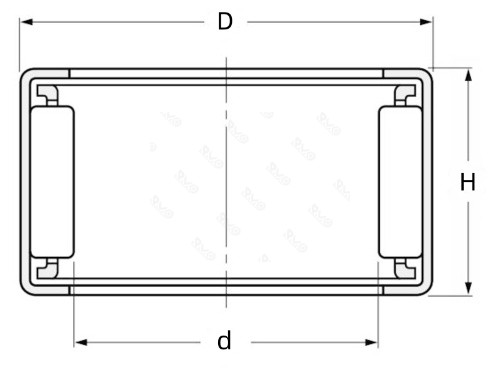

| Model No. | d | D | H | m |
| HMK0810C | 8 mm | 15 mm | 10 mm | 6.7 g |
| HMK0815 | 8 mm | 15 mm | 15 mm | 10 g |
| HMK0820T2 | 8 mm | 15 mm | 20 mm | 13 g |
| HMK0912 | 9 mm | 16 mm | 12 mm | 8.7 g |
| HMK0916 | 9 mm | 16 mm | 16 mm | 12 g |
| HMK1010 | 10 mm | 17 mm | 10 mm | 7.9 g |
| HMK1012 | 10 mm | 17 mm | 12 mm | 9.4 g |
| HMK1015 | 10 mm | 17 mm | 15 mm | 12 g |
| HMK1020 | 10 mm | 17 mm | 20 mm | 16 g |
| HMK1212 | 12 mm | 19 mm | 12 mm | 11 g |
| HMK1215 | 12 mm | 19 mm | 15 mm | 14 g |
| HMK1220 | 12 mm | 19 mm | 20 mm | 18 g |
| HMK1225 | 12 mm | 19 mm | 25 mm | 23 g |
| HMK1416C | 14 mm | 22 mm | 16 mm | 19 g |
| HMK1420C | 14 mm | 22 mm | 20 mm | 24 g |
| HMK1510 | 15 mm | 22 mm | 10 mm | 11 g |
| HMK1512 | 15 mm | 22 mm | 12 mm | 13 g |
| HMK1515C | 15 mm | 22 mm | 15 mm | 16 g |
| HMK1520 | 15 mm | 22 mm | 20 mm | 22 g |
| HMK1525 | 15 mm | 22 mm | 25 mm | 27 g |

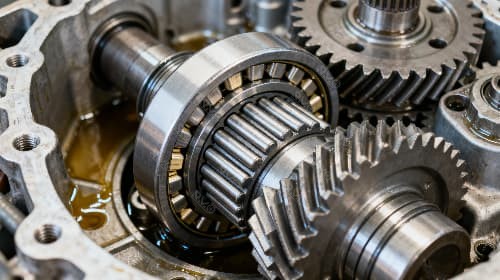

Primarily used in scenarios where the installation space is limited and the shell holes cannot be directly used as rollers. Commonly seen in automotive gearboxes, motorcycle engines, textile machinery, and other fields.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
