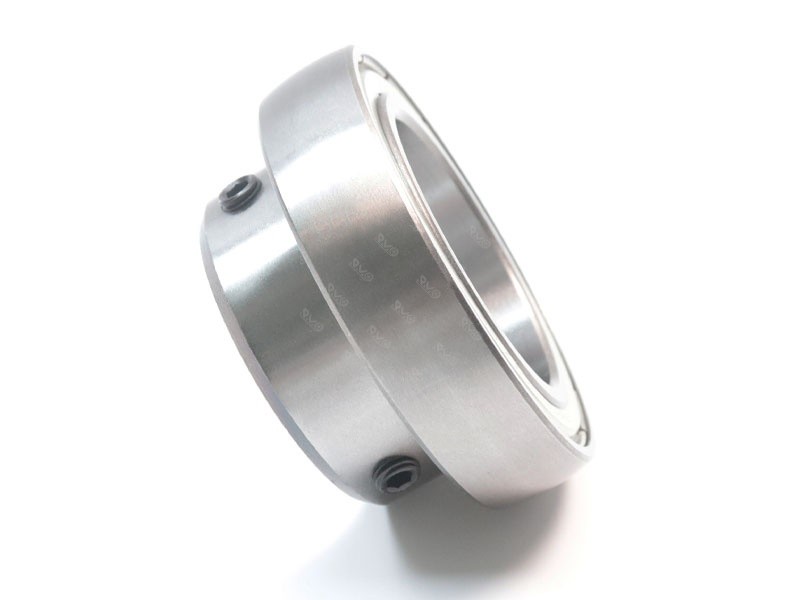

The inner diameter of this bearing is 50mm, which is not a standard 208 series size.
Item No :
SB208-50ZZ CSSize (d*D*B) :
50x80x36.4mmLead Time :
3-5 daysWeight :
0.408KGShipping Port :
Guangzhou, Ningbo, ShanghaiMOQ :
10 pcsPillow Block Insert Bearing SB208-50ZZ CS Outer Spherical Ball Bearing
⚙️Type and Structure:

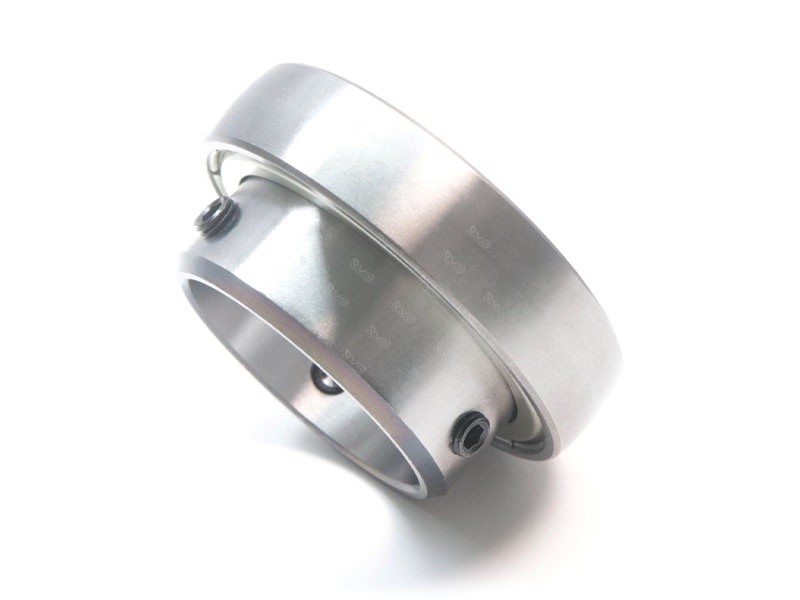

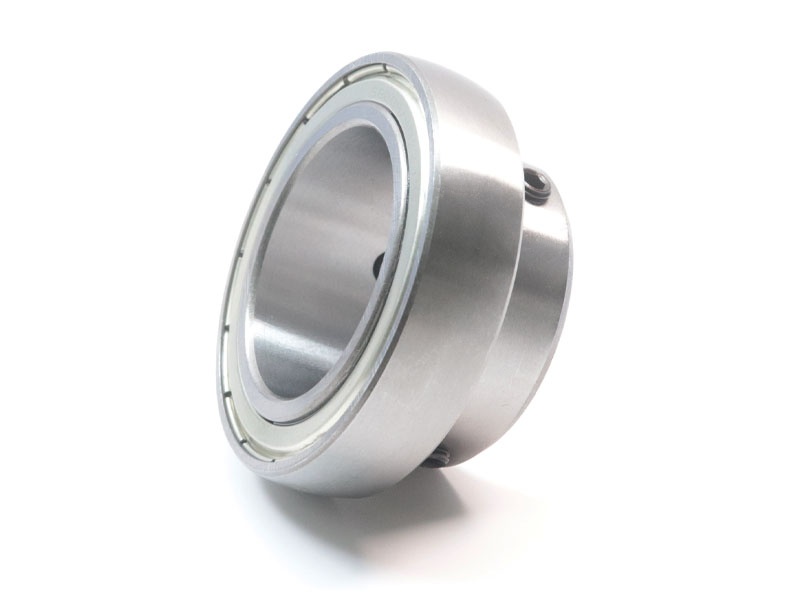

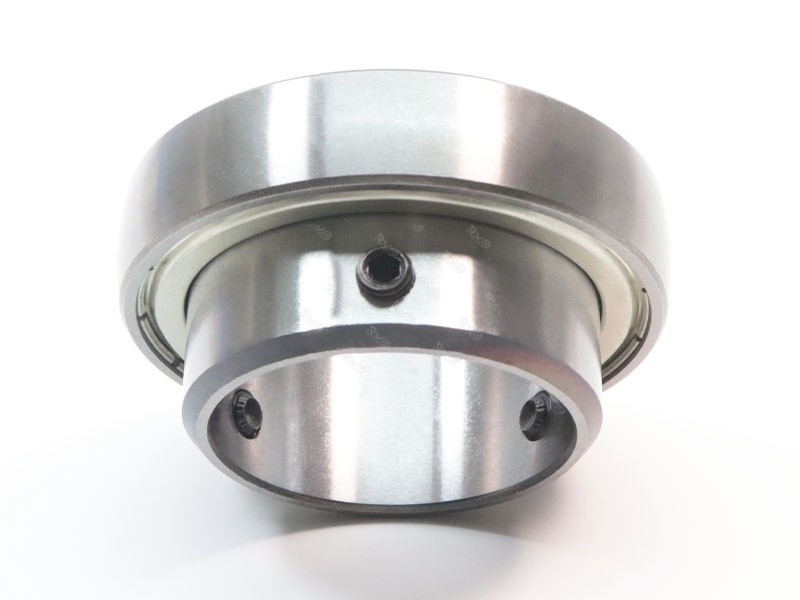

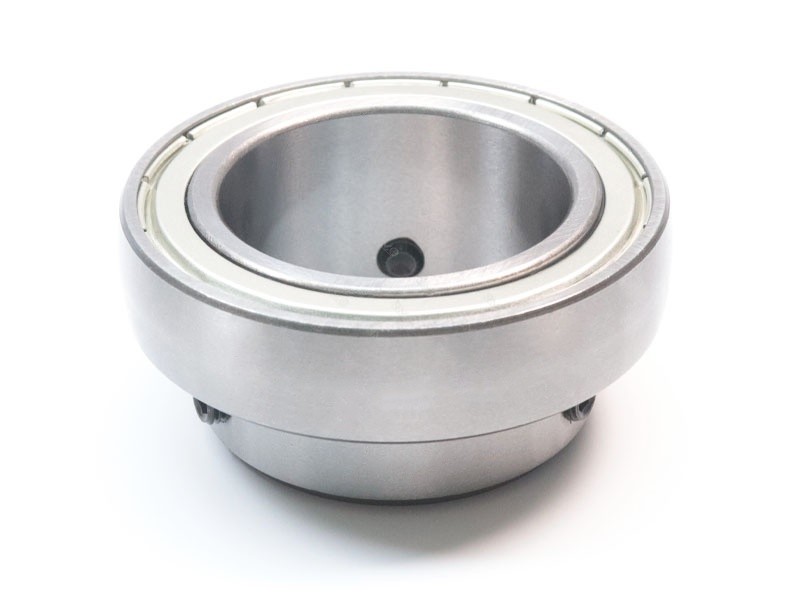

SB208-50ZZ CS is a type of SB insert ball bearing. Its feature is that there is an extension part on one side of the inner ring, usually with two locking devices at 120° angles, used to fix the bearing on the shaft. "ZZ" indicates that metal sealing covers are installed on both sides of the bearing, which can prevent dust, impurities, etc. from entering the interior of the bearing.
SB208-50ZZ CS made of chrome steel GCR15, it has high hardness and wear resistance, and can withstand certain radial loads. The metal sealing covers on both sides can effectively protect the rolling elements and lubricating grease inside the bearing, thereby extending the service life of the bearing.

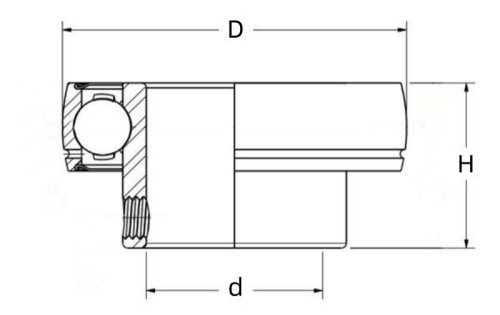

| Model No. | d | D | H | m | Model No. | d | D | H | m | |
| SB201 | 12 mm | 40 mm | 22 mm | 100 g | SB206-18 | 28.58 mm | 62 mm | 30 mm | 260 g | |
| SB201-08 | 12.7 mm | 40 mm | 22 mm | 100 g | SB206 | 30 mm | 62 mm | 30 mm | 250 g | |
| SB202 | 15 mm | 40 mm | 22 mm | 90 g | SB206-19 | 30.16 mm | 62 mm | 30 mm | 250 g | |
| SB202-10 | 15.88 mm | 40 mm | 22 mm | 90 g | SB206-20 | 31.75 mm | 62 mm | 30 mm | 240 g | |
| SB203 | 17 mm | 40 mm | 22 mm | 80 g | SB207-20 | 31.75 mm | 72mm | 32mm | 430 g | |
| SB204-12 | 19.05 mm | 47 mm | 25 mm | 130 g | SB207-21 | 33.34 mm | 72 mm | 32 mm | 420 g | |
| SB204 | 20 mm | 47 mm | 25 mm | 130 g | SB207-22 | 34.92 mm | 72 mm | 32 mm | 380 g | |
| SB205-14 | 22.22 mm | 52 mm | 27 mm | 180 g | SB207 | 35 mm | 72 mm | 32 mm | 380 g | |
| SB205-15 | 23.81 mm | 52 mm | 27 mm | 180 g | SB207-23 | 36.51 mm | 72 mm | 32 mm | 310 g | |
| SB205 | 25 mm | 52 mm | 27 mm | 160 g | SB208-24 | 38.1 mm | 80 mm | 34 mm | 520 g | |
| SB205-16 | 25.4 mm | 52 mm | 27 mm | 160 g | SB208-50 | 50 mm | 80 mm | 36 mm | 408 g | |
| SB206-17 | 26.99 mm | 62 mm | 30 mm | 270 g | SB208 | 40 mm | 80 mm | 34 mm | 500 g |
These bearings are widely used in industries such as textile machinery, ceramic machinery, electrical machinery, chain drive systems, automobiles, mining, metallurgy, chemical industry, food processing and packaging.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
