Its design is suitable for light-load conditions, featuring both ease of installation and cost-effectiveness. It can widely replace cast iron bearing seats of the same specification in low-load scenarios.
Item No :
PP206Size (d*D*B) :
117x66.1x95x38mmLead Time :
3-5 daysWeight :
0.23KGShipping Port :
Guangzhou, Ningbo, ShanghaiMOQ :

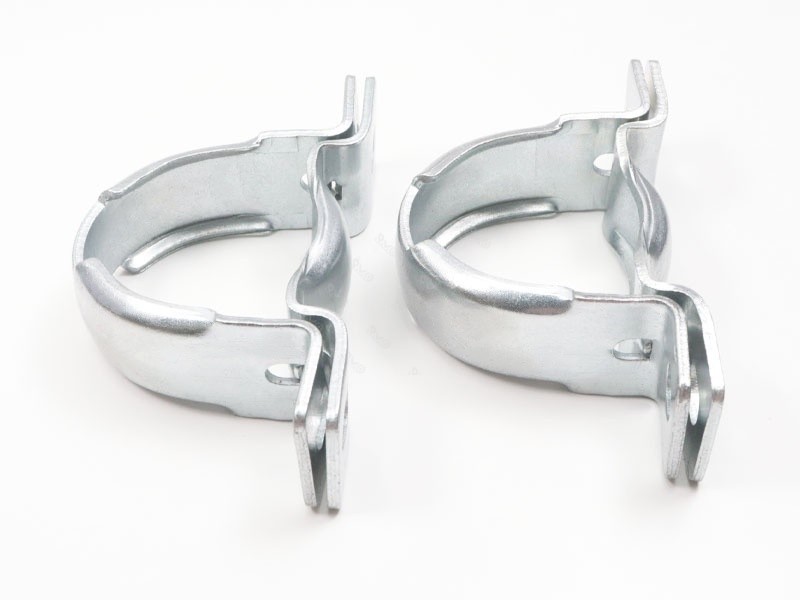

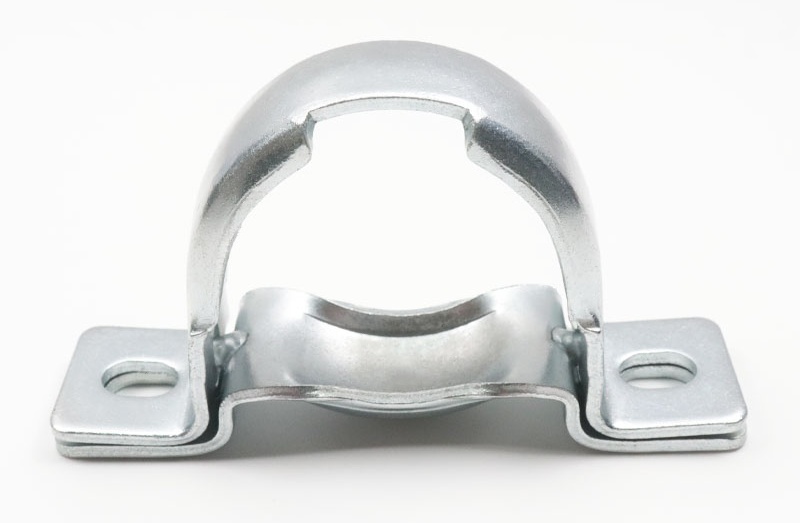

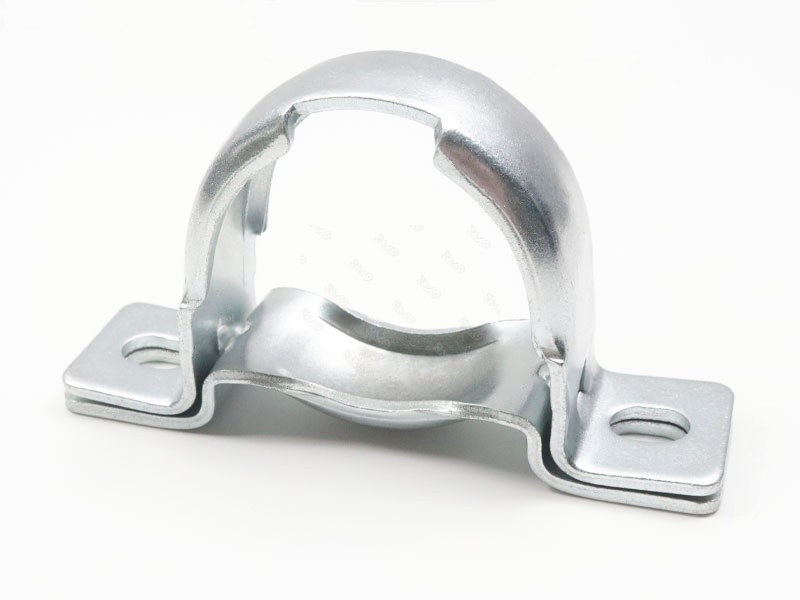

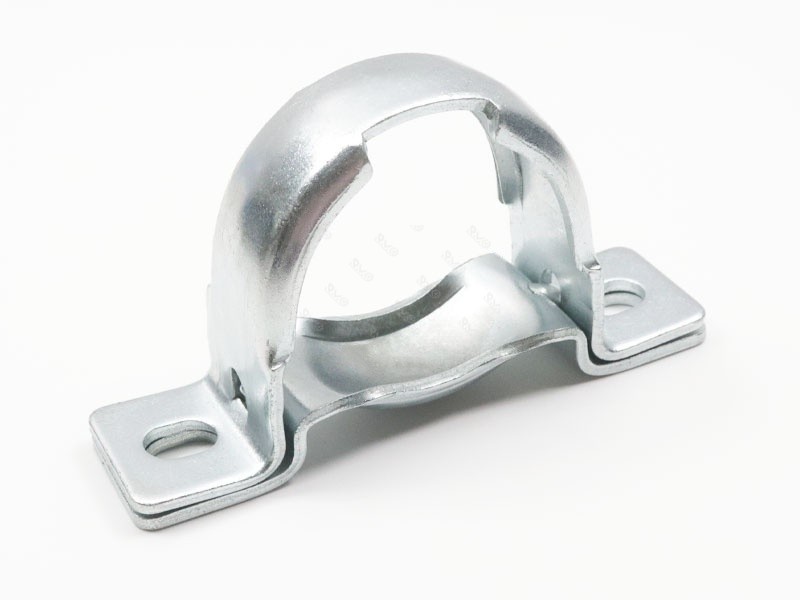

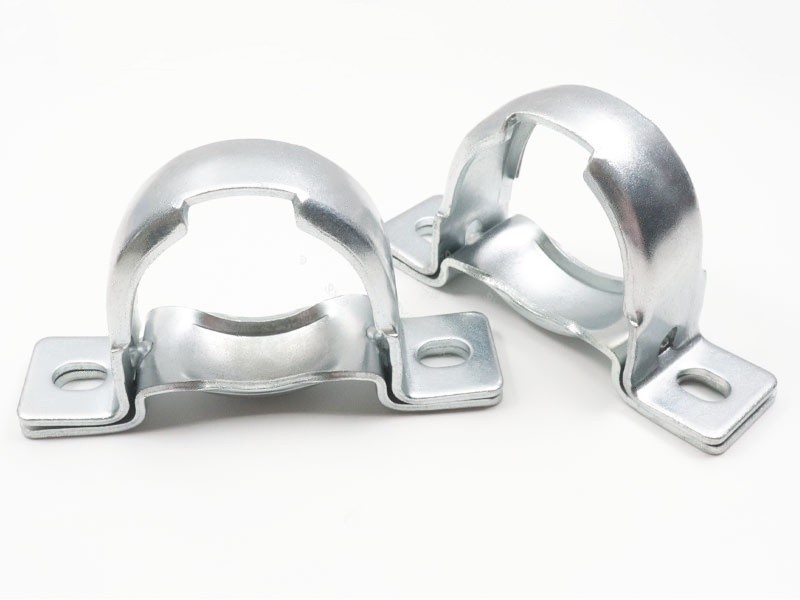

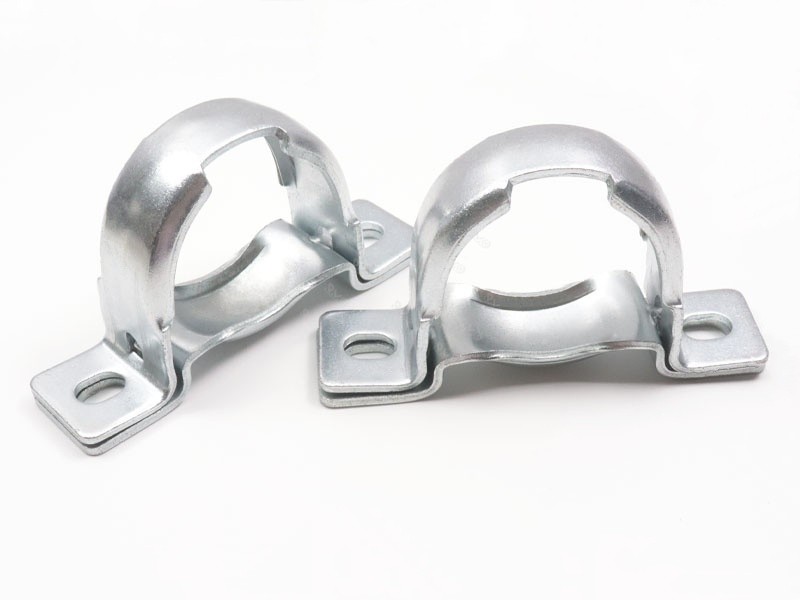

100 pcsPP206 Pressed Steel Two-bolt Pillow Block Housing
⚙️Material and Craftsmanship:
Main material: High-quality pressed steel is used. It is precisely formed through pressing process, ensuring both structural strength and processing accuracy;
Surface treatment: Fully zinc plated, forming an anti-corrosion protective layer, suitable for humid or outdoor mild corrosive environments;
Compliance with standards: Complies with international standards, and can be interchanged and used with components from multiple brands.
Installation convenience: The two-bolt base design, combined with pre-formed installation holes, enables the bearing seat to be quickly fixed onto the supporting surface parallel to the shaft. The bearing is locked onto the shaft using locking screws, and assembly does not require complex tools;
Cost advantage: The stamping process reduces costs by more than 30% compared to casting iron, and is lighter in weight, making it suitable for cost-effective equipment with batch production requirements;
Adaptability: Compatible with 30mm metric shaft diameters and 1-1/16" to 1-1/4" imperial shaft diameters. It can be used with SB206 and other model bearing inserts;
Basic protection capability: The galvanized surface can resist minor rusting. Combined with the built-in sealing structure of the bearing, it can withstand common working conditions such as dust and moisture contamination.

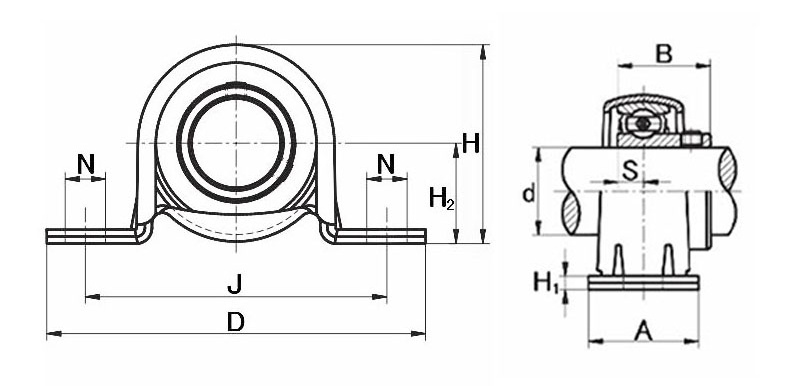

| Model No. | d | D | H | m |
| SBPP201 | 12 mm | 86 mm | 43.5 mm | 0.15 KG |
| SBPP201-8 | 12.7 mm | 86 mm | 43.5 mm | 0.15 KG |
| SBPP202 | 15 mm | 86 mm | 43.5 mm | 0.15 KG |
| SBPP202-10 | 15.88 mm | 86 mm | 43.5 mm | 0.15 KG |
| SBPP203 | 17 mm | 86 mm | 43.5 mm | 0.15 KG |
| SBPP203-11 | 17.46 mm | 86 mm | 43.5 mm | 0.15 KG |
| SBPP204-12 | 19.05 mm | 98 mm | 50.2 mm | 0.2 KG |
| SBPP204 | 20 mm | 98 mm | 50.2 mm | 0.2 KG |
| SBPP205-14 | 22.22 mm | 108 mm | 56.4 mm | 0.28 KG |
| SBPP205-15 | 3.81 mm | 108 mm | 56.4 mm | 0.28 KG |
| SBPP205 | 25 mm | 108 mm | 56.4 mm | 0.28 KG |
| SBPP205-16 | 25.4 mm | 108 mm | 56.4 mm | 0.28 KG |
| SBPP206-18 | 28.58 mm | 117 mm | 66.1 mm | 0.42 KG |
| SBPP206 | 30 mm | 117 mm | 66.1 mm | 0.42 KG |
| SBPP206-19 | 30.16 mm | 117 mm | 66.1 mm | 0.42 KG |
| SBPP206-20 | 31.75 mm | 117 mm | 66.1 mm | 0.42 KG |
| SBPP207-20 | 31.75 mm | 129 mm | 77.7 mm | 0.55 KG |
| SBPP207-21 | 33.34 mm | 129 mm | 77.7 mm | 0.55 KG |
| SBPP207-22 | 34.92 mm | 129 mm | 77.7 mm | 0.55 KG |
| SBPP207 | 35 mm | 129 mm | 77.7 mm | 0.55 KG |
Based on its low-load characteristics, PP206 is mainly used in the following fields:
Agricultural machinery: support for the conveying shafts of seeders and harvesters;
Light industrial equipment: transmission components of small printing machines and textile machinery;
General machinery: fixation of rotating shafts of fans and small conveyors;
Automation devices: conveyor belts of assembly lines and joint support for small robots.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
