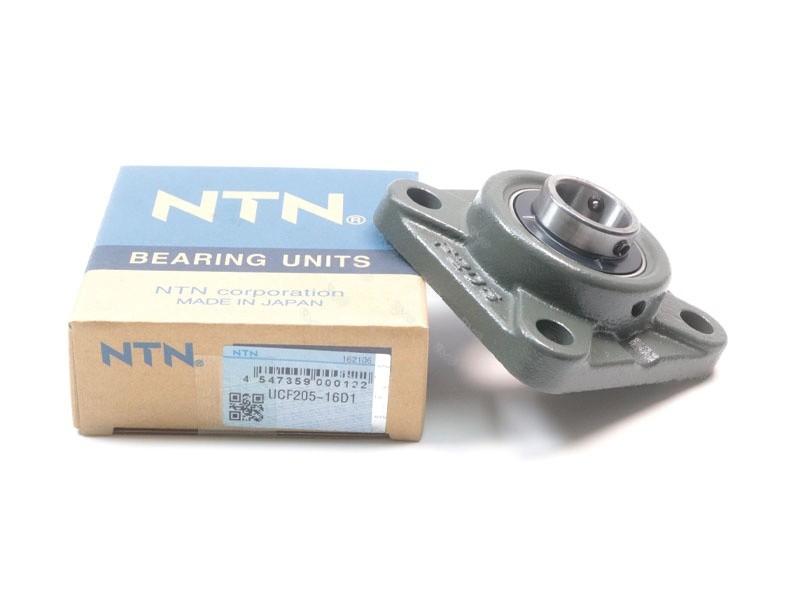

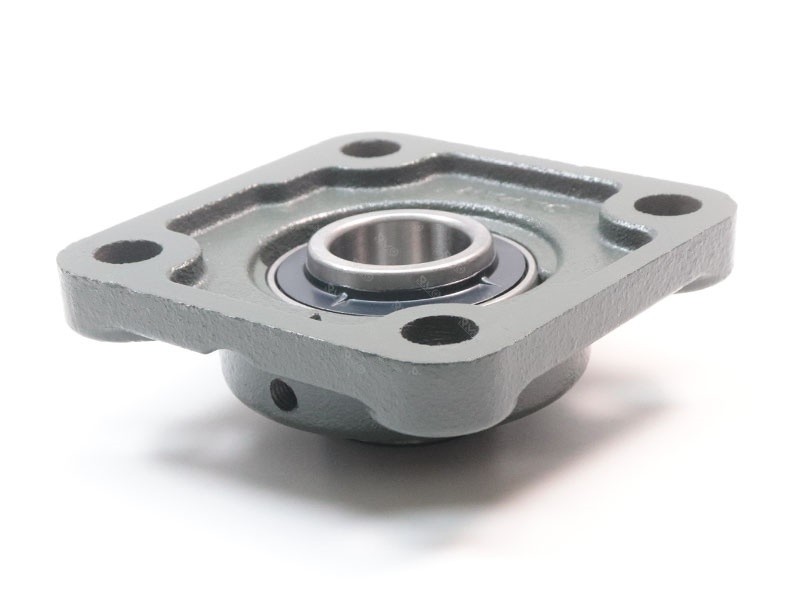

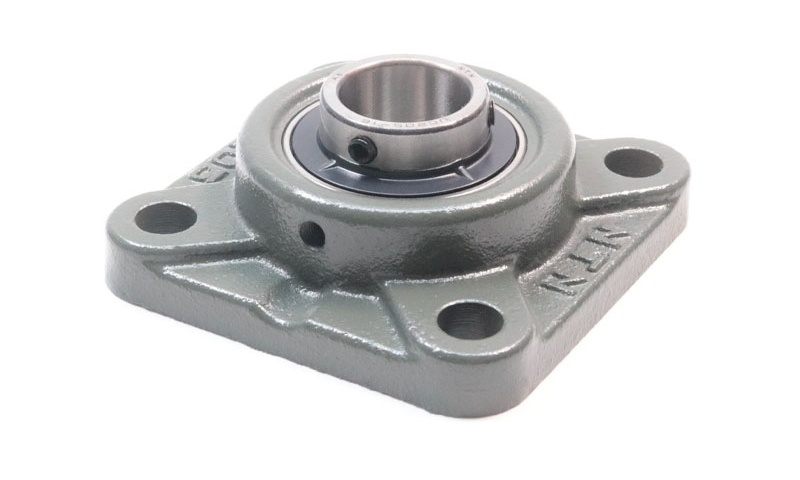

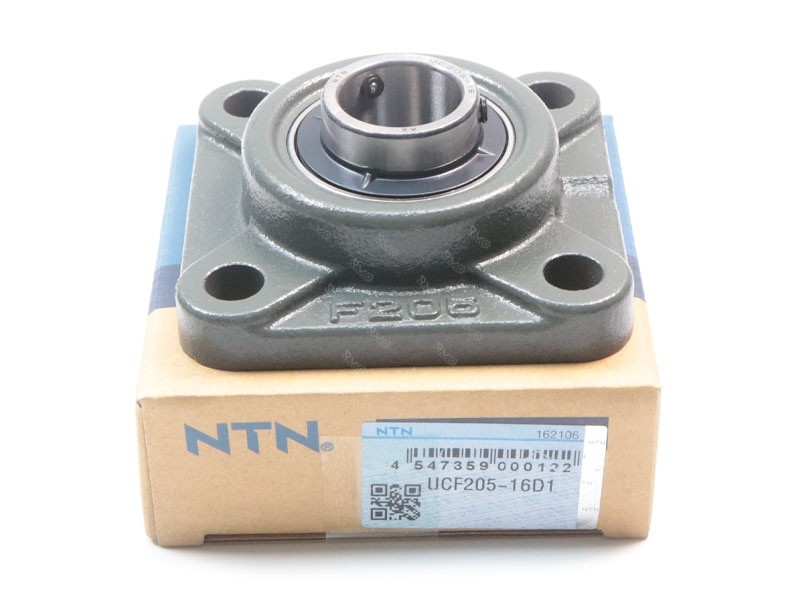

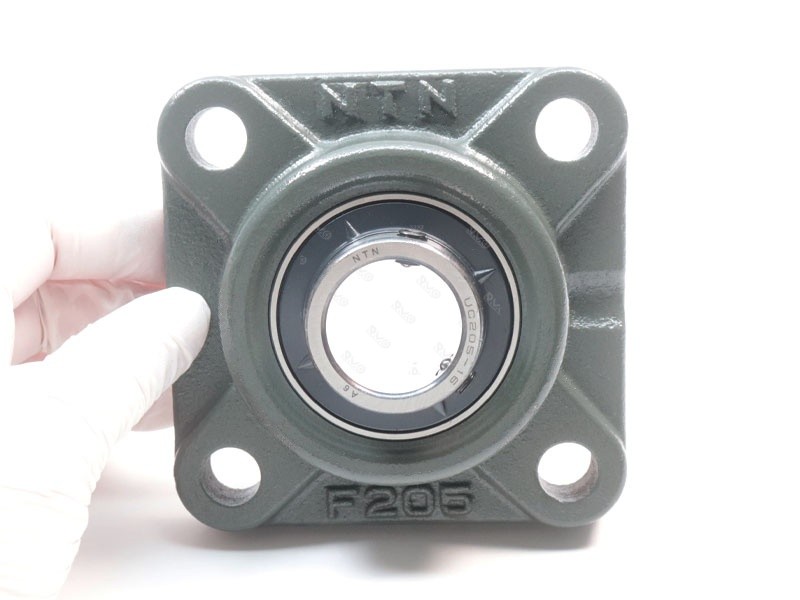

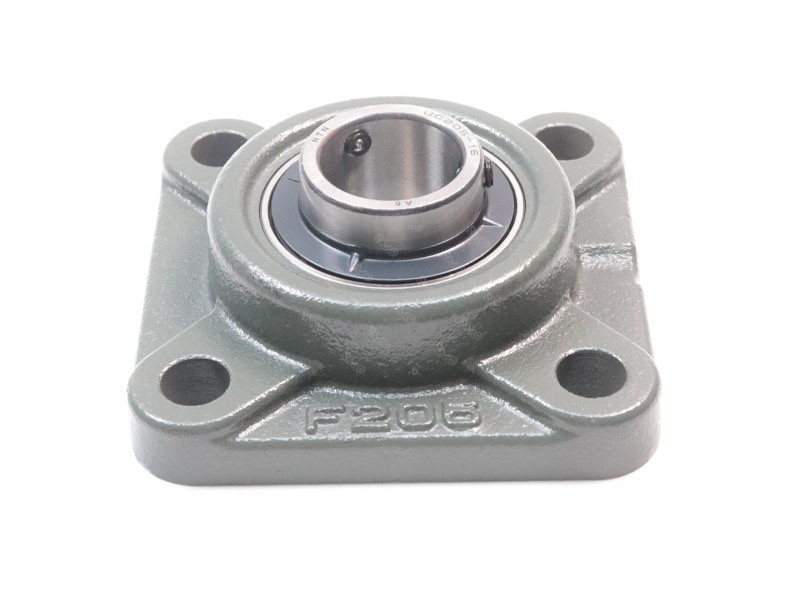

Inner Bore 1 Inch UCF205-16 Square Pillow Block Bearing

Inner Bore 1 Inch UCF205-16 Square Pillow Block Bearing

⚙️Structure and Material Characteristics:

Composite Structure: Composed of an embedded ball bearing with an extended inner ring and a cast iron square flange seat. The inner ring is equipped with locking screws to achieve a rigid connection between the shaft and the bearing, and can be fixed to the side wall or frame of the equipment through 4 bolt holes;

Core Materials: The bearing body is made of bearing steel (ensuring wear resistance and bearing strength), and the bearing seat is made of cast iron (balancing rigidity and cost advantages);

Sealing Protection: Contact seals are provided on both sides of the bearing, forming a dual protection structure, which can effectively prevent contaminants from invading; The unit can be optionally equipped with end covers to further enhance the sealing level, suitable for complex environments such as high dust and humidity;

Lubrication Design: Pre-filled with lubricating grease, the bearing seat has its own re-lubrication holes and oil nozzles, supporting regular lubrication replenishment to extend the service life.

⚙️Core Advantage:

Installation is convenient: Square flange seat + 4-hole fixation design enables quick integration into the equipment frame;

Versatility is strong: Compatible with constant or alternating rotation directions, allowing for moderate installation errors;

High cost-effectiveness: Cast iron and bearing steel combination material balances performance and cost, with low maintenance costs;

Good durability: Double sealing + re-lubrication design extends the continuous operation time of the equipment.

⚙️Typical application fields:

Industrial equipment: material conveying machinery, variable frequency pumps, heat exchangers, sewage treatment equipment, etc.;

Manufacturing machinery: sorting screens, plastic extrusion machines, agricultural machinery parts, thread rolling machines, etc.

⚙️Precautions:

1. Keep clean	2. Use with caution	3. appropriate tool	4. Hot-loading	5. Be careful of rust
Dust will have a bad effect on the bearing, so keep the surrounding clean.	Strong impact during use can easily cause scratches and indentations.	Avoid replacing existing tools, and use appropriate tools.	Bearings are precision parts, so hot installation is recommended.	Sweat on your hands during operation will cause rust, so it is best to wear gloves.
