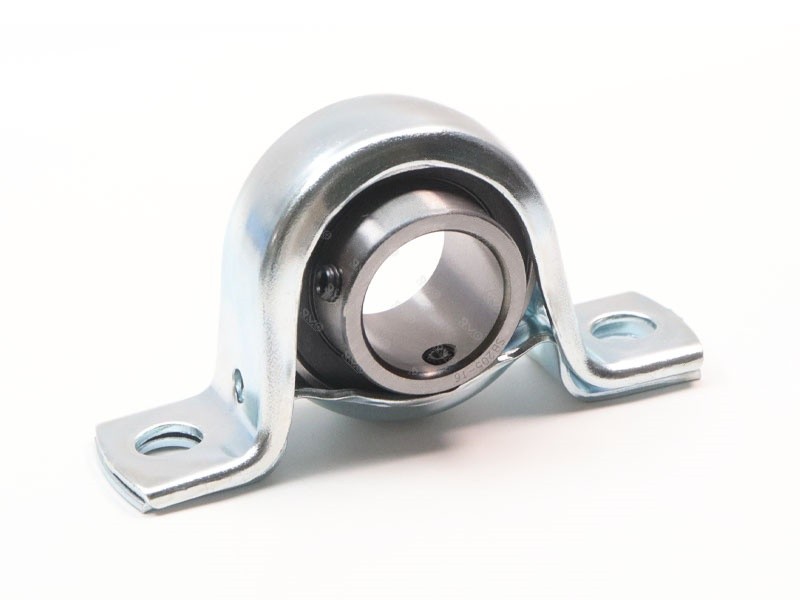

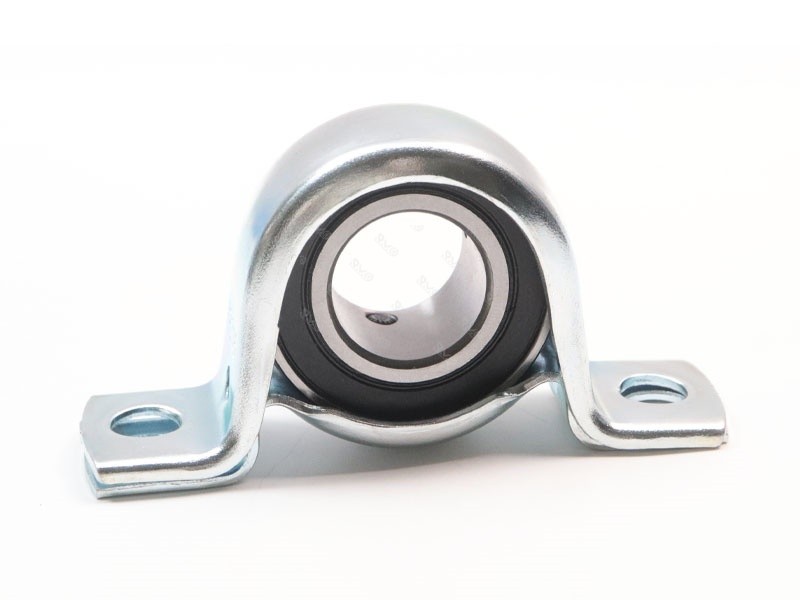

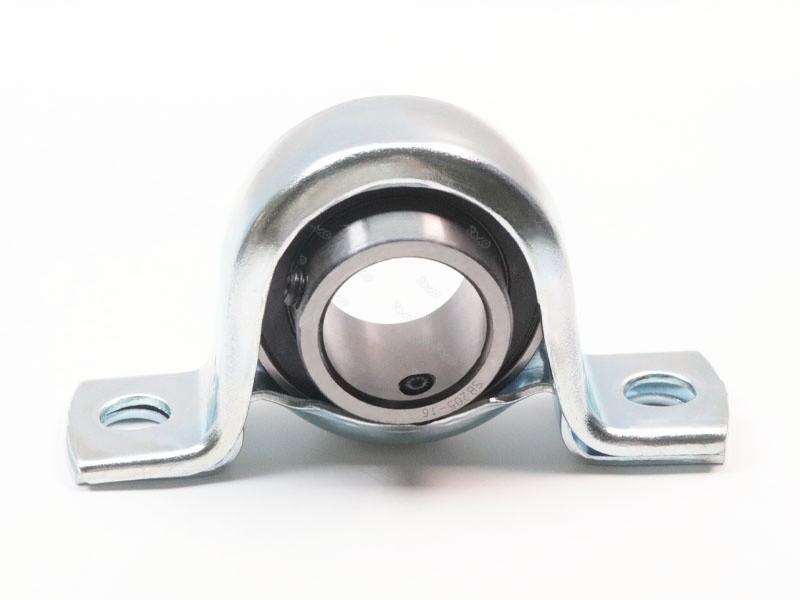

SBPP205-16 is a light-duty bearing housing unit. It is a typical model of the SBPP 200 series and is mainly composed of a stamped steel bearing housing and a locknut-type insert ball bearing.
Item No :
SBPP205-16Size (d*D*B) :
25.4x108x56.4x86mmLead Time :
3-5 daysWeight :
0.28KGShipping Port :
Guangzhou, Ningbo, ShanghaiMOQ :

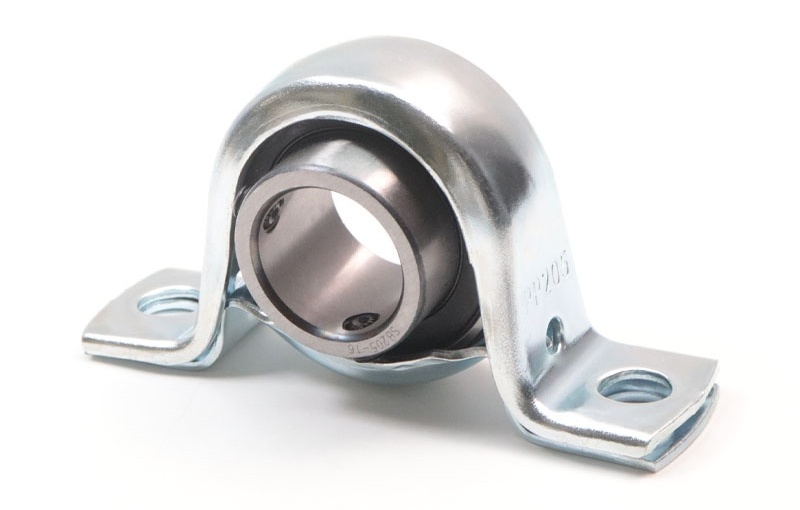

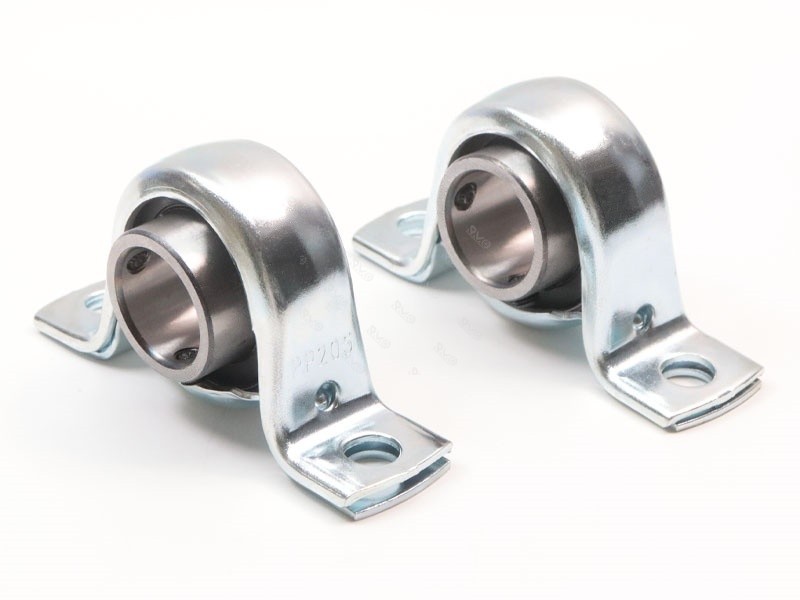

100 pcsLight Load SBPP205-16 Stamped Steel Pillow Block Bearing
⚙️Composite structure design:
Bearing housing: Made of stamped steel (Stamped Steel), treated with galvanization to enhance corrosion resistance. It is compatible with 2 bolt installation method. The bolt specification is 3/8 inch (or M10), and the bolt hole spacing is approximately 3-25/64 inches (86mm). It has strong installation stability and occupies a small space.
Insert bearing: The core component is a ball bearing made of bearing steel. The outer ring has a spherical structure, and the extended end of the inner ring is equipped with 2 locking screws to lock the bearing onto the shaft and prevent relative sliding.
Auxiliary features: It has been filled with lubricating grease before leaving the factory. No additional pre-treatment is required and it can be used directly.
Load capacity: Dynamic rated load 14kN (approximately 3150lbf), static rated load 7.85kN (approximately 1810lbf), capable of meeting the requirements of light to medium load transmission.
Speed limit: Maximum allowable speed 6250rpm, suitable for medium-high speed operation scenarios, such as fans, compressors and other equipment.
| Model No. | d | D | H | m |
| SBPP201 | 12 mm | 86 mm | 43.5 mm | 0.15 KG |
| SBPP201-8 | 12.7 mm | 86 mm | 43.5 mm | 0.15 KG |
| SBPP202 | 15 mm | 86 mm | 43.5 mm | 0.15 KG |
| SBPP202-10 | 15.88 mm | 86 mm | 43.5 mm | 0.15 KG |
| SBPP203 | 17 mm | 86 mm | 43.5 mm | 0.15 KG |
| SBPP203-11 | 17.46 mm | 86 mm | 43.5 mm | 0.15 KG |
| SBPP204-12 | 19.05 mm | 98 mm | 50.2 mm | 0.2 KG |
| SBPP204 | 20 mm | 98 mm | 50.2 mm | 0.2 KG |
| SBPP205-14 | 22.22 mm | 108 mm | 56.4 mm | 0.28 KG |
| SBPP205-15 | 3.81 mm | 108 mm | 56.4 mm | 0.28 KG |
| SBPP205 | 25 mm | 108 mm | 56.4 mm | 0.28 KG |
| SBPP205-16 | 25.4 mm | 108 mm | 56.4 mm | 0.28 KG |
| SBPP206-18 | 28.58 mm | 117 mm | 66.1 mm | 0.42 KG |
| SBPP206 | 30 mm | 117 mm | 66.1 mm | 0.42 KG |
| SBPP206-19 | 30.16 mm | 117 mm | 66.1 mm | 0.42 KG |
| SBPP206-20 | 31.75 mm | 117 mm | 66.1 mm | 0.42 KG |
| SBPP207-20 | 31.75 mm | 129 mm | 77.7 mm | 0.55 KG |
| SBPP207-21 | 33.34 mm | 129 mm | 77.7 mm | 0.55 KG |
| SBPP207-22 | 34.92 mm | 129 mm | 77.7 mm | 0.55 KG |
| SBPP207 | 35 mm | 129 mm | 77.7 mm | 0.55 KG |
Widely applied in agriculture, automobiles, printers, pumps, sports goods, construction, manufacturing equipment, conveyor systems and fan components, etc., in both light and heavy industries.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
