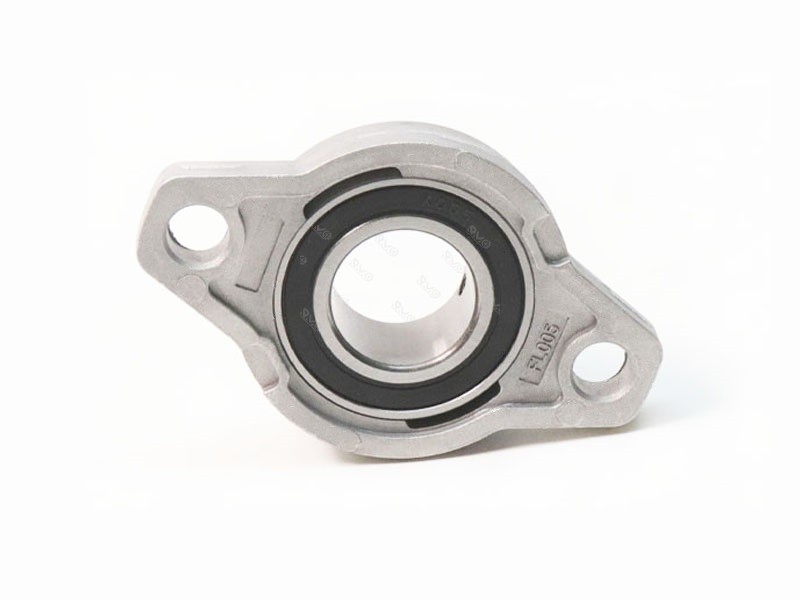

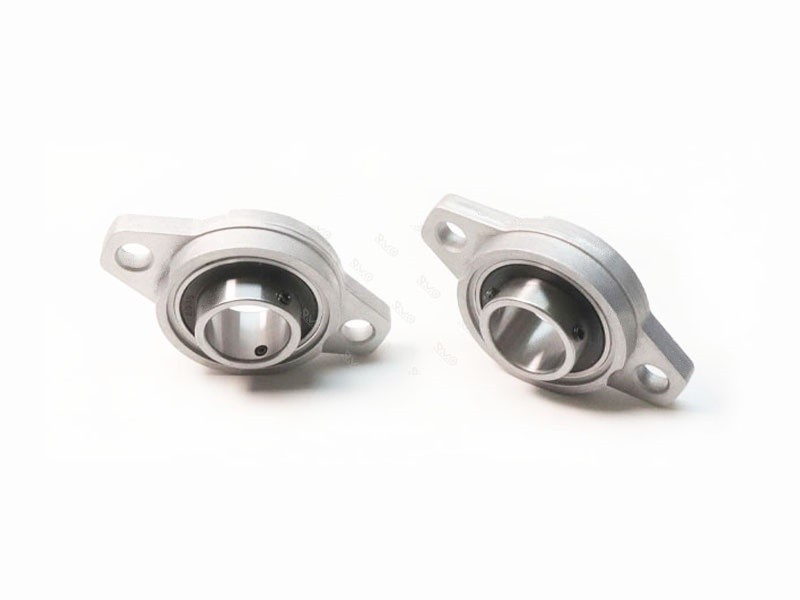

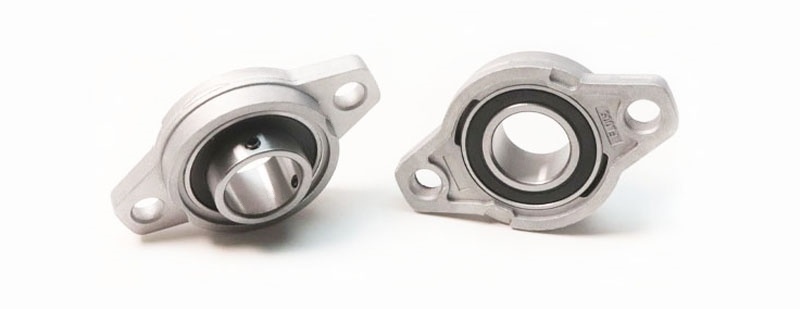

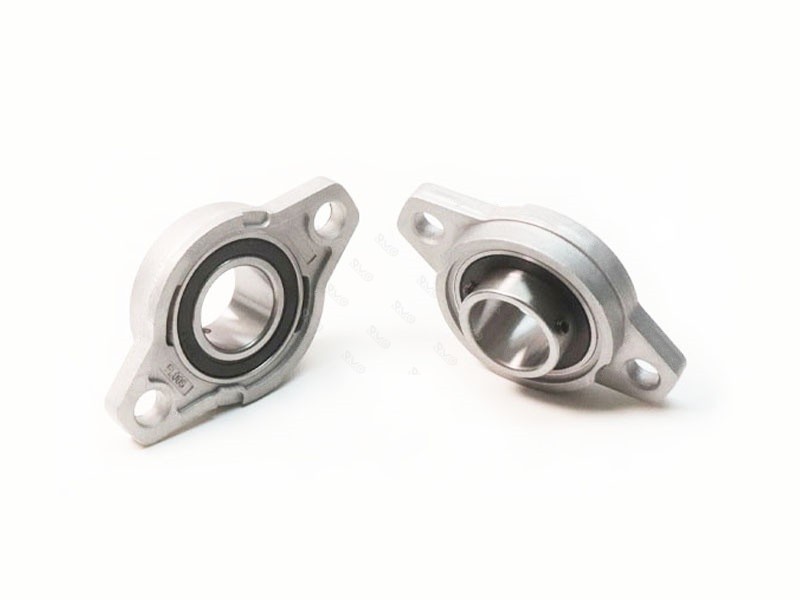

KFL series KFL005 Diamond-type Zinc Alloy Pillow Block Bearing

KFL series KFL005 Diamond-type Zinc Alloy Pillow Block Bearing

⚙️Structural features:

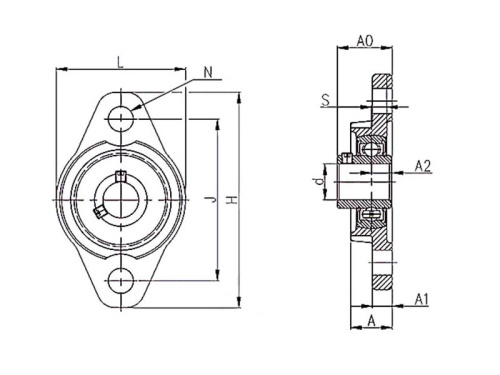

Bearing housing: Made of zinc alloy, it has good corrosion resistance and certain strength. Its shape is a two-bolt rhombic flange structure, which is convenient for installation and fixation.

Bearings unit: The insert bearing is made of GCr15 steel, which has high hardness and good wear resistance. The inner ring is equipped with a locking screw (set screw), which is tightened to the shaft to prevent the bearing from rotating relative to the shaft. The bearing has a certain self-aligning ability and can compensate for a small amount of misalignment of the shaft.

Sealing device: The KFL005 bearing is equipped with a double-sided sealing device, which can effectively prevent dust, impurities, etc. from entering the interior of the bearing, ensuring the normal operation and service life of the bearing.

Load capacity: Dynamic load: Approximately 10.3 KN, Static load: Approximately 5.95 KN.

⚙️Performance features:

Adaptability and ease of installation:

The inner ring of the bearing can slightly deviate from the base body, which can automatically compensate for the static shaft deviation during installation, reducing the strict requirements for installation accuracy. Moreover, the inner ring of the bearing can be disassembled and replaced separately, resulting in high maintenance efficiency.

Environmental adaptability and durability:

The zinc alloy base has a better resistance to atmospheric corrosion than the cast iron base. Combined with a double-layer sealing system, it can adapt to dusty and humid environments such as agriculture and food processing; the rolling elements of the bearing steel are precisely processed, resulting in low friction coefficient during operation, low vibration and noise, and a normal working life of over 10,000 hours.

Lightweight:

The zinc alloy material is 40% lighter than the cast iron bearing seat of the same size, making it suitable for equipment that is sensitive to weight, such as conveyor belts and 3D printers.

⚙️Application fields:

The KFL005 bearing is widely used in various mechanical equipment, such as food machinery, conveying equipment, small motors, etc. It can be used to support rotating shafts and bear radial loads.

⚙️Precautions:

1. Keep clean	2. Use with caution	3. appropriate tool	4. Hot-loading	5. Be careful of rust
Dust will have a bad effect on the bearing, so keep the surrounding clean.	Strong impact during use can easily cause scratches and indentations.	Avoid replacing existing tools, and use appropriate tools.	Bearings are precision parts, so hot installation is recommended.	Sweat on your hands during operation will cause rust, so it is best to wear gloves.
