NCL205V Cylindrical Roller Bearing NCL Type for Floating End Support

NCL205V Cylindrical Roller Bearing NCL Type for Floating End Support

⚙️Product description:

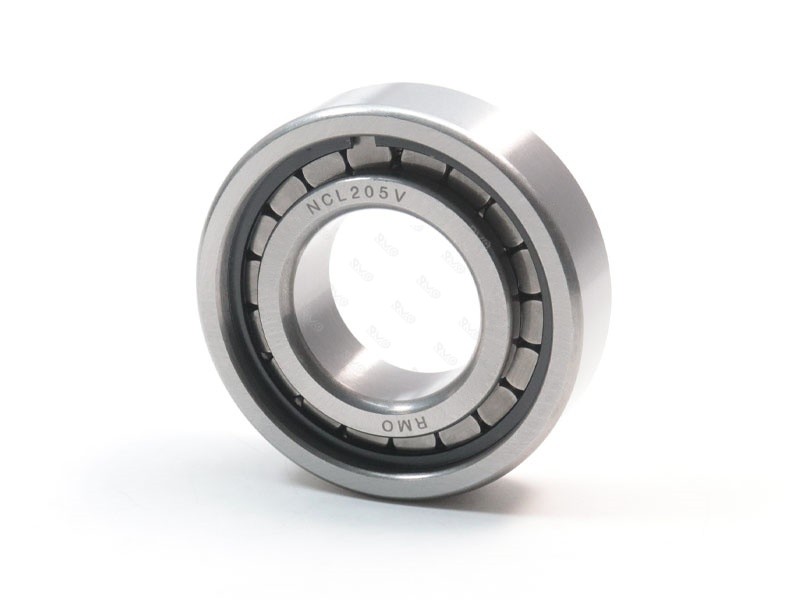

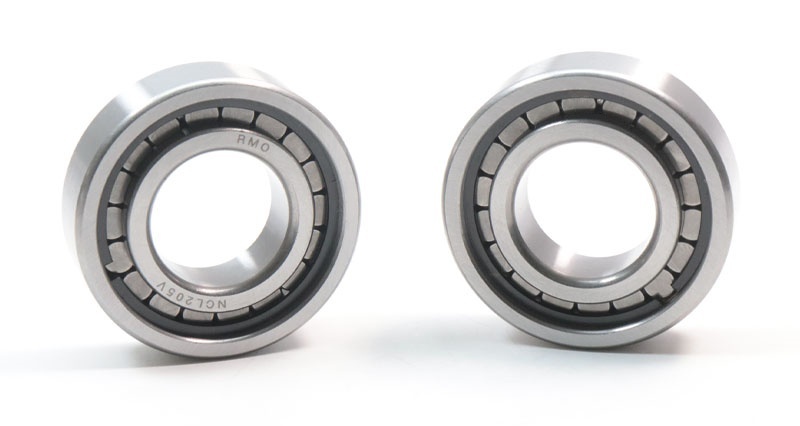

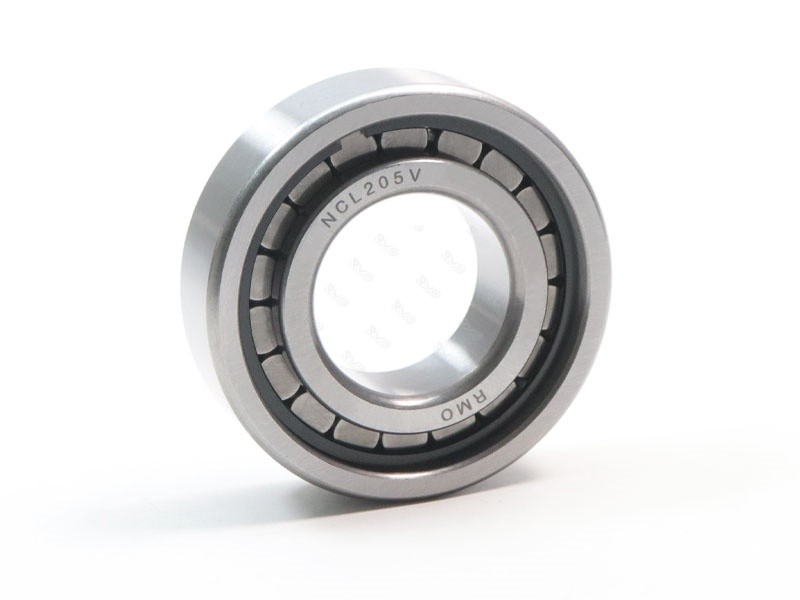

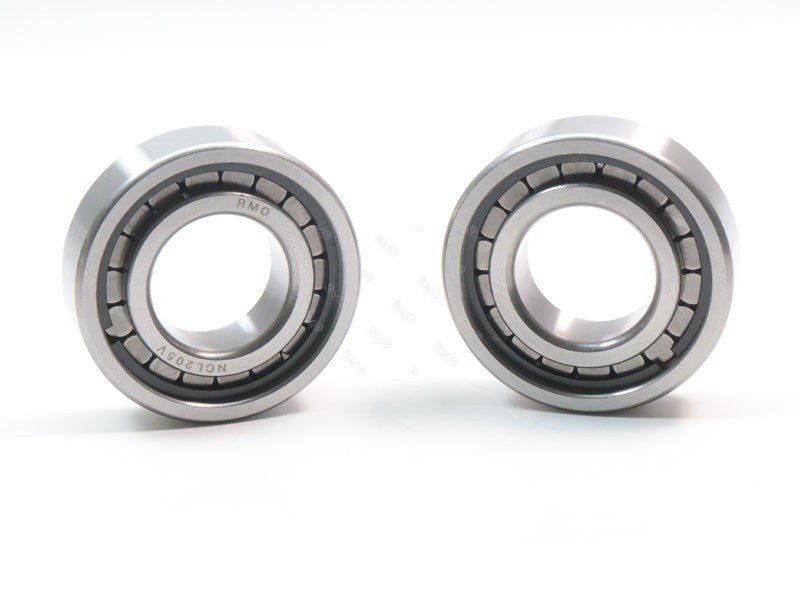

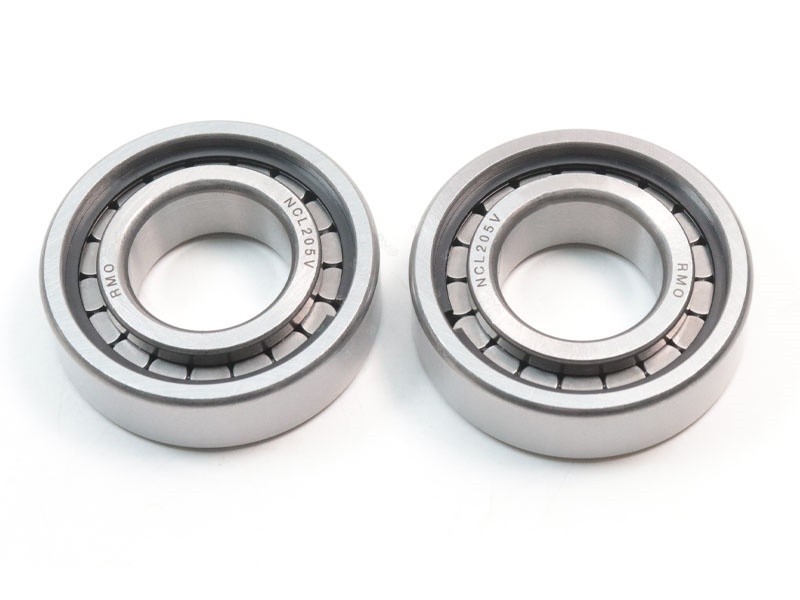

NCL205V Single Row Cylindrical Roller Bearing (NCL Type)

NCL205V is a single row cylindrical roller bearing with NCL type design.

It offers good radial load capacity and relatively high speed performance.

The inner ring has ribs while the outer ring has a single rib or no rib, allowing a certain axial displacement between the shaft and the housing.

This makes NCL205V especially suitable for use as a floating or free-end bearing in electric motors, gearboxes, fans, pumps and general industrial machinery.

⚙️Technical Parameters:

⚙️Main Features:

 • Single row cylindrical roller design with higher radial load capacity than deep groove ball bearings of the same size;

 • NCL type structure allows axial movement to compensate thermal expansion and mounting errors, ideal for floating end support;

 • Line contact between rollers and raceways ensures low friction, low temperature rise and stable running at medium to high speeds;

 • Separable design: inner ring assembly and outer ring can be mounted and dismounted separately, simplifying installation and maintenance;

 • Widely used in electric motors, reducers, gearboxes, fans, pumps and various general machinery.

⚙️Precautions:

1. Keep clean	2. Use with caution	3. appropriate tool	4. Hot-loading	5. Be careful of rust
Dust will have a bad effect on the bearing, so keep the surrounding clean.	Strong impact during use can easily cause scratches and indentations.	Avoid replacing existing tools, and use appropriate tools.	Bearings are precision parts, so hot installation is recommended.	Sweat on your hands during operation will cause rust, so it is best to wear gloves.

⚙️Obtain Certificate:

About Rimao

Since its establishment in 2011, Rimao Bearing has combined international vision with local wisdom and injected innovative ideas into every bearing and pulley with its profound industry accumulation and unremitting pursuit of technology. We have not only passed CE and ROHS certification, but also set a new benchmark in the industry and led the development trend of the bearing industry.



We are not just a ball bearing and roller bearing importer and wholesaler. We provide real solutions to help you achieve the product and design goals set by your customers. With more than 20 years of production and sales experience, tens of thousands of models and specifications, we look forward to cooperating with you!
