N206EM Single Row Cylindrical Roller Bearing N Type for Electric Motors and Gearboxes

N206EM Single Row Cylindrical Roller Bearing N Type for Electric Motors and Gearboxes

⚙️Product description:

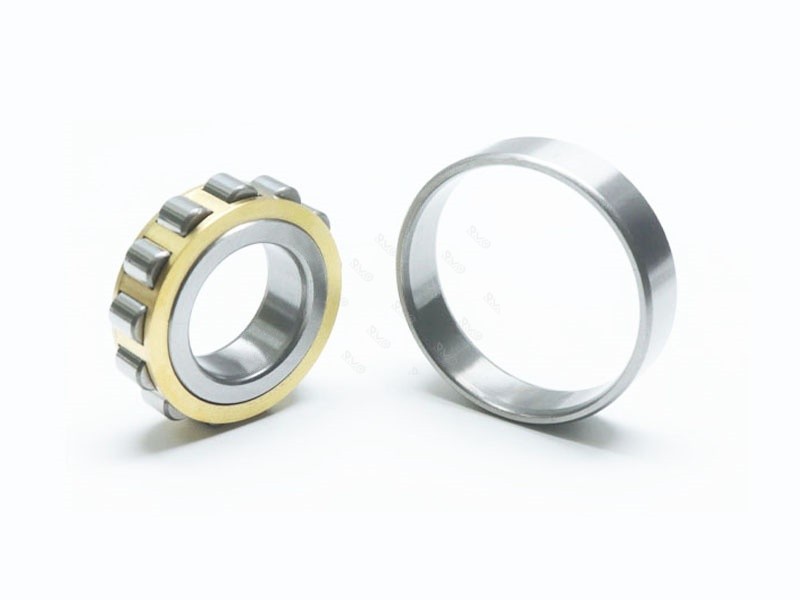

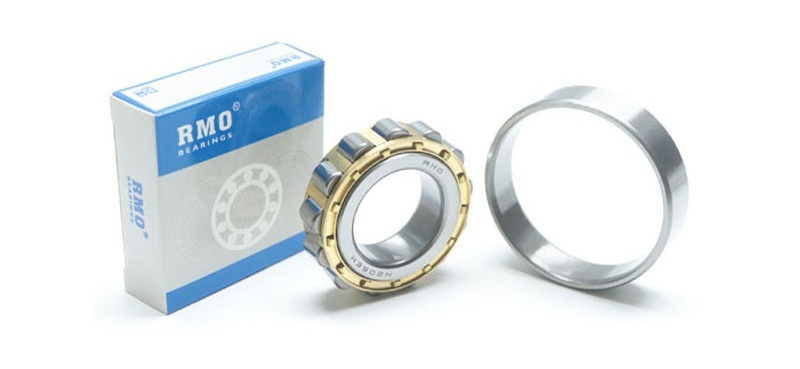

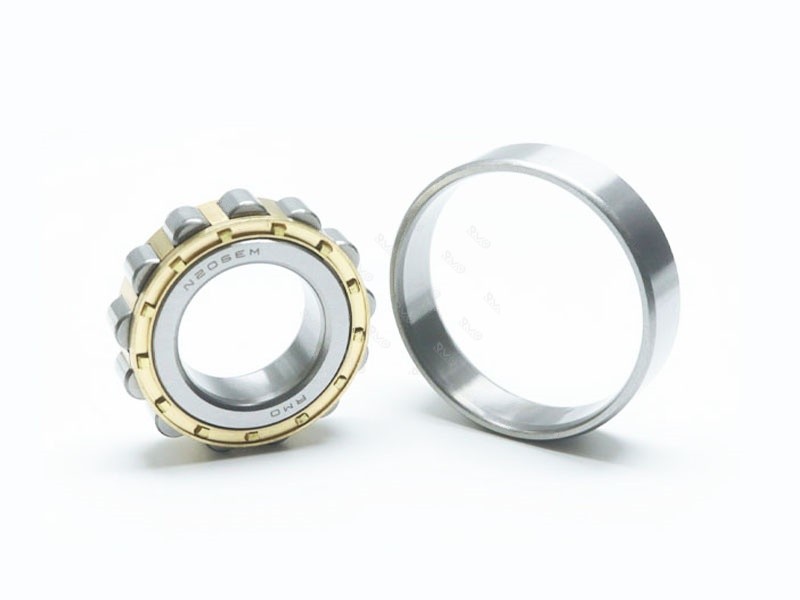

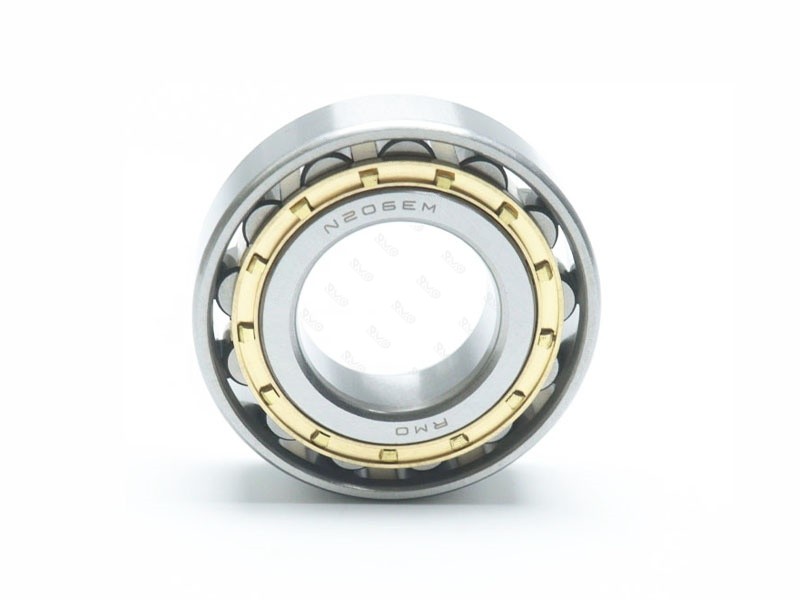

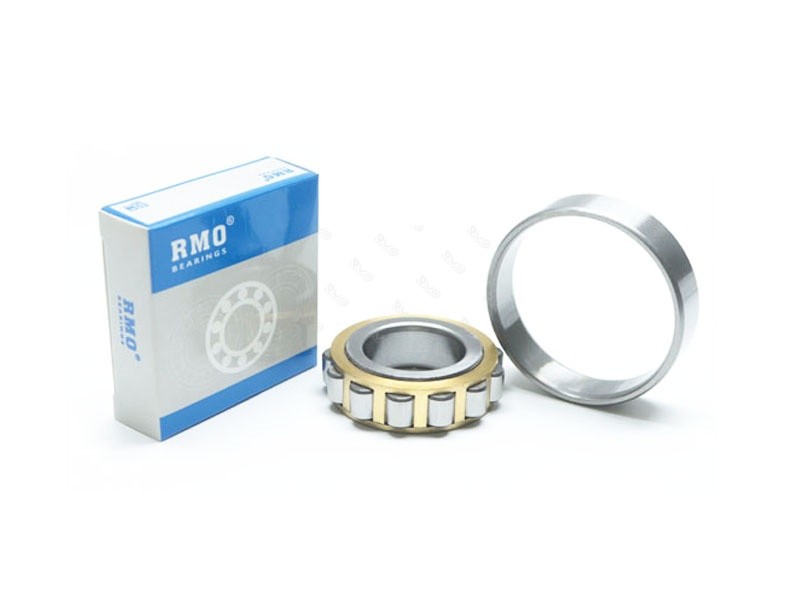

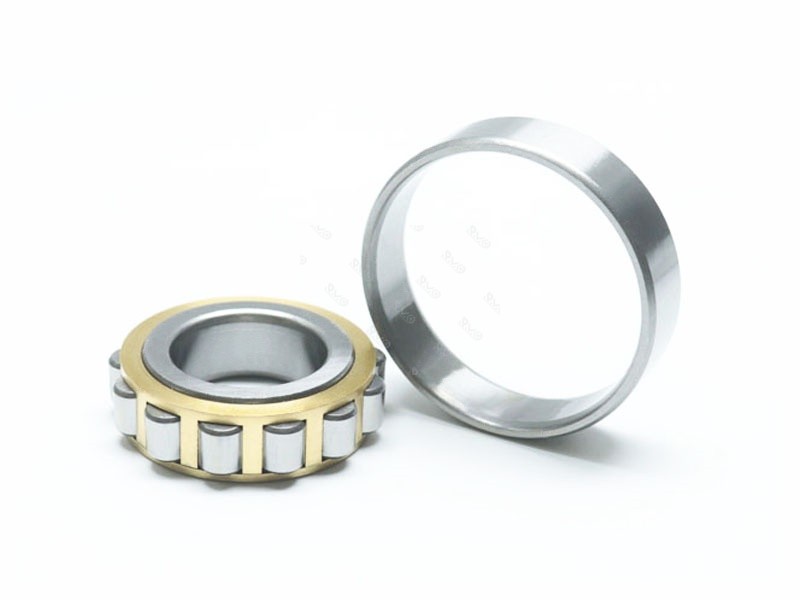

N206EM Single Row Cylindrical Roller Bearing (N Type)

The N206EM bearing is a single row cylindrical roller bearing with N type design.
The inner ring has double ribs while the outer ring has no ribs, allowing axial displacement of the shaft relative to the housing within a certain range.
It is typically used as a floating end bearing in electric motors, gearboxes and various general machinery.
This bearing offers low friction, good speed capability and convenient installation, suitable for radial load applications in small and medium-sized equipment.

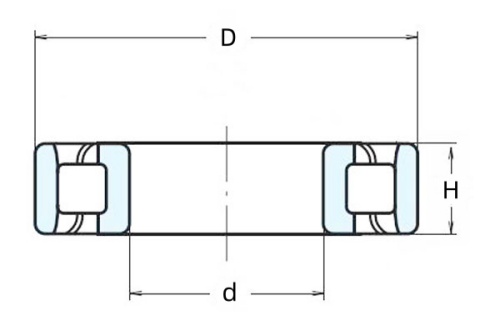

⚙️Technical Parameters:

⚙️Key Features:

N Type Design

 • Inner ring with double ribs guides the rollers and ensures stable rolling.

 • Outer ring without ribs allows axial movement to compensate thermal expansion and mounting errors.

Good Load and Speed Performance

• Mainly designed to carry radial loads under medium to high speed conditions.

• Line contact between cylindrical rollers and raceways provides uniform stress distribution, low friction and reduced temperature rise.

Separable Structure for Easy Mounting

 • Inner ring assembly and outer ring can be mounted separately, simplifying installation and dismounting.

 • Ideal for applications with limited space or where frequent inspection and maintenance are required.

⚙️Precautions:

1. Keep clean	2. Use with caution	3. appropriate tool	4. Hot-loading	5. Be careful of rust
Dust will have a bad effect on the bearing, so keep the surrounding clean.	Strong impact during use can easily cause scratches and indentations.	Avoid replacing existing tools, and use appropriate tools.	Bearings are precision parts, so hot installation is recommended.	Sweat on your hands during operation will cause rust, so it is best to wear gloves.
