Item No :
SGR10-L200 guide railSize (d*D*B) :
10*200mmMaterial :
chrome steel with aluminiumLead Time :
Normally 3-5 daysWeight :
0.23KGPayment Terms :
100% T/T or 30% T/T in advance ,70% before deliveryShipping Port :
Guangzhou, Ningbo, ShanghaiMOQ :

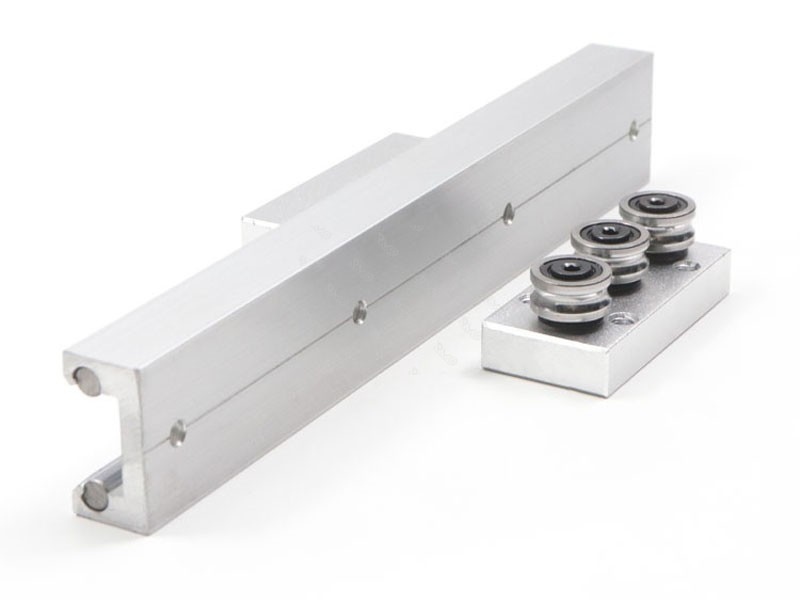

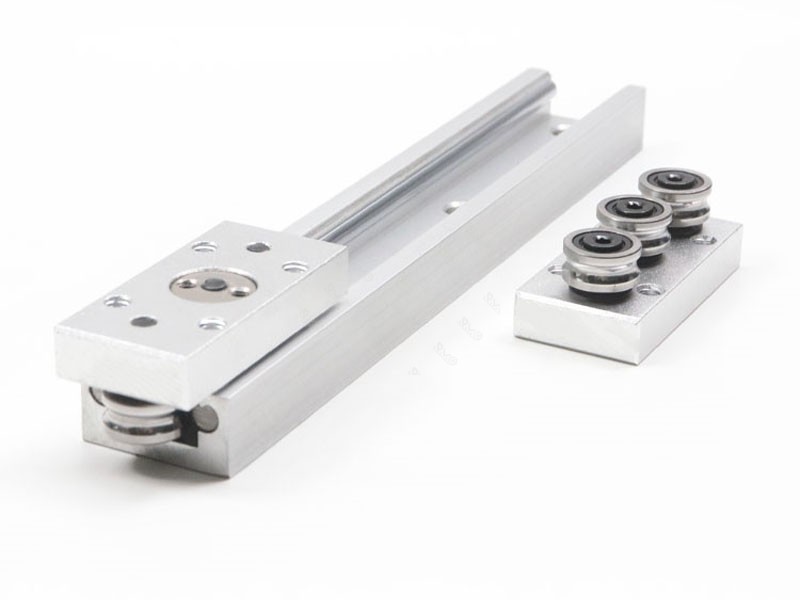

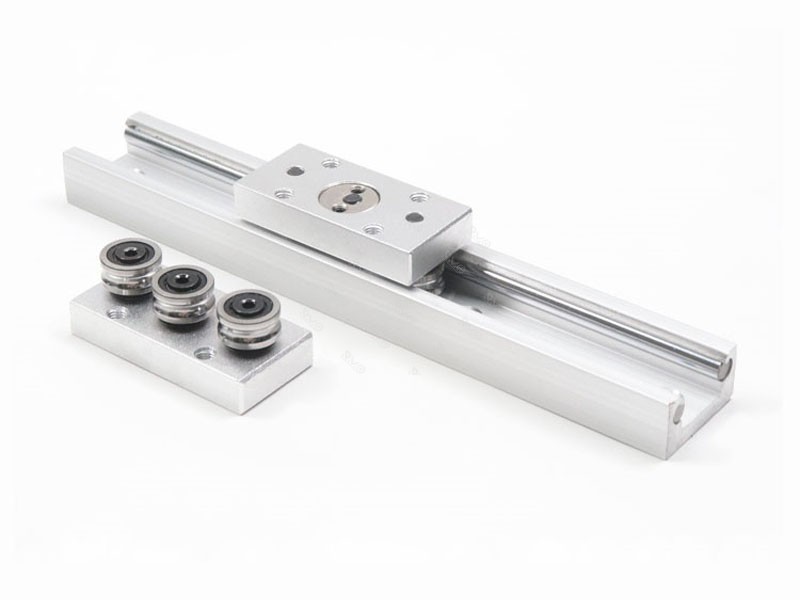

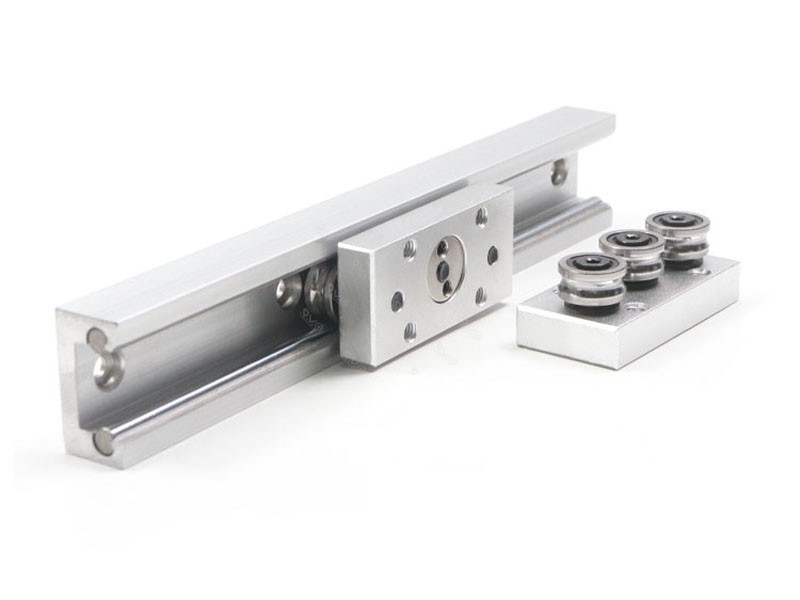

50 pcsSGR10-L200 double-axis core guide rail
⚙️Product description:
Structural Design: SGR10-L200 is a member of the SGR10 series with a double-axis guide rail length of 200mm. It adopts a double-axis design, with two mutually perpendicular roller axes set inside the slider, enabling more stable linear movement. This also enhances the load-bearing capacity of the guide rail, ensuring high precision and low wear of the slider's movement.
Material and Surface Treatment: The guide rails are usually made of aluminum alloy and undergo anodic oxidation treatment. The optical axis surface is chrome-plated, which is both aesthetically pleasing and highly corrosion-resistant.

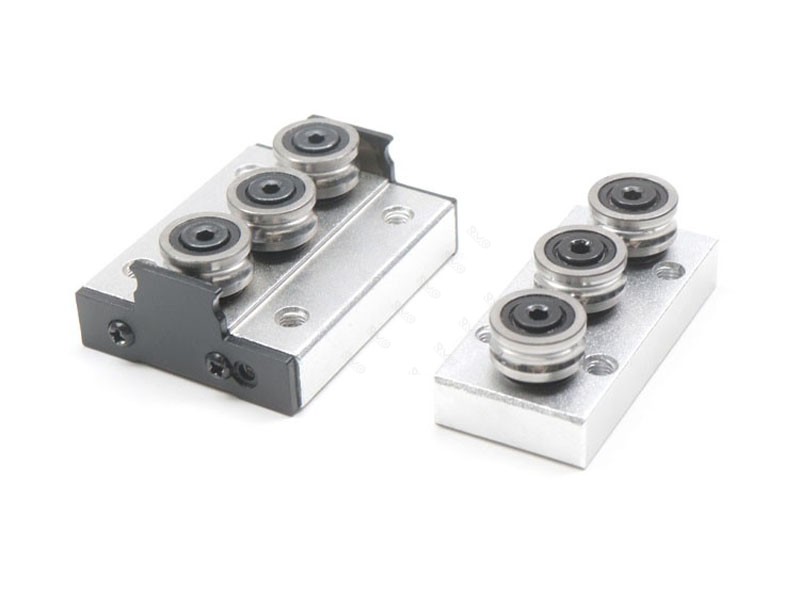

Slider Configuration: Common sliders come in different specifications such as 3-wheel, 4-wheel, and 5-wheel, like SGB10-3wheels and SGB10-4wheels, and can be selected according to actual needs.
Technical Features: It has adjustable preload, eccentric nut design, etc., which is convenient for adjustment, can achieve zero gap, has high positioning accuracy, the parallelism error can reach ±0.02mm, and the roller design is suitable for high dust environment and high-speed operation, with low noise.
⚙️Product Application:
Widely applied in the field of industrial automation, such as robotic arms, CNC machines, etc., it is also suitable for precision measuring instruments, optical instruments, and DIY projects, etc.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
SFU1204 is a type of ball screw that is widely used in the field of precision machinery.
