Item No :
GIK8-PB GIKL8-PBSize (d*D*B) :
8x24x48mmMaterial :
steel/PTFE with zinc platedLead Time :
normally 3-5 daysWeight :
0.05KGMOQ :

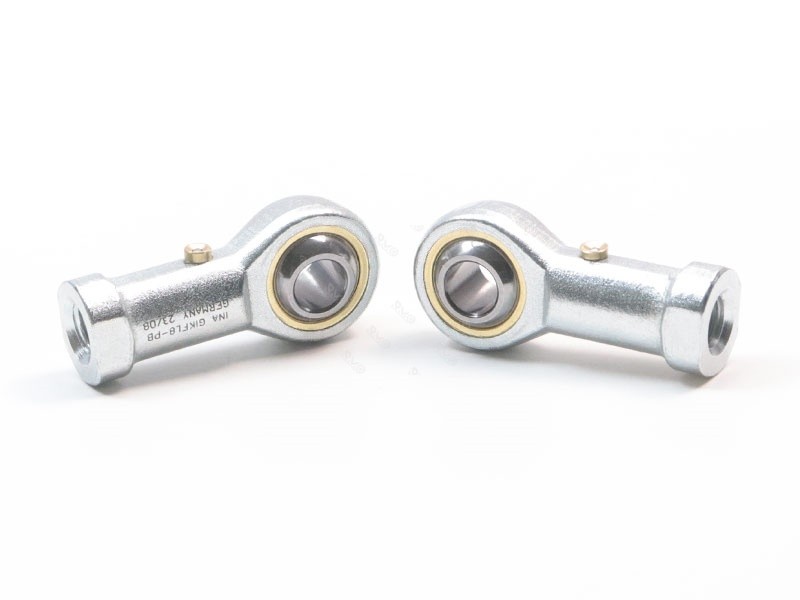

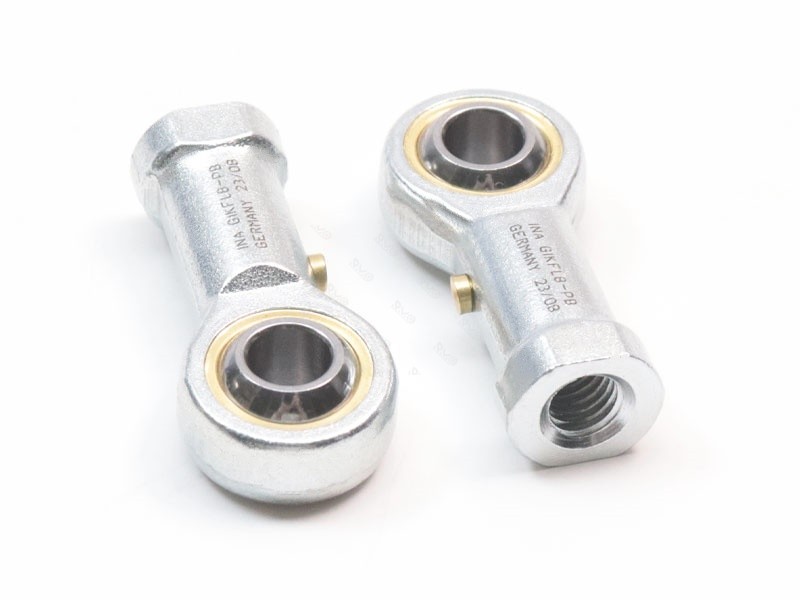

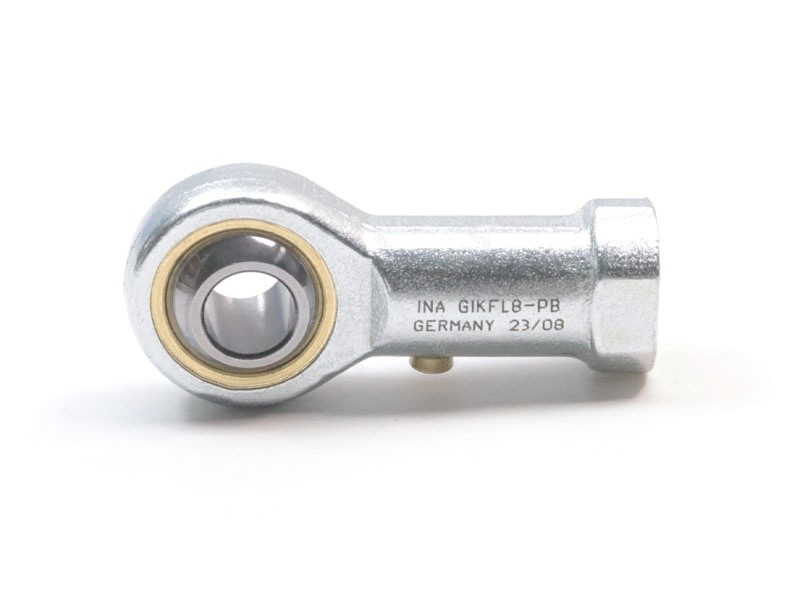

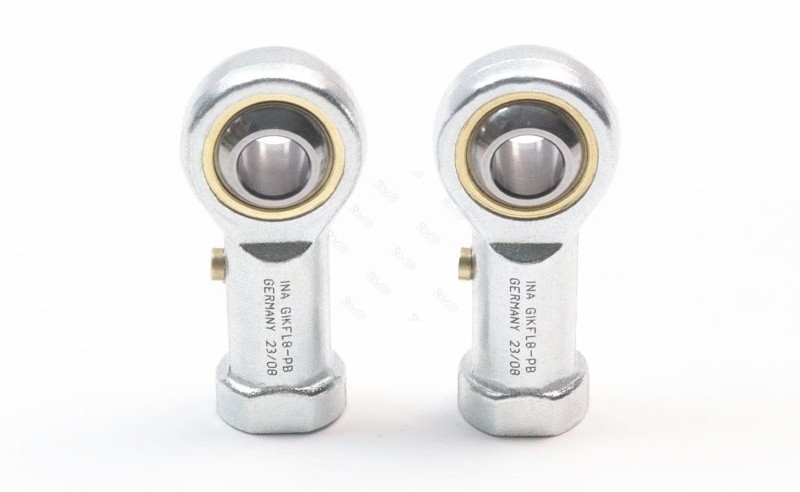

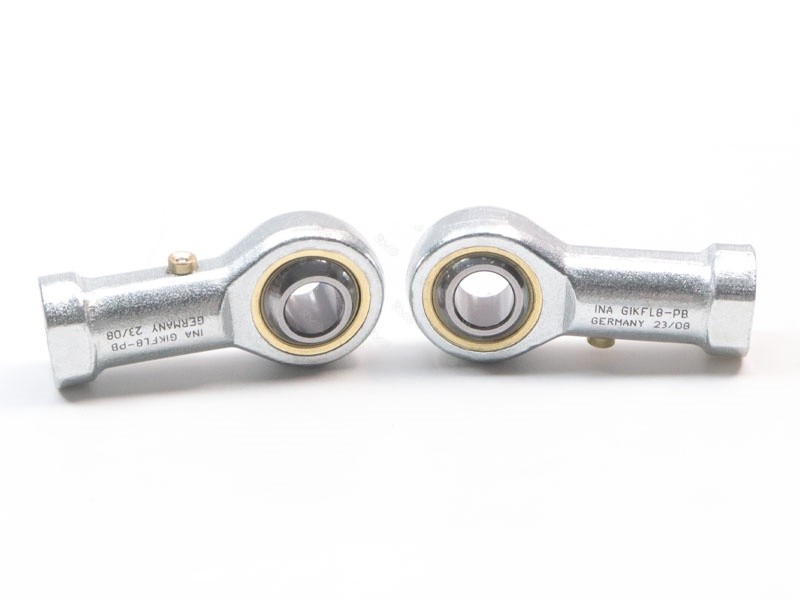

100 PCSGIKL8-PB High Precision Female Thread Rod End Bearing
⚙️Product description:
Basic Structure: GIKL8-PB is composed of a rod end and a spherical plain bearing. The spherical plain bearing is firmly embedded in the bearing housing, and the rod end is galvanized to achieve basic corrosion resistance. It adopts a steel/steel or steel/copper friction pair design and is a maintenance-required product that needs regular lubrication to ensure service life.
| Product name | GIK8-PB GIKL8-PB rod end bearing |
| Size | 8x24x48mm |
| Material | steel/PTFE with zinc plated |
| Weight | 0.05KG |
| lead time | normally 3-5 days |
| Package | Single box +Carton +Pallet |
| MOQ | 100 PCS |
| Shipping Port | Guangzhou, Ningbo, Shanghai |
| Payment | 100% T/T or 30% T/T before production, 70% before delivery |
It can withstand radial loads in the tensile or compressive direction and is suitable for slow motion scenarios with small to medium swing angles. It can bear unidirectional loads and alternating loads under specific conditions. Its installation angle of 14° (α) is designed to meet the assembly requirements of most rod end connections.
The tolerance of the bearing housing bore diameter is controlled at the H7 level, and the precise processing of the rod end thread enables accurate connection with transmission components. The strict control of the radial internal clearance (0 - 0.035mm) can reduce shock and vibration during motion.

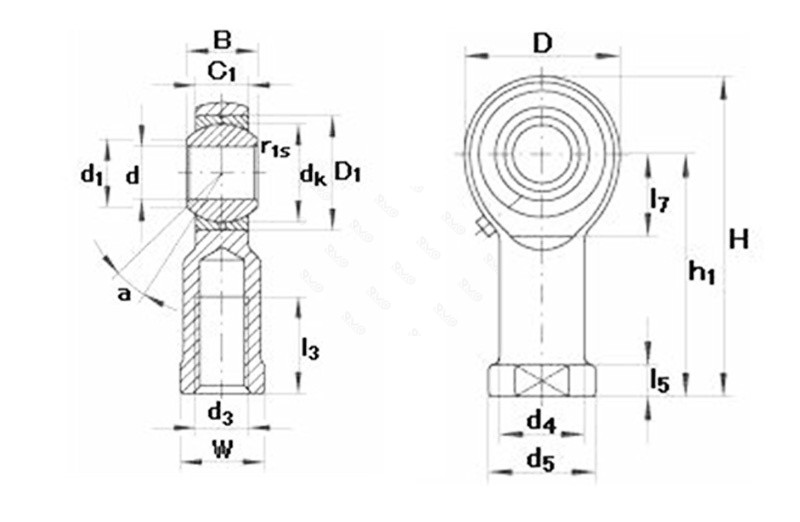

| Model No. | d | D | H | m |
| GIKL6-PB | 6 mm | 20 mm | 40 mm | 0.02 KG |
| GIKL8-PB | 8 mm | 24 mm | 48 mm | 0.05 KG |
| GIKL10-PB | 10 mm | 28 mm | 57 mm | 0.08 KG |
| GIKL12-PB | 12 mm | 32 mm | 66 mm | 0.1 KG |
| GIKL14-PB | 14 mm | 36 mm | 75 mm | 0.16 KG |
| GIKL16-PB | 16 mm | 42 mm | 85 mm | 0.22 KG |
| GIKL18-PB | 18 mm | 46 mm | 94 mm | 0.32 KG |
| GIKL20-PB | 20 mm | 50 mm | 102 mm | 0.42 KG |
| GIKL22-PB | 22 mm | 54 mm | 111 mm | 0.54 KG |
| GIKL25-PB | 25 mm | 60 mm | 124 mm | 0.73 KG |
| GIKL30-PB | 30 mm | 70 mm | 145 mm | 1.1 KG |
This bearing can withstand radial loads in the tension or compression direction, is suitable for slow movements with small swing angles, can bear unidirectional loads and alternating loads under specific conditions, and is commonly used in food and beverage machinery, meat processing machinery, chemical and pharmaceutical machinery, etc. It is also applicable to aircraft and ship manufacturing, as well as buses and rail transportation.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
GE12C, It's made of chrome steel. MOQ is 50 pcs, lead time will be 3-5 days.
