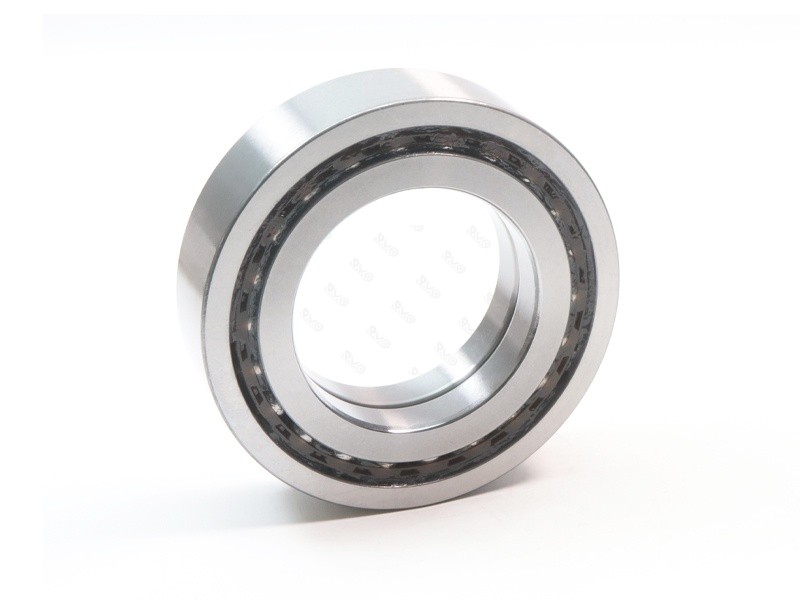

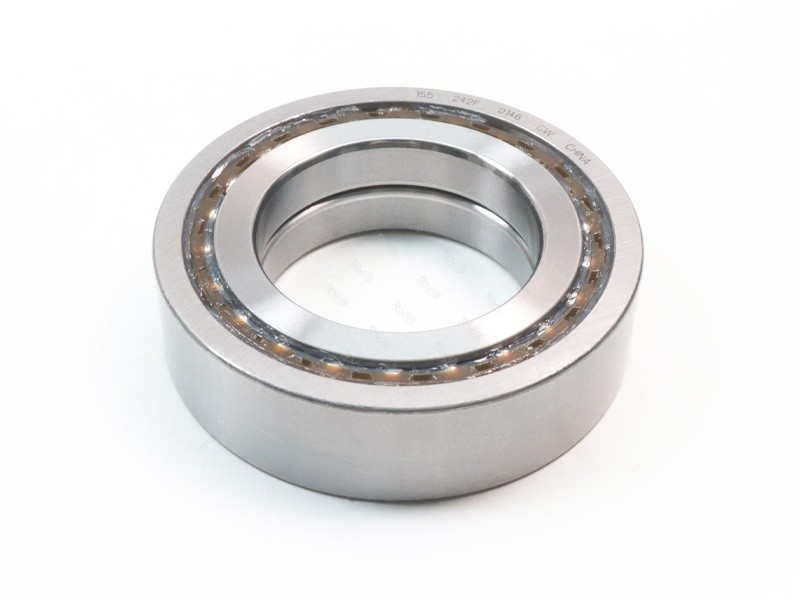

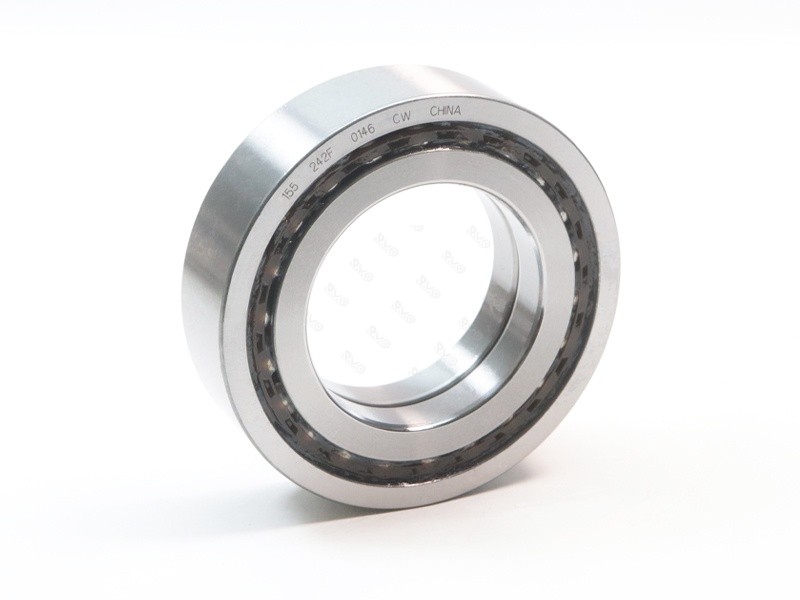

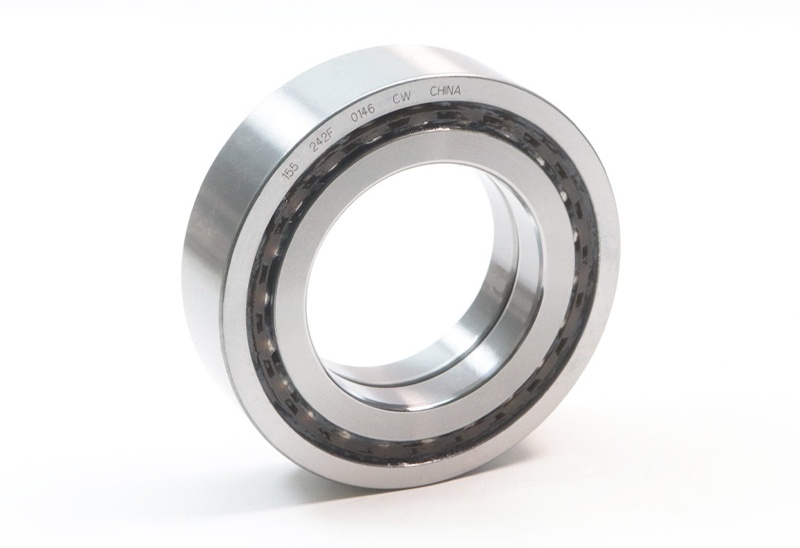

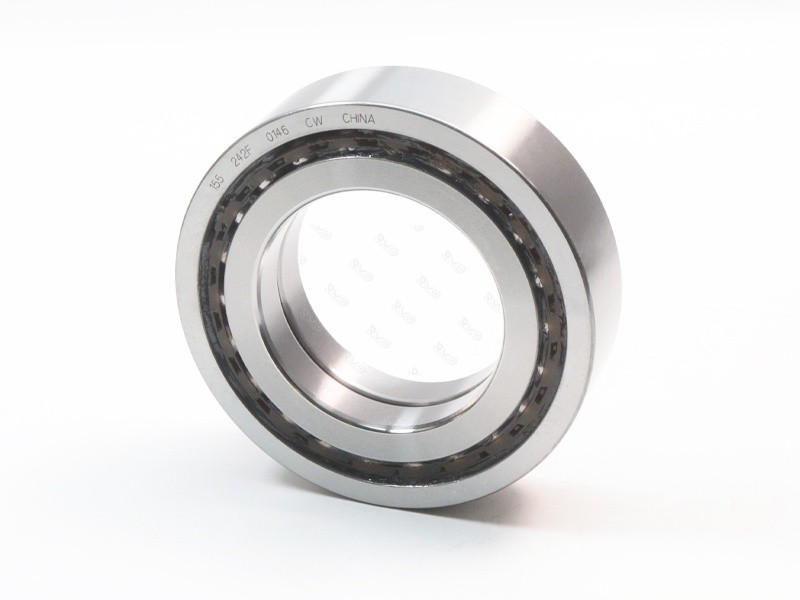

Automobile Bearing 52x90x24mm 155TN9 Steering Bearing

Automobile Bearing 52x90x24mm 155TN9 Steering Bearing

⚙️Product description:

The 155TN9 is designed to meet the high-frequency steering operation requirements of automotive steering gears. The "TN9" suffix in its model number indicates that it is equipped with a glass fiber reinforced PA66 window-type retaining ring, which operates under the guidance of rollers and has greater structural stability.

⚙️Core structural parameters:

Inner ring: Glass fiber reinforced nylon 66 material (PA66-GF), with a maximum temperature resistance of 120℃, superior to ordinary nylon inner rings in terms of deformation resistance, and compatible with conventional bearing lubricants.

Load characteristics: Capable of withstanding both radial and axial loads. The radial load-bearing capacity is approximately 62% higher than that of single-row bearings, suitable for the complex force environment of steering gears.

Precision grade: Manufactured according to ultra-precision bearing standards, with optimized internal geometry and angle errors controlled within 2 arcs, effectively reducing steering operation noise.

⚙️Technical Parameters:

Product Name	155TN9 Steering Bearing
Size	52x90x24mm
Material	Gcr15(bearing steel)/chrome steel
Weight	0.65KG
Load direction	can withstand radial and axial load
Lead Time	3-5 days
Brand Name	Famous brand/RMO/Neutral/OEM
Shipping Port	Guangzhou, Ningbo, Shanghai
Payment	100% T/T, or 30% T/T In Advance ,70% T/T After Finished Product



⚙️Performance Advantage:

High-speed Adaptation: The optimized cage structure can accommodate the high-frequency steering actions of the steering gear, avoiding the risk of jamming.

Maintenance-Free Feature: Adopting a lifetime lubrication design, no need to regularly replenish lubricants, reducing after-sales costs.

Corrosion Resistance Enhancement: Some models can be customized with stainless steel rings and zinc chromate coatings, suitable for humid or dusty working conditions.



Bearings No.	ID(d*D*H)mm	Weight (KG)
155TN9	52*90*24	0.65
DAC152TN9	50*90*24	0.67
QJ210LB	50*90*20	0.48
BAQ3818E	42*90*20	0.57

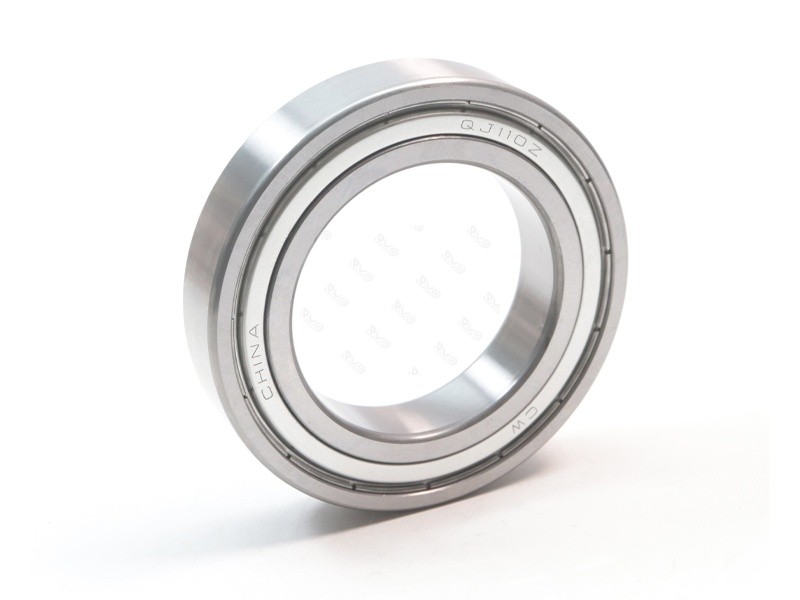

BAQ3922BA(QJ110Z)	50*80*16	0.27
B-DE08A92	40*67*24	0.36
QJ20107(621507)	37*74*18	0.32
LR203-2R5R	17*47*12	0.11
QJ109EZ	40*75*85*16	0.35



⚙️Product Application:

The 155TN9 is mainly designed to fit classic American vehicles, including:

Buick series: Electra, Estate Wagon, Leasable, etc.

Chevrolet series: Caprice, Impala, K5 Blazer, etc.

Cadillac series: Brougham, Fleetwood, etc.

It is also compatible with the full-size sedans and SUVs of brands such as GMC and Oldsmobile for steering systems.

•

  Automotive Steering
•

  Heavy-Duty & Industrial Use
•

  Precision and High-Speed Equipment





⚙️Precautions:

1. Keep clean	2. Use with caution	3. appropriate tool	4. Hot-loading	5. Be careful of rust
Dust will have a bad effect on the bearing, so keep the surrounding clean.	Strong impact during use can easily cause scratches and indentations.	Avoid replacing existing tools, and use appropriate tools.	Bearings are precision parts, so hot installation is recommended.	Sweat on your hands during operation will cause rust, so it is best to wear gloves.
