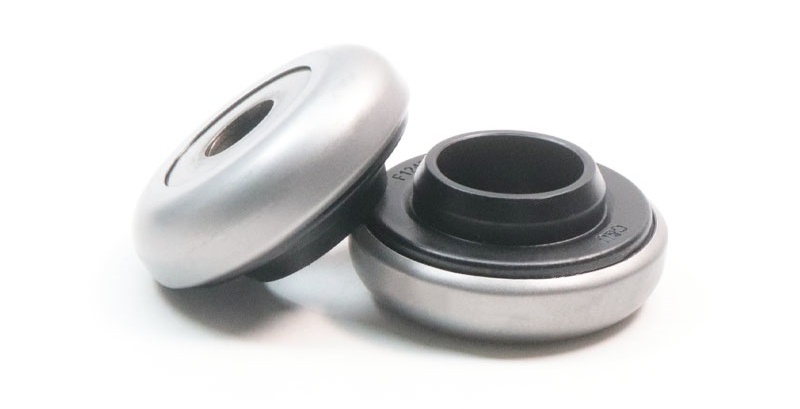

Auto Parts OEM F1245 22113 Automobile Shock Absorber Bearing

Auto Parts OEM F1245 22113 Automobile Shock Absorber Bearing

⚙️Product description:

Automobile shock absorber bearings, as key components in the automotive suspension system, are often referred to as "shock absorber top rubber bearings" or "front shock absorber upper seat bearings". They are mainly installed at the connection point between the top of the shock absorber and the vehicle body (or frame), and are the core components that enable flexible rotation between the shock absorber and the vehicle body and buffer the transmission of vibrations.

⚙️structural composition:

Outer and inner rings: They are mostly made of high-hardness bearing steel materials (such as GCr15), which have excellent wear resistance and impact resistance. The outer ring is generally connected to the upper seat of the shock absorber on the vehicle body, while the inner ring fits with the top of the shock absorber piston rod, providing a stable movement track for the rolling elements.

Rolling elements: The rolling elements are steel balls made of high-strength bearing steel and are the core components for achieving rolling friction. The steel balls roll between the inner and outer rings, converting the relative sliding between the inner and outer rings into rolling, thereby reducing the coefficient of friction.

Cage: Its main function is to evenly separate the rolling elements between the inner and outer rings, prevent the rolling elements from colliding and rubbing against each other, ensure that the rolling elements can move stably and orderly, and at the same time guide the rolling elements to roll within the correct track, thereby enhancing the load-carrying capacity and service life of the bearing.

Sealing parts: It adopts a rubber sealing structure, which can effectively prevent external impurities such as dust, sand and rain from entering the bearing interior, and at the same time prevent the leakage of lubricating grease inside the bearing, ensuring the cleanliness and lubrication effect of the bearing interior and extending the service life of the bearing.

Elastic element: The rubber bushing is integrated around the inner ring of the bearing, featuring excellent elasticity and damping properties. It can further buffer vibration and shock, reduce noise transmission, and at the same time compensate for minor deviations during installation, avoiding stress concentration caused by rigid connections.

⚙️Technical Parameters:

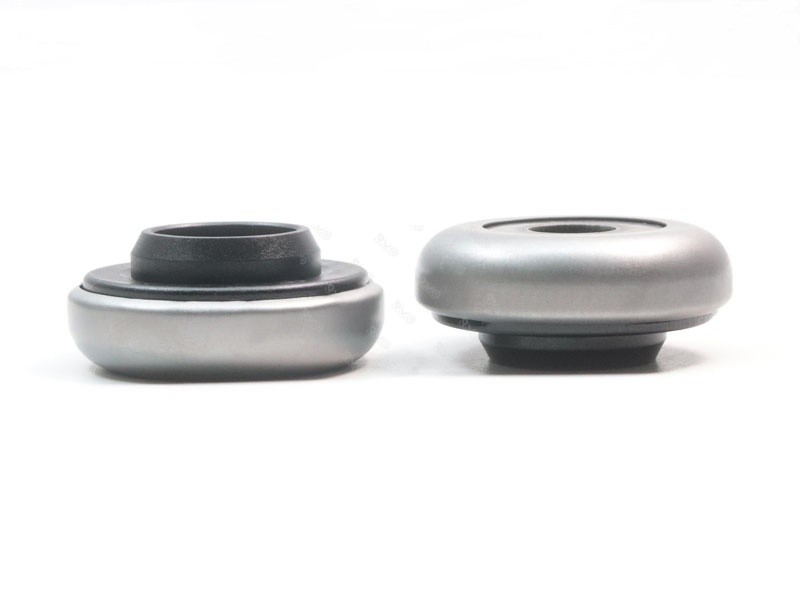

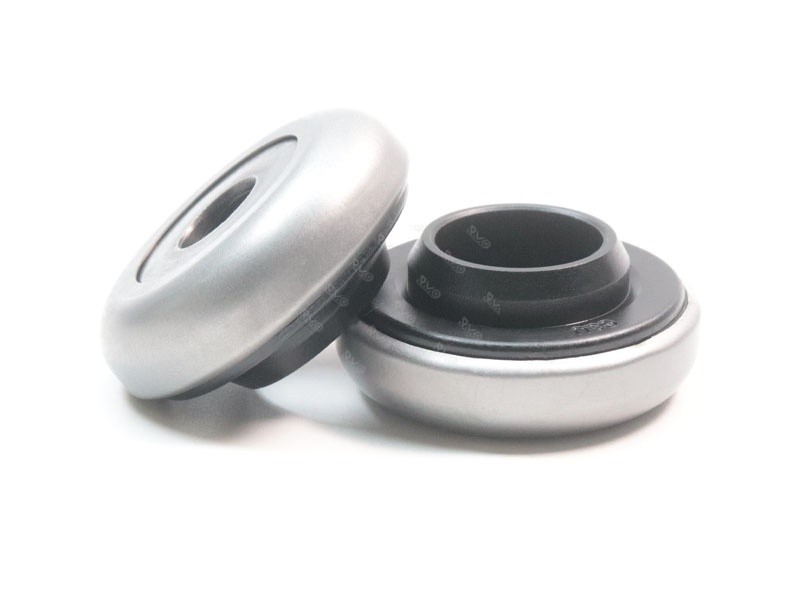

Product Name	OEM F1245 22113 Shock Absorber Bearing

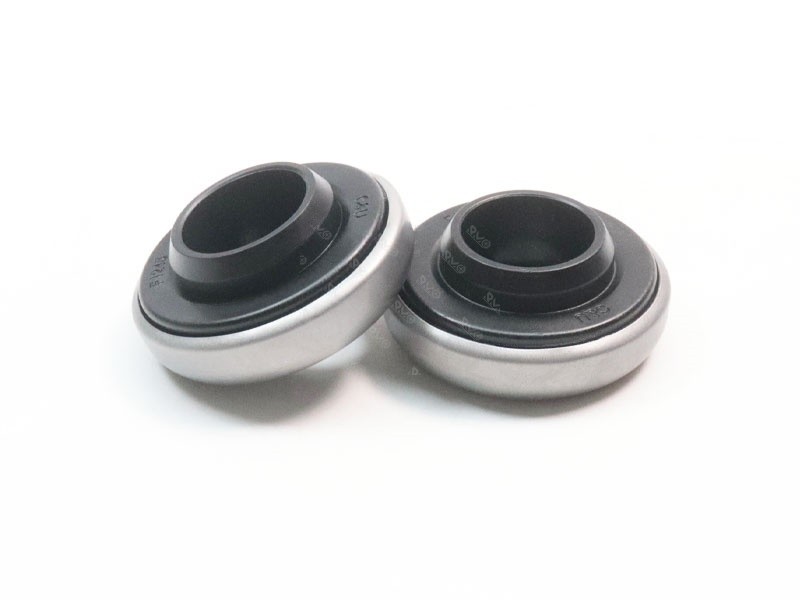

Size	20.3x45.3x19.3mm
Material	Gcr15(bearing steel)/chrome steel
Weight	0.072KG
MOQ	10000 pcs
Lead Time	40-50 days
Brand Name	Famous brand/RMO/Neutral/OEM
Shipping Port	Guangzhou, Ningbo, Shanghai
Payment	100% T/T, or 30% T/T In Advance ,70% T/T After Finished Product



⚙️Core function:

Achieve flexible rotation: When a car turns, the shock absorber needs to rotate at a certain Angle along with the wheels. The shock absorber bearing converts the sliding friction between the shock absorber and the vehicle body into rolling friction through the rolling of the internal rolling elements, significantly reducing the frictional resistance. This ensures that the steering operation is light and smooth, avoiding steering jamming or heavy situations, and guarantees the driver's precise control of the vehicle.

Buffering vibration and shock: When a car is traveling on a bumpy road, shock absorbers generate high-frequency vibration and shock. The elastic elements inside the shock absorber bearings (such as rubber bushings) can effectively absorb part of the vibration energy, reduce the transmission of vibration to the vehicle body, lower the noise inside the car, enhance the comfort of drivers and passengers, and at the same time prevent severe vibration from causing damage to other parts of the vehicle body.

Load-bearing and positioning: It needs to withstand the vertical loads transmitted by the shock absorbers (including the weight of the vehicle body and dynamic loads during driving), and precisely position the shock absorbers to ensure that they always maintain the correct installation Angle and position during operation, preventing the shock absorbers from affecting their working performance due to displacement or even causing other faults in the suspension system.

•

  Shock Absorber Bearing
•

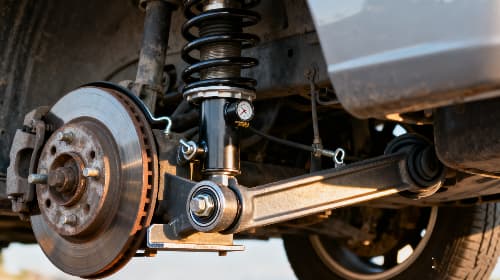

  top rubber bearings
•

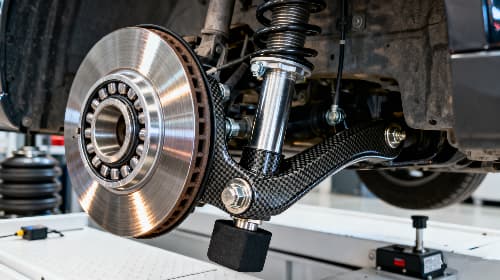

  front shock absorber bearing





⚙️Precautions:

1. Keep clean	2. Use with caution	3. appropriate tool	4. Hot-loading	5. Be careful of rust
Dust will have a bad effect on the bearing, so keep the surrounding clean.	Strong impact during use can easily cause scratches and indentations.	Avoid replacing existing tools, and use appropriate tools.	Bearings are precision parts, so hot installation is recommended.	Sweat on your hands during operation will cause rust, so it is best to wear gloves.
