Item No :
B-DE08A92Size (d*D*B) :
40x67x24mmMaterial :
Gcr15(bearing steel)/chrome steelBrand :
famous brand/RMO/Neutral/OEMLead Time :
3-5 daysWeight :
0.36KGMOQ :
10 pieces (support sample trial)Service :

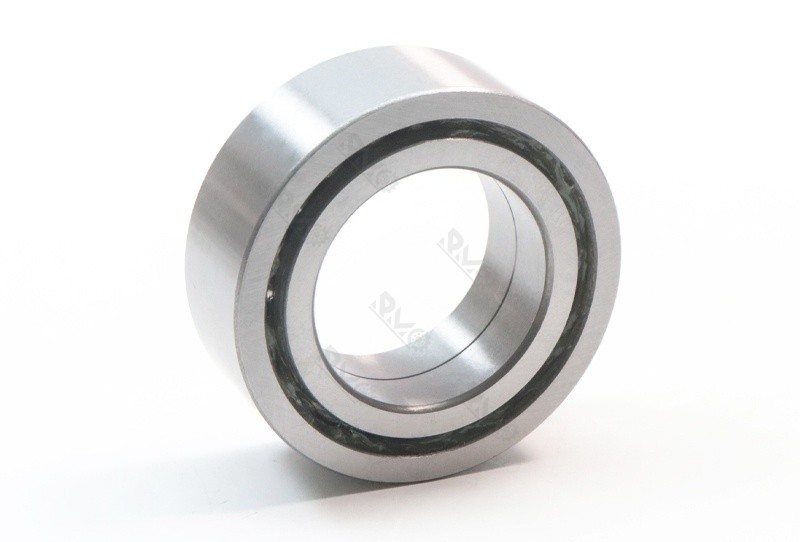

OEM/ODM40x67x24mm B-DE08A92 Automotive Steering Gearbox Bearing
⚙️Product Working principle:
B-DE08A92 is a car steering gear bearing. Its core working principle is based on replacing sliding friction with rolling friction. The inner ring mates with the steering shaft through interference fit and rotates along with the shaft. The outer ring is fixedly installed on the steering column tube or gearbox body and does not move. The rolling elements roll between the inner and outer raceways, reducing friction. The cage evenly separates the rolling elements to prevent direct contact.
| Product Name | B-DE08A92 Auto Steering Gearbox Bearing |
| Size | 40x67x24mm |
| Material | Gcr15(bearing steel)/chrome steel |
| Weight | 0.36KG |
| Load direction | Centripetal bearing, can withstand radial and certain axial load |
| Lead Time | 3-5 days |
| Brand Name | Famous brand/RMO/Neutral/OEM |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% T/T, or 30% T/T In Advance ,70% T/T After Finished Product |
As an important component in the automotive steering system, the B-DE08A92 bearing is mainly used to support the rotating parts in the steering wheel or steering mechanism, such as gears and shafts. It can withstand various loads exerted by the rotating parts, including radial loads and axial loads. At the same time, it can reduce friction and wear, ensuring the flexibility and accuracy of steering, and playing a role in shock absorption and noise reduction.
| Bearings No. | ID(d*D*H)mm | Weight (KG) |
| CW155TN9 | 52*90*24 | 0.65 |
| DAC152TN9 | 50*90*24 | 0.67 |
| QJ210LB | 50*90*20 | 0.48 |
| BAQ3818E | 42*90*20 | 0.57 |
| BAQ3922BA(QJ110Z) | 50*80*16 | 0.27 |
| B-DE08A92 | 40*67*24 | 0.36 |
| QJ20107(621507) | 37*74*18 | 0.32 |
| LR203-2R5R | 17*47*12 | 0.11 |
| QJ109EZ | 40*75*85*16 | 0.35 |
Compatible vehicle models: This bearing is suitable for the steering gears of vehicles such as the SPIRIOR and Mazda RUIYI, etc.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
