Item No :
1206EMaterial :
chrome steel GCR15Cage material :
steel or synthetic resinBrand :
Famous brand/RMO/Neutral/OEM&ODMSealing :
OPENLead Time :
normally 3-5 daysMOQ :

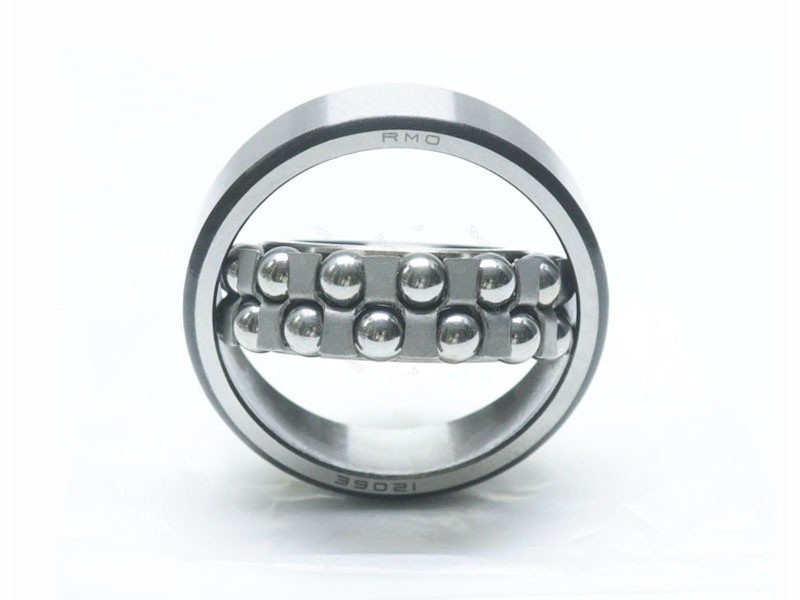

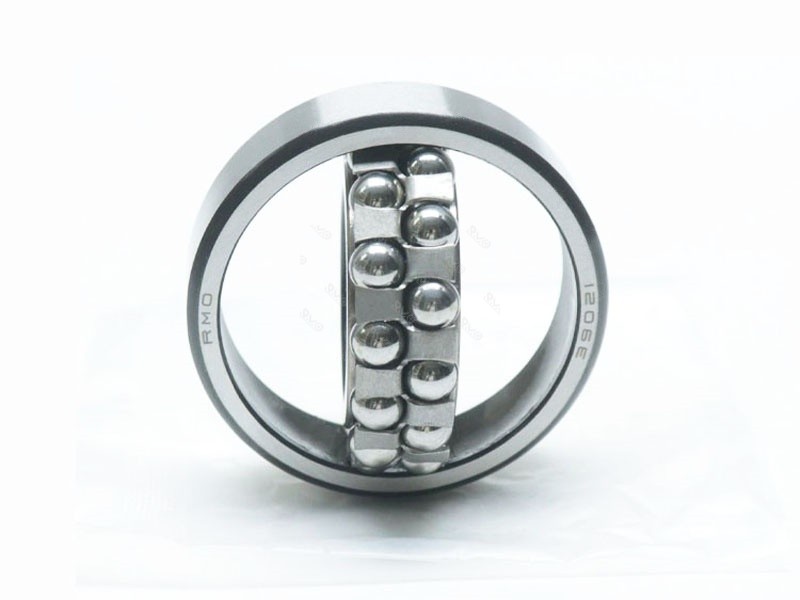

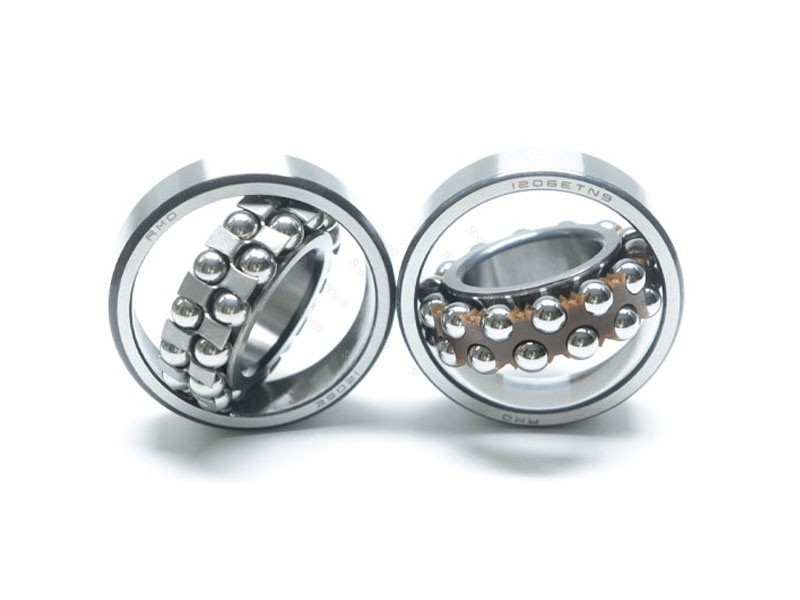

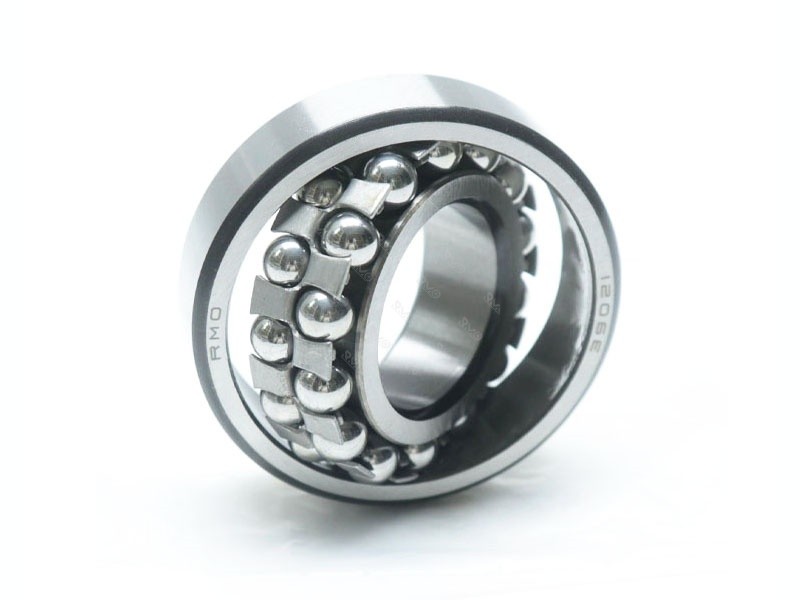

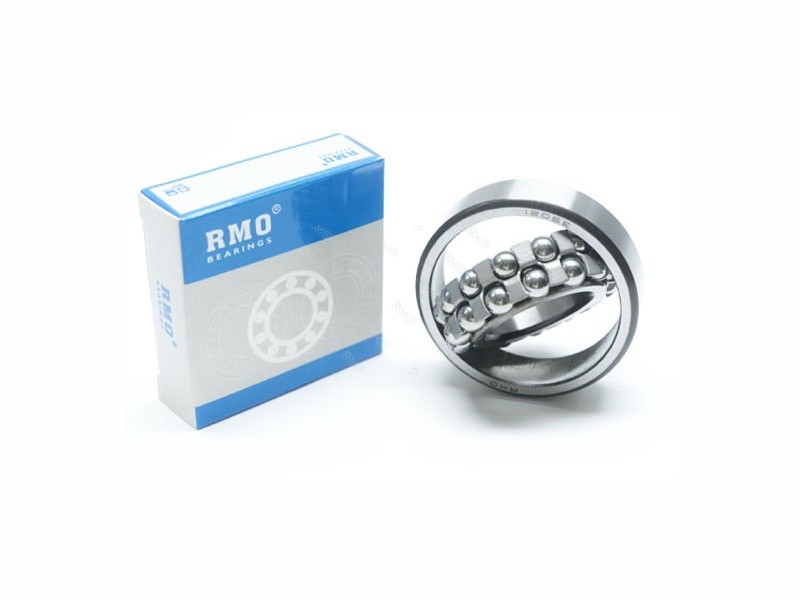

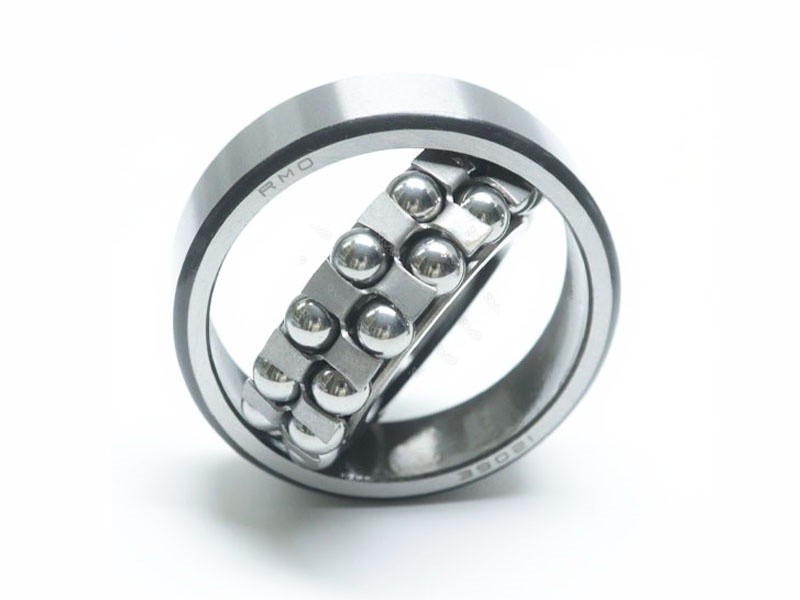

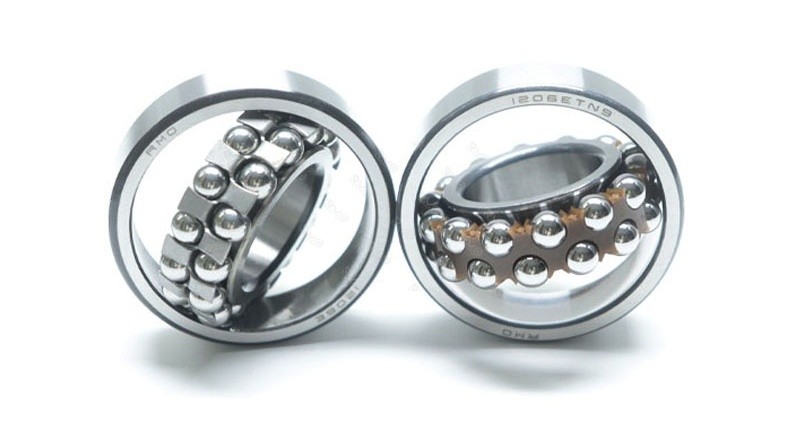

100pcs1206E Double Row Self-Aligning Ball Bearing
⚙️Product description:
The 1206E self-aligning ball bearing is a double-row bearing with compact structure and reliable performance. It is made of high-quality GCr15 chrome steel and has excellent wear resistance and service life. The inner diameter of this type of bearing is 30mm, the outer diameter is 62mm, the width is 16mm, and the weight is about 0.227KG. The structural design includes two forms of cylindrical hole and tapered hole to adapt to different installation requirements. The cage material can be selected from steel plate or synthetic resin to adapt to different working conditions.
The biggest feature of this bearing is that its outer ring raceway is a spherical structure with automatic self-aligning function, which can effectively compensate for the misalignment of the shaft centerline caused by the machining error or installation deviation of the shaft or seat hole, thereby ensuring the stability of the bearing operation. This structure is particularly suitable for bearing large radial loads and a certain degree of axial loads, and has good adaptability to impact loads.
Model No. | 1206E |
Size | 30x62x16mm |
Weight | 0.227KG |
Branding | Famous brand/RMO/Neutral/OEM&ODM |
Sealing | OPEN |
Material | chrome steel GCR15 |
Payment | 100% T/T, or 30% T/T in advance ,70% T/T after finished production |
Micro series | 10x, 12x, 13x |
General series | 12xx, 13xx, 22xx, 23xx |
Lead Time | normally 3-5 days |
Shipping Port | Guangzhou, Ningbo, Shanghai |
Cage material | steel or synthetic resin |
MOQ | 100pcs |
1.The raceway of the outer ring of the spherical ball bearing is part of the spherical surface, and its center of curvature is located on the axis of the bearing, which enables the bearing to have the function of self-aligning. When the shaft and housing are bent, the bearing can automatically adjust without increasing its own load.
2.These bearings can withstand radial loads in both directions as well as appropriate axial loads, but cannot withstand torque loads. Because the contact angle of self-aligning ball bearings is small, and the contact angle is almost unchanged under the action of axial load, so its axial load carrying capacity is weak and radial load carrying capacity is strong, which is suitable for the working condition of heavy load and shock load.
3.Double-row self-aligning ball bearings can be mounted at any position of the optical axis without locating shoulder after matching with the tightening sleeve and lock nut.
Aligning ball bearings are great for heavy and impact loads. They're used in precision instruments, quiet motors, cars, motorcycles, and various industries like metallurgy, rolling mills, mining, oil, paper production, cement, sugar pressing, and general machinery.
1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
