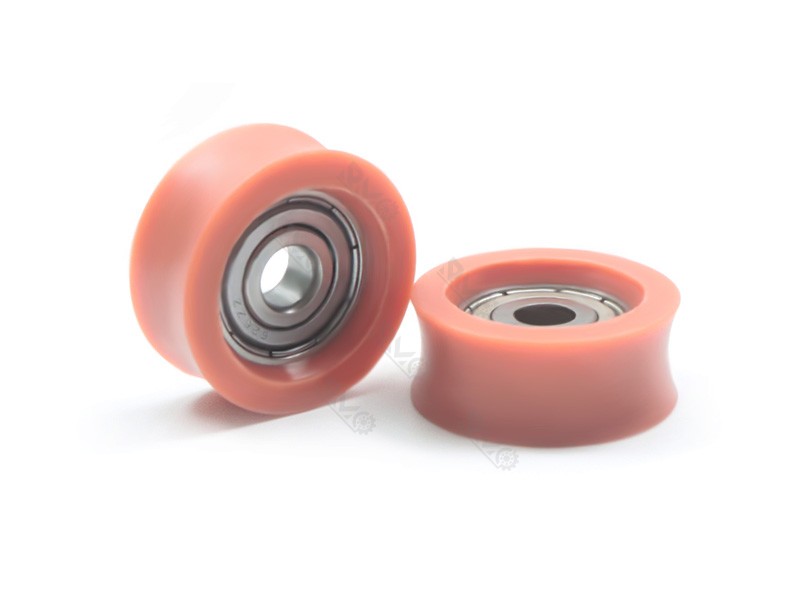

Custom PA6 Nylon U-Groove Guide Roller with 6x19x6mm Bearing for Sliding Doors

Custom PA6 Nylon U-Groove Guide Roller with 6x19x6mm Bearing for Sliding Doors

⚙️Product Description:

This U-Groove Pulley Wheel is specifically engineered for applications demanding low noise, lightweight, and wear-resistant performance. It perfectly integrates a high-strength PA6 Nylon (Polyamide 6) housing with a pre-installed 626ZZ deep groove ball bearing.

The PA6 Nylon Housing: The nylon material offers exceptional impact resistance, self-lubricating properties, and corrosion resistance, making it ideal for humid environments or frequent cycling applications. The U-groove design provides precise guidance for wire ropes, cables, or round tracks, ensuring smooth, non-jerky movement.

The Built-in 626ZZ Bearing: The 626ZZ bearing (6mm ID, 19mm OD, 6mm Width) utilizes double metal shields (ZZ) to effectively block dust ingress, maintaining the roller's low friction and high rotational accuracy over time.

⚙️Technical Parameters:

Product Name	626ZZ bearing U-Groove nylon pulley

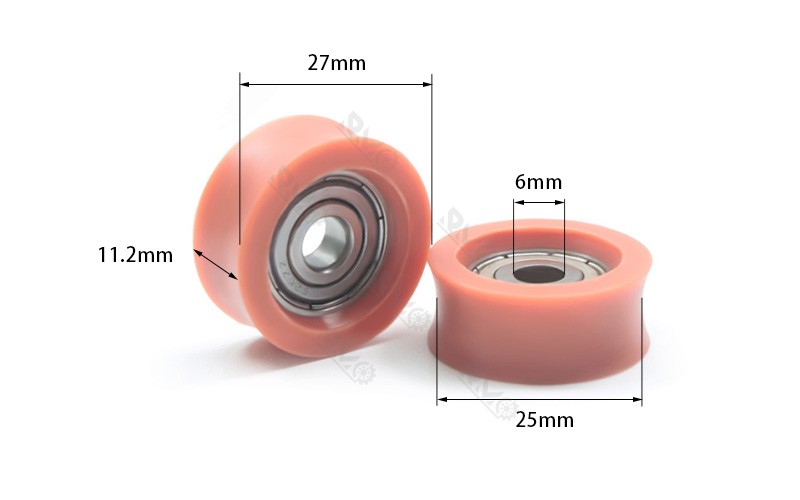

Size	6X27x11.2x25mm
Groove Type	U type
Bearing Material	Chrome Steel
Pulley Material	Nylon PA6
Lead Time	20-25 days
Max Load Capacity	Approx. 40KG (Actual load capacity is dependent on the bearing specifications and operating conditions)
Shipping Port	Guangzhou, Ningbo, Shanghai
Payment	100% T/T, or 30% T/T In Advance ,70% T/T After Finished Production





⚙️Key Features & Benefits:

Ultra-Quiet Operation: The nylon material effectively dampens vibration, resulting in significantly lower operating noise compared to metal pulleys.

Durable & Maintenance-Free: The PA6 material is wear-resistant and self-lubricating; coupled with the ZZ shielded bearing, it ensures long-term, maintenance-free use.

Lightweight Design: Reduces the overall weight of the equipment, contributing to energy efficiency.



⚙️Common Applications:

This Nylon U-Groove Pulley is an ideal component for various guiding and load-bearing systems, widely used in: Industrial Sliding Doors, Fitness Equipment Pulley Systems, Automation Machinery, Curtain Tracks, and Light-Duty Hoisting/Conveying equipment.

•

  nylon pulleys for sliding door
•

  nylon pulleys for cabinets
•

  nylon pulleys for fitness equipment





⚙️Precautions:

1. Keep clean	2. Use with caution	3. appropriate tool	4. Hot-loading	5. Be careful of rust
Dust will have a bad effect on the bearing, so keep the surrounding clean.	Strong impact during use can easily cause scratches and indentations.	Avoid replacing existing tools, and use appropriate tools.	Bearings are precision parts, so hot installation is recommended.	Sweat on your hands during operation will cause rust, so it is best to wear gloves.
