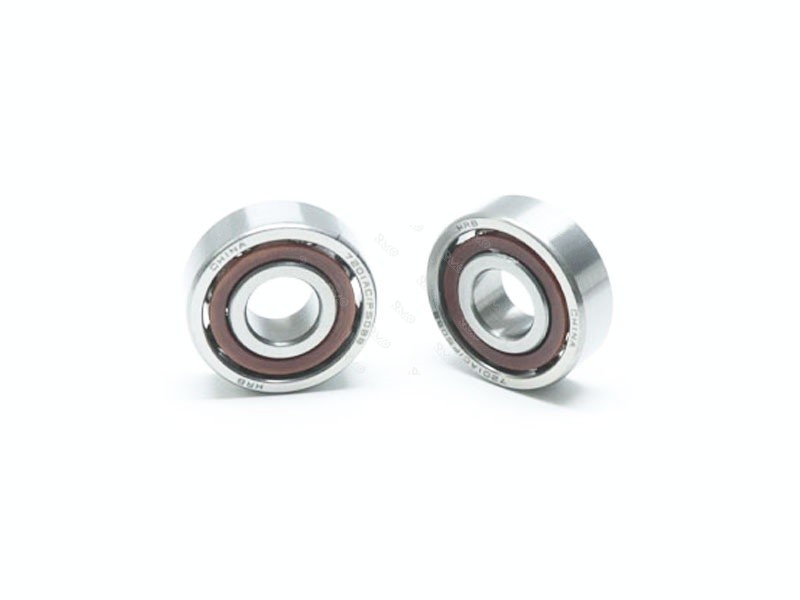

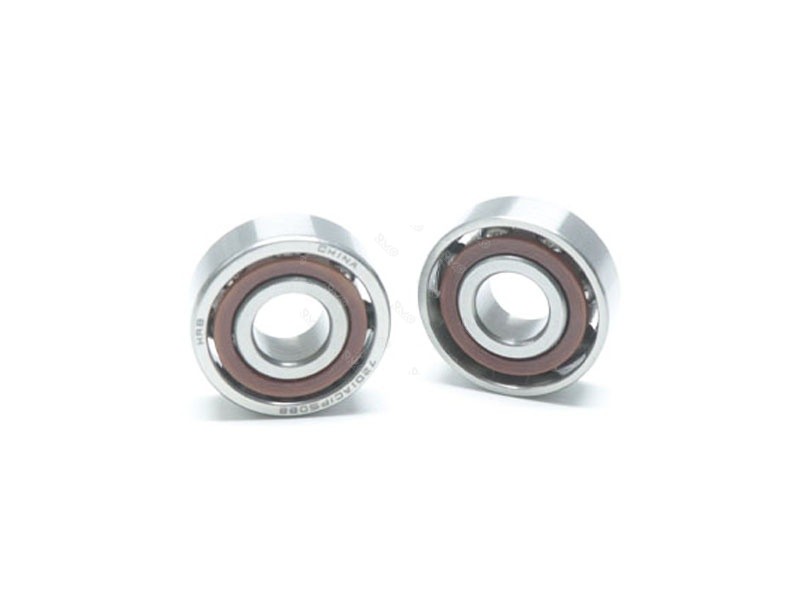

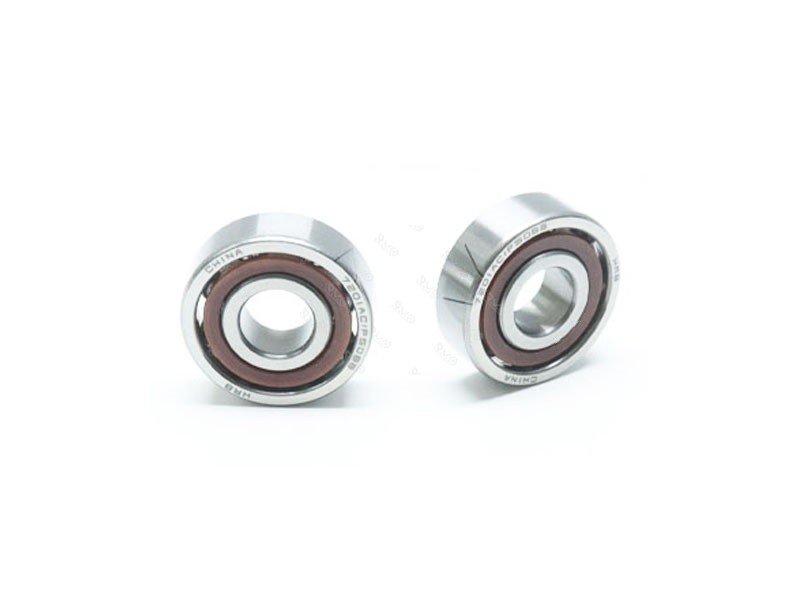

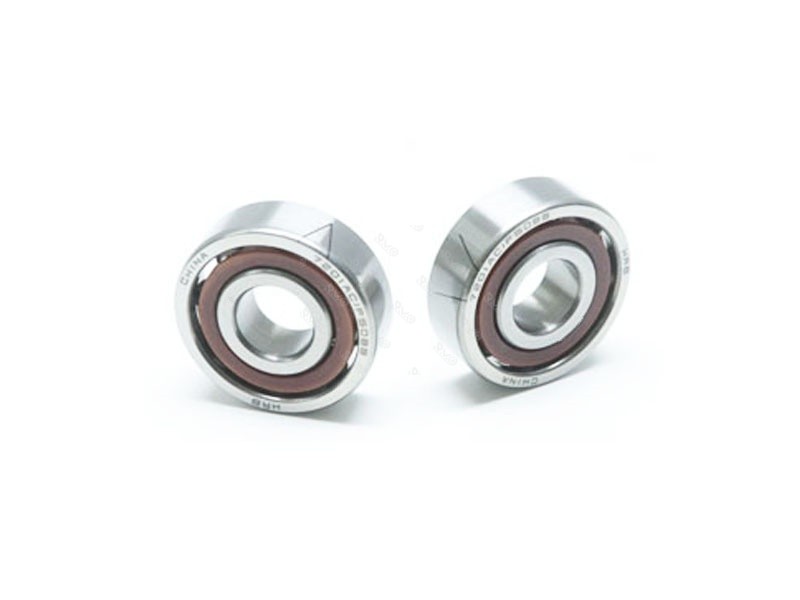

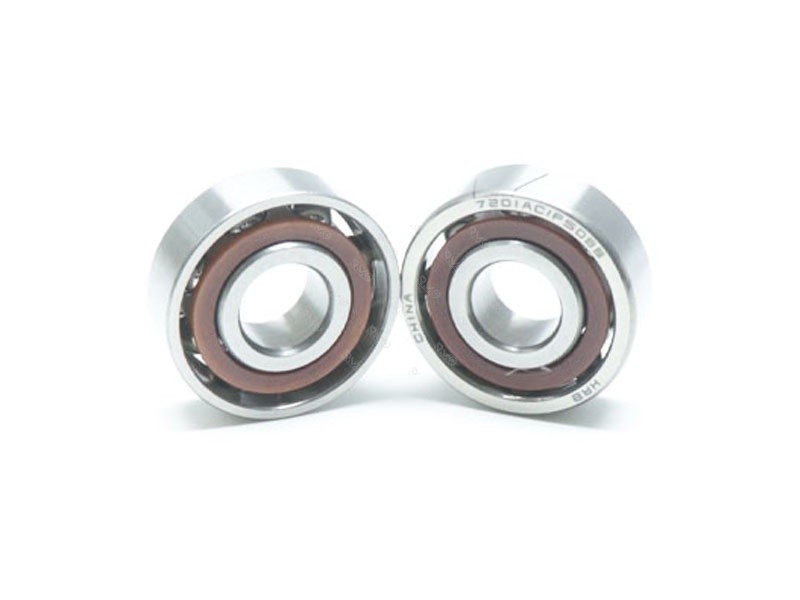

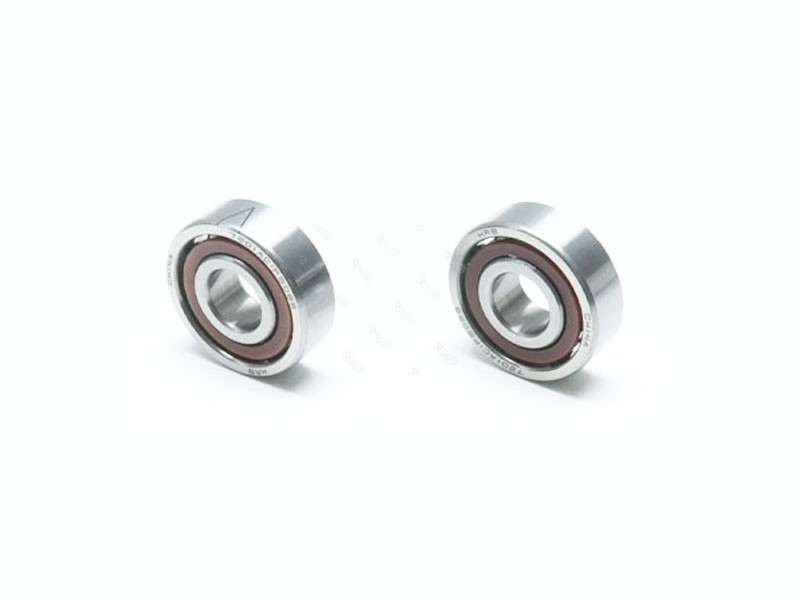

Heavy Duty High Accuracy Double Back-to-Back 7201AC Angular Contact Ball Bearing

Heavy Duty High Accuracy Double Back-to-Back 7201AC Angular Contact Ball Bearing

share :
Heavy Duty Angular Contact Ball Bearing
Double Back-to-Back Precision Bearings
High Accuracy Angular Contact Bearings
Double Back-to-Back Angular Contact Ball Bearing
Angular Contact Ball Bearing
7201AC Angular Contact Ball Bearing
  • Item No :

    7201AC
  • Size (d*D*B) :

    12*32*20mm
  • Material :

    Gcr15.chrome steel
  • Weight :

    0.007KG
  • Service :

    OEM/ODM
  • Shipping Port :

    Guangzhou City, Guangdong, China

Heavy Duty High Accuracy Double Back-to-Back 7201AC Angular Contact Ball Bearing



⚙️Product description:

The angular contact ball bearing is a high-precision angular contact ball bearing with a double back-to-back (DBB) structure. It is made of GCr15 chrome steel and has excellent wear resistance and thermal stability. The bearing has a compact design, but performs well in load capacity and operating performance. Compared with traditional single-row angular contact bearings, 7201AC is composed of two sets of back-to-back paired bearings, with the wide faces of the bearings facing each other to form a double support structure. This layout significantly improves the rigidity and preload distribution of the bearing system, allowing it to maintain excellent stability and precision under conditions of large axial force, overturning moment or high-speed operation.


Heavy Duty Angular Contact Ball Bearing



⚙️Technical Parameters:

Product name bearing 7201AC P5DBB 7201AC 7201
Size 12*32*20mm
Quality P5 grade
Materials Gcr15.chrome steel
Weight 0.007KG
Package Plastic Tube/single box+Carton+Pallet
Service OEM/ODM
Country of origin Guangzhou City, Guangdong, China
Small order accept
Angular contact ball bearing types 7000C (∝=15°), 7000AC (∝=25°) and 7000B(∝=40°).
Accuracy level P0(common), P6(P6X), P5, P4, P2



⚙️Product Advantages:

1. This type of bearing adopts a back-to-back (DB) arrangement and is composed of two sets of bearings. Each pair of DB bearings is installed with wide end faces facing each other, and the structure is stable. When the two sets of DB pairs are further combined into a DBB structure, a double support system is formed. In this way, the force points are distributed more widely, and the system rigidity and preload are about twice as high as a single DB combination, which is particularly suitable for working conditions with high load and precision requirements.

2. Enhanced load capacity. Since the load is shared by four rows of bearings, the stress on a single bearing is significantly reduced, and the overall life is also extended.

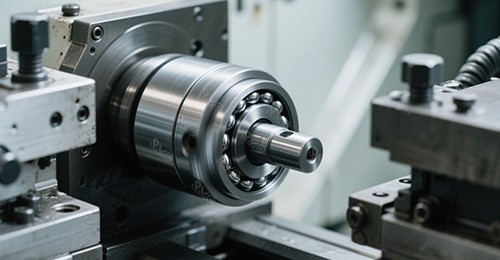

3. This structure performs particularly well in equipment that requires high rigidity and high loads, such as large industrial machinery, heavy machine tools, etc. They also play a key role in precision machining center spindles that are subject to large axial forces or overturning moments.



⚙️Product Application:

Single-row angular contact ball bearings are widely used and are commonly found in machine tool spindles, high-frequency motors, gas turbines, centrifugal separation equipment, and front wheel systems of small cars. In addition, they are also often used in various types of mechanical equipment such as differential pinion shafts, booster pumps, offshore drilling platforms, food processing machinery, dividing heads, welding equipment, low-noise cooling towers, electrical machinery equipment, spraying systems, machine slot plates, and arc welding machines.

  • #
  • #
  • #



⚙️Precautions:

1. Keep clean 2. Use with caution 3. appropriate tool 4. Hot-loading 5. Be careful of rust
Dust will have a bad effect on the bearing, so keep the surrounding clean. Strong impact during use can easily cause scratches and indentations. Avoid replacing existing tools, and use appropriate tools. Bearings are precision parts, so hot installation is recommended. Sweat on your hands during operation will cause rust, so it is best to wear gloves.



⚙️Obtain Certificate:

About Rimao
Since its establishment in 2011, Rimao Bearing has combined international vision with local wisdom and injected innovative ideas into every bearing and pulley with its profound industry accumulation and unremitting pursuit of technology. We have not only passed CE and ROHS certification, but also set a new benchmark in the industry and led the development trend of the bearing industry.

We are not just a ball bearing and roller bearing importer and wholesaler. We provide real solutions to help you achieve the product and design goals set by your customers. With more than 20 years of production and sales experience, tens of thousands of models and specifications, we look forward to cooperating with you!
