Item No :
24377-2RSSize (d*D*B) :
24x37x7mmMaterial :
Chrome steel Gcr15Lead Time :
Normally 3-5 daysWeight :
0.019KGPayment Terms :
100% T/T or 30% T/T in advance ,70% before deliveryShipping Port :

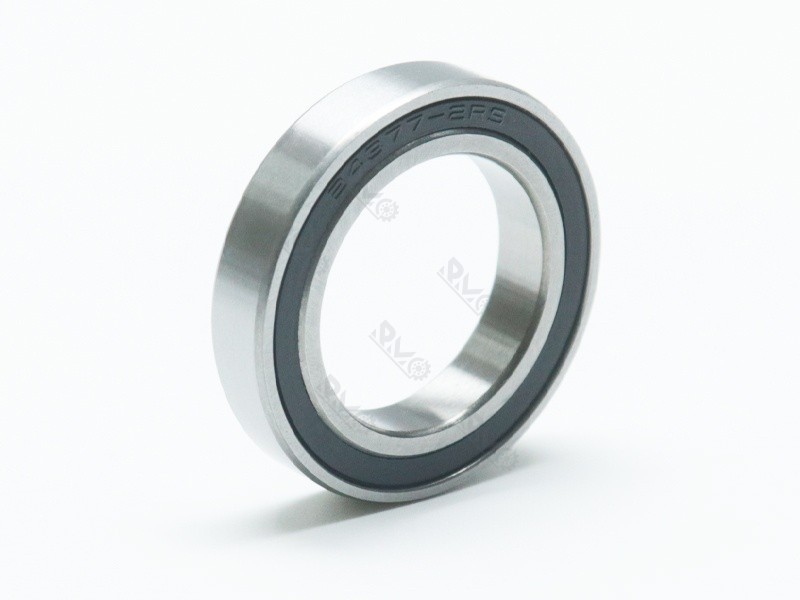

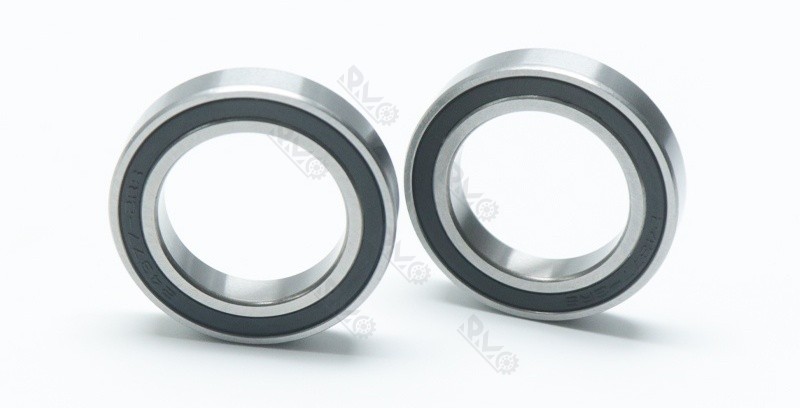

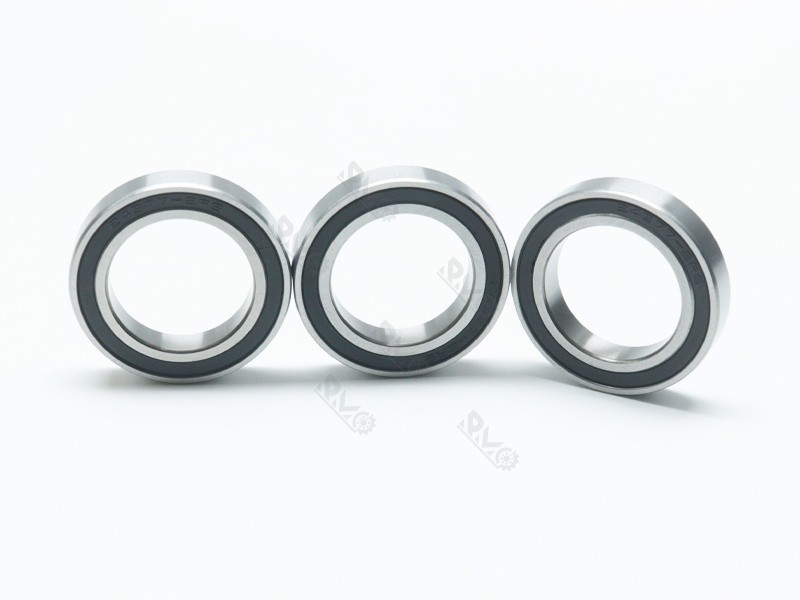

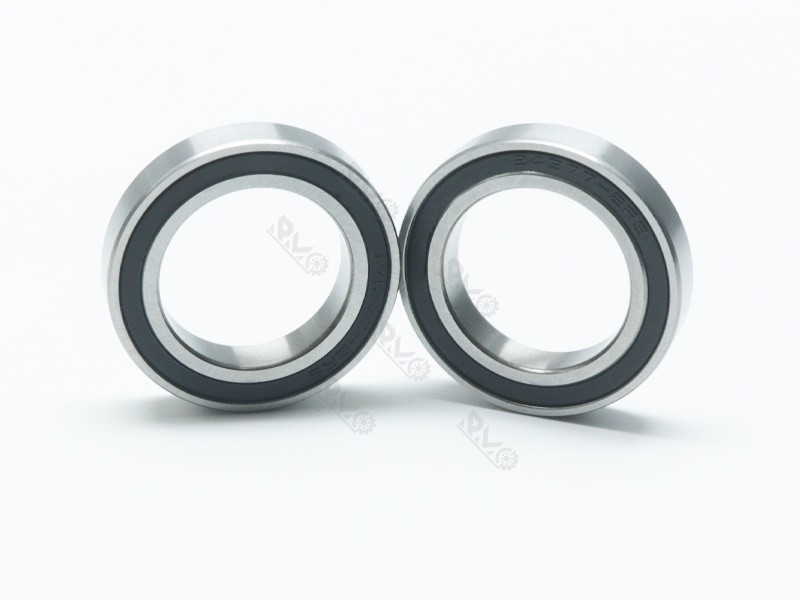

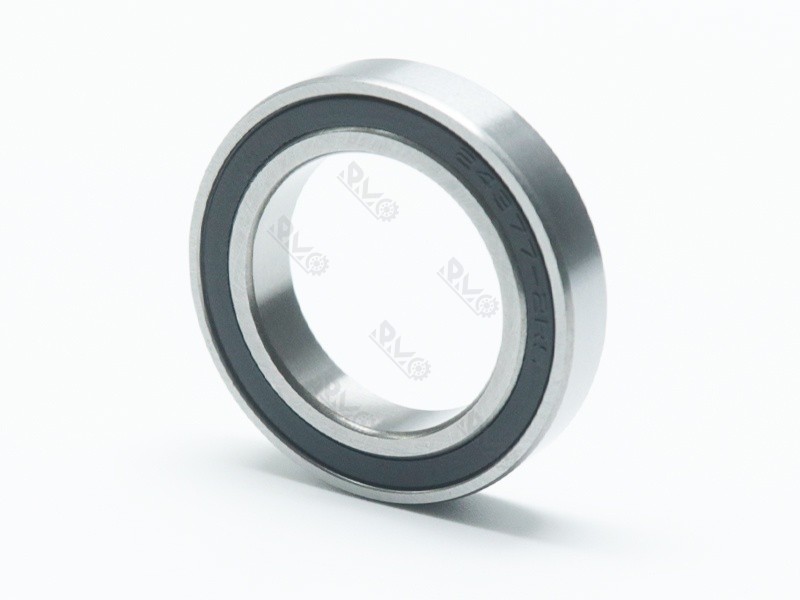

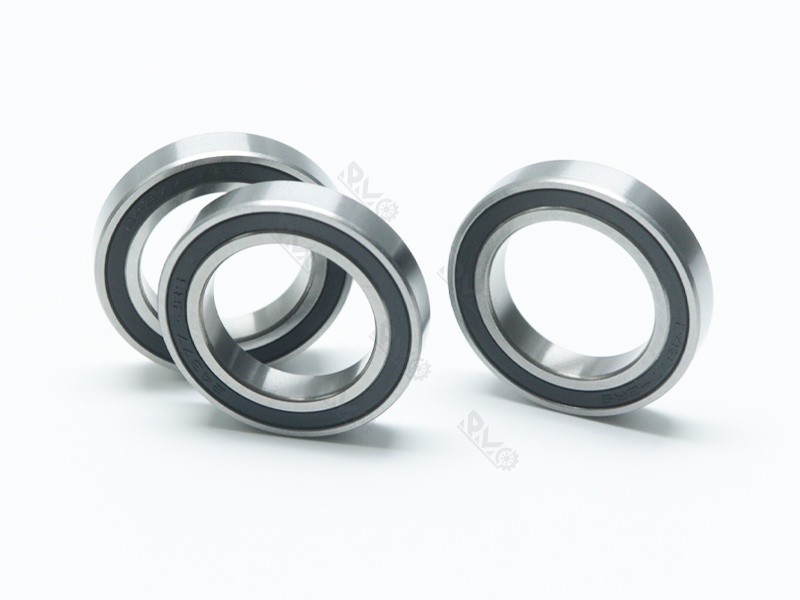

Guangzhou, Ningbo, ShanghaiDurable 24377-2RS Sealed Bearing 24x37x7 mm Bicycle BB Bearing
⚙️Product Description:
24377-2RS sealed deep groove ball bearing 24x37x7 mm for bicycle bottom brackets, small motors and compact transmission applications. Durable, low noise and pre-lubricated.
⚙️Technical Parameters:
|
Item No. |
24377-2RS |
|
Branding |
Famous brand/RMO/Neutral/OEM |
|
Seal Type |
Open, ZZ, 2RS |
|
Material |
Stainless steel (420 440C 304 316), chrome steel Gcr15, hybrid ceramic, full ceramic. |
|
Lead Time |
3-5 days |
|
Precision |
p0 p6 p5 p4 |
| Clearance | C2 C0 C3 C4 |
|
Vibration |
Z1V1, Z2V2, Z3V3 |
|
Cage Material |
Steel, nylon, copper |
|
Shipping Port |
Guangzhou, Ningbo, Shanghai |
|
Payment |
100% T/T, or 30% T/T In Advance ,70% T/T After Finished Production |
⚙️Main Features:
• Double rubber seals for dust and moisture protection
• Pre-lubricated and maintenance-free operation
• Made of premium bearing steel with improved wear resistance
• Smooth rotation with low friction, ideal for high-speed operation
• Compact size 24×37×7 mm for limited installation space
• Better sealing performance than metal shield (ZZ) versions
| Bearings No. | d*D*H(mm) | WT(KG) | Bearings No. | d*D*H(mm) | WT(KG) |
| 12267RS | 12*26*7 | 0.0151 | 19307RS | 19*30*7 | 0.0234 |
| 15267RS | 15*26*7 | 0.0124 | 190537RS | 19.05*37*9 | 0.004 |
| 152610RS | 15*26*10 | 0.012 | 19317RS | 19*31*7 | 0.023 |
| 16257RS | 16*25*7 | 0.014 | 19379RS | 19*37*9 | 0.037 |
| 16287RS | 16*28*7 | 0.014 | 22317RS | 22*31*7 | 0.032 |
| 17287RS | 17*28*7 | 0.0131 | 22379RS | 22*37*9 | 0.037 |
| 163110RS | 16*31*10 | 0.0258 | 215317RS | 21.5*31*7 | 0.014 |
| 173110RS | 17*31*10 | 0.0254 | 24377RS | 24*37*7 | 0.019 |
| 6805-RD | 25*37*6 | 0.02 | 24378RS | 24*37*8 | 0.0232 |
| 30406RS | 30*40*6 | 0.018 | 18338RS | 18*33*8 | 0.023 |
• Bicycle bottom brackets (BB)
• E-bike and pedelec systems
• Scooters and electric boards
• Small electric motors and DC motors
• Rollers and pulley mechanisms
• Light-duty transmission assemblies
• Industrial sealed bearing replacement
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
